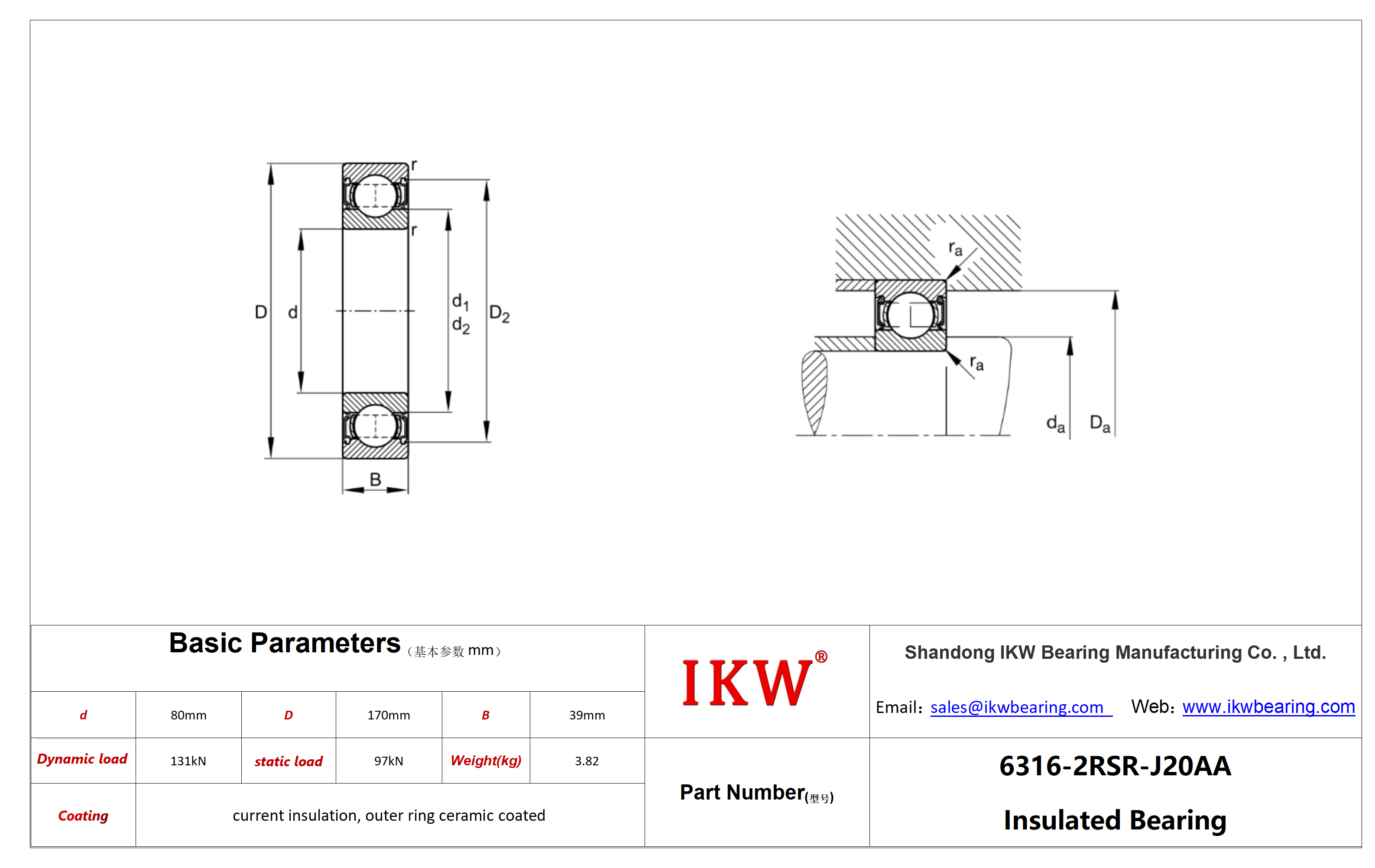

| Product Number | 6316-2RSR-J20AA Bearing |
| Bore diameter(d) | 80 mm |
| Bore diameter(d) | 80 mm |
| Outside diameter(D) | 170 mm |
| Outside diameter(D) | 170 mm |
| Width(B) | 39 mm |
| Width(B) | 39 mm |
| Basic dynamic load rating(Cr) | 131.000 N |
| Basic dynamic load rating(Cr) | 131.000 N |
| Basic static load rating(Cor) | 87.000 N |
| Basic static load rating(Cor) | 87.000 N |
| Limiting speed(nG) | 2.470 1/min |
| Limiting speed(nG) | 2.470 1/min |
| Weight(mass) | 3,82 kg |
| Weight(mass) | 3,82 kg |
| Cage | JN |
| Cage | JN |
| Lubricant | GA13 |
| Lubricant | GA13 |
| Radial internal clearance | CN |
| Radial internal clearance | CN |
| Coating | J20AA |
| Coating | J20AA |
| da | 92 mm |
| da | 92 mm |
| Da | 158 mm |
| Da | 158 mm |
6316-2RSR-J20AA Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6316.2RSR.J20AA bearing
