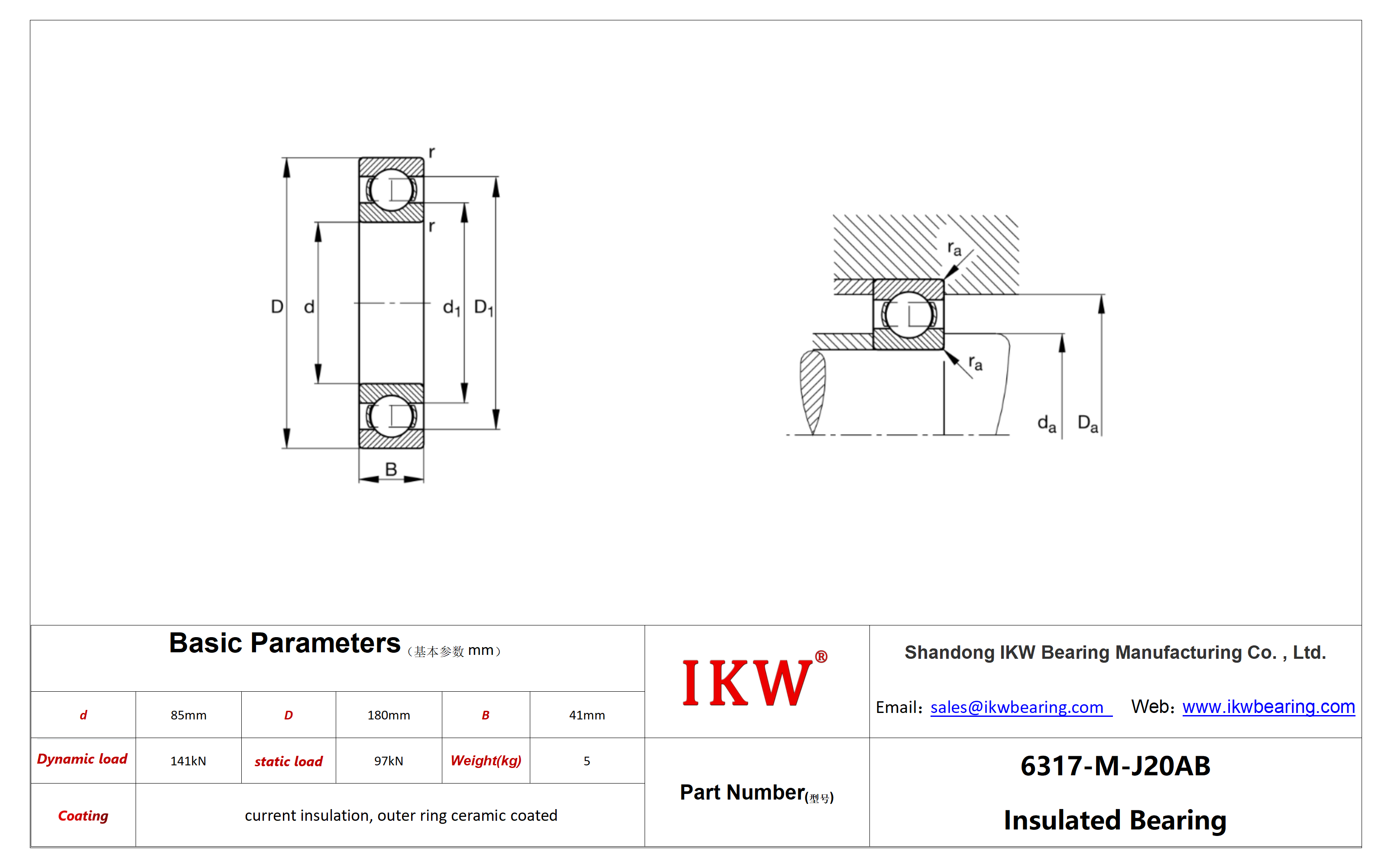

| Product Number | 6317-M-J20AB Bearing |
| Bore diameter(d) | 85 mm |
| Outside diameter(D) | 180 mm |
| Width(B) | 41 mm |
| Basic dynamic load rating(Cr) | 141.000 N |
| Basic static load rating(Cor) | 97.000 N |
| Limiting speed(nG) | 6.600 1/min |
| Reference speed(nϑr) | 5.300 1/min |
| Weight(mass) | 5 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20AB |
| da | 99 mm |
| Da | 166 mm |
6317-M-J20AB Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6317.M.J20AB bearing
