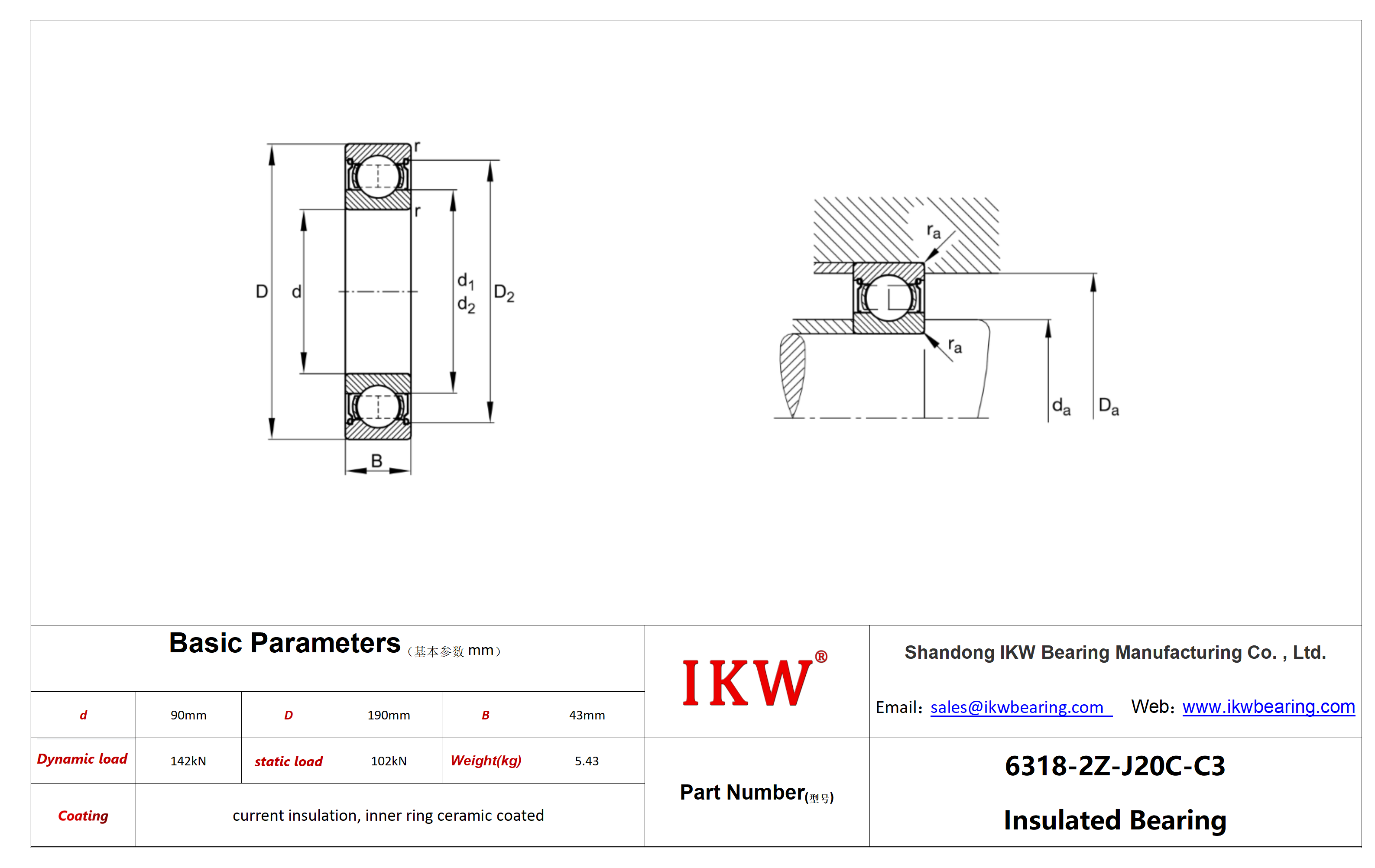

| Product Number | 6318-2Z-J20C-C3 Bearing |
| Bore diameter(d) | 90 mm |
| Outside diameter(D) | 190 mm |
| Width(B) | 43 mm |
| Basic dynamic load rating(Cr) | 142.000 N |
| Basic static load rating(Cor) | 102.000 N |
| Limiting speed(nG) | 4.150 1/min |
| Reference speed(nϑr) | 5.100 1/min |
| Weight(mass) | 5,43 kg |
| Cage | JN |
| Lubricant | GA13 |
| Radial internal clearance | C3 |
| Coating | J20C |
| da | 104 mm |
| Da | 176 mm |
6318-2Z-J20C-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6318.2Z.J20C.C3 Bearing
