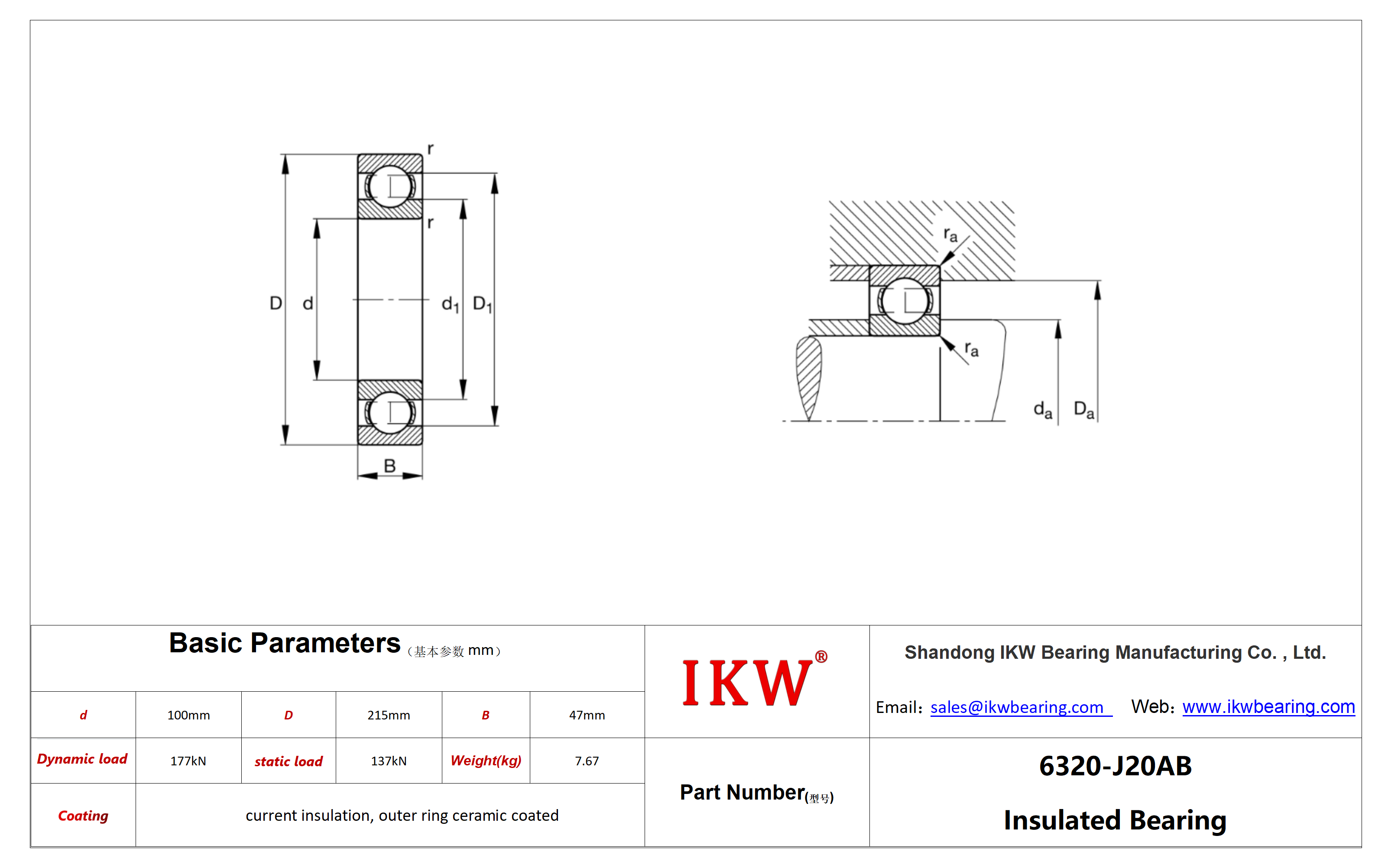

| Product Number | 6320-J20AB Bearing |
| Bore diameter(d) | 100 mm |
| Bore diameter(d) | 100 mm |
| Outside diameter(D) | 215 mm |
| Outside diameter(D) | 215 mm |
| Width(B) | 47 mm |
| Width(B) | 47 mm |
| Basic dynamic load rating(Cr) | 177.000 N |
| Basic dynamic load rating(Cr) | 177.000 N |
| Basic static load rating(Cor) | 137.000 N |
| Basic static load rating(Cor) | 137.000 N |
| Limiting speed(nG) | 4.250 1/min |
| Limiting speed(nG) | 4.250 1/min |
| Reference speed(nϑr) | 4.600 1/min |
| Reference speed(nϑr) | 4.600 1/min |
| Weight(mass) | 7,67 kg |
| Weight(mass) | 7,67 kg |
| Cage | JN |
| Cage | JN |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | CN |
| Radial internal clearance | CN |
| Coating | J20AB |
| Coating | J20AB |
| da | 114 mm |
| da | 114 mm |
| Da | 201 mm |
| Da | 201 mm |
6320-J20AB Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6320.J20AB bearing
