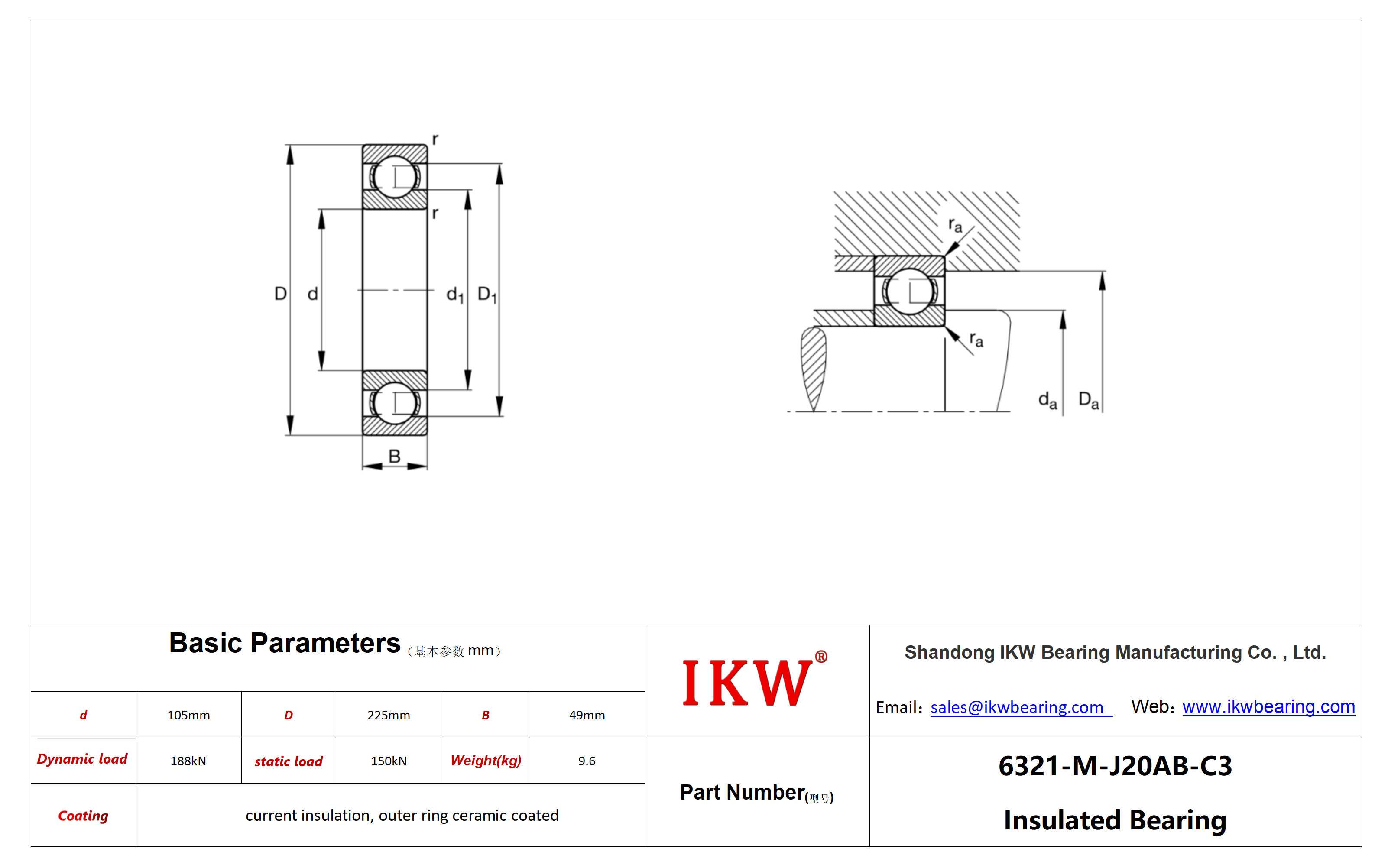

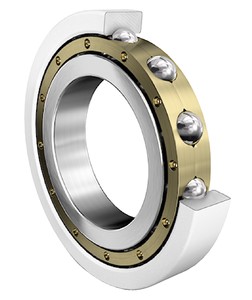

| Product Number | 6321-M-J20AB-C3 Bearing |
| Bore diameter(d) | 105 mm |
| Outside diameter(D) | 225 mm |
| Width(B) | 49 mm |
| Basic dynamic load rating(Cr) | 188.000 N |
| Basic static load rating(Cor) | 150.000 N |
| Limiting speed(nG) | 5.300 1/min |
| Reference speed(nϑr) | 4.450 1/min |
| Weight(mass) | 9,6 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20AB |
| da | 119 mm |
| Da | 211 mm |
6321-M-J20AB-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6321.M.J20AB.C3 Bearing
