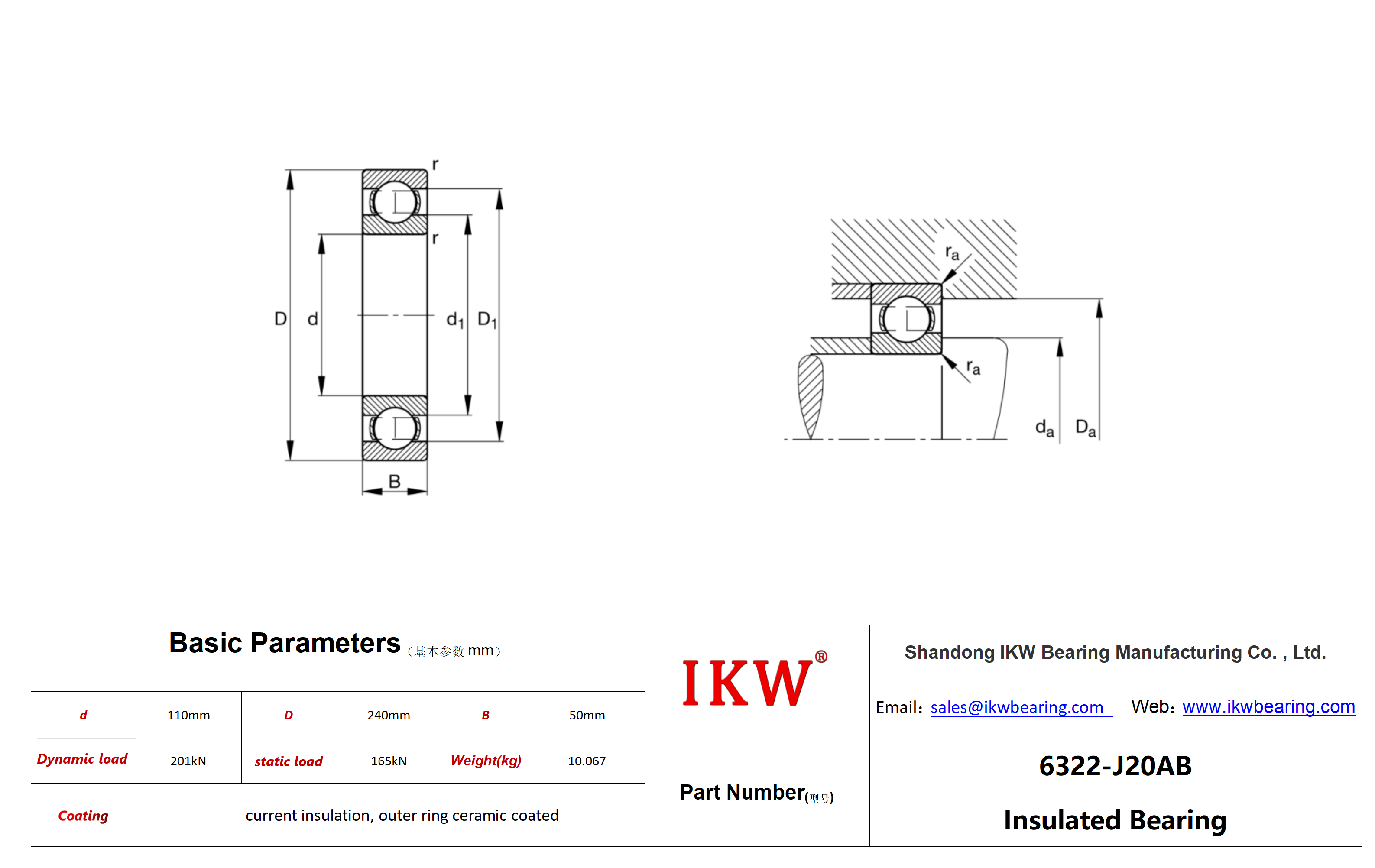

| Product Number | 6322-J20AB Bearing |
| Bore diameter(d) | 110 mm |
| Outside diameter(D) | 240 mm |
| Width(B) | 50 mm |
| Basic dynamic load rating(Cr) | 201.000 N |
| Basic static load rating(Cor) | 165.000 N |
| Limiting speed(nG) | 3.800 1/min |
| Reference speed(nϑr) | 4.150 1/min |
| Weight(mass) | 10,067 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20AB |
| da | 124 mm |
| Da | 226 mm |
6322-J20AB Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6322.J20AB bearing
