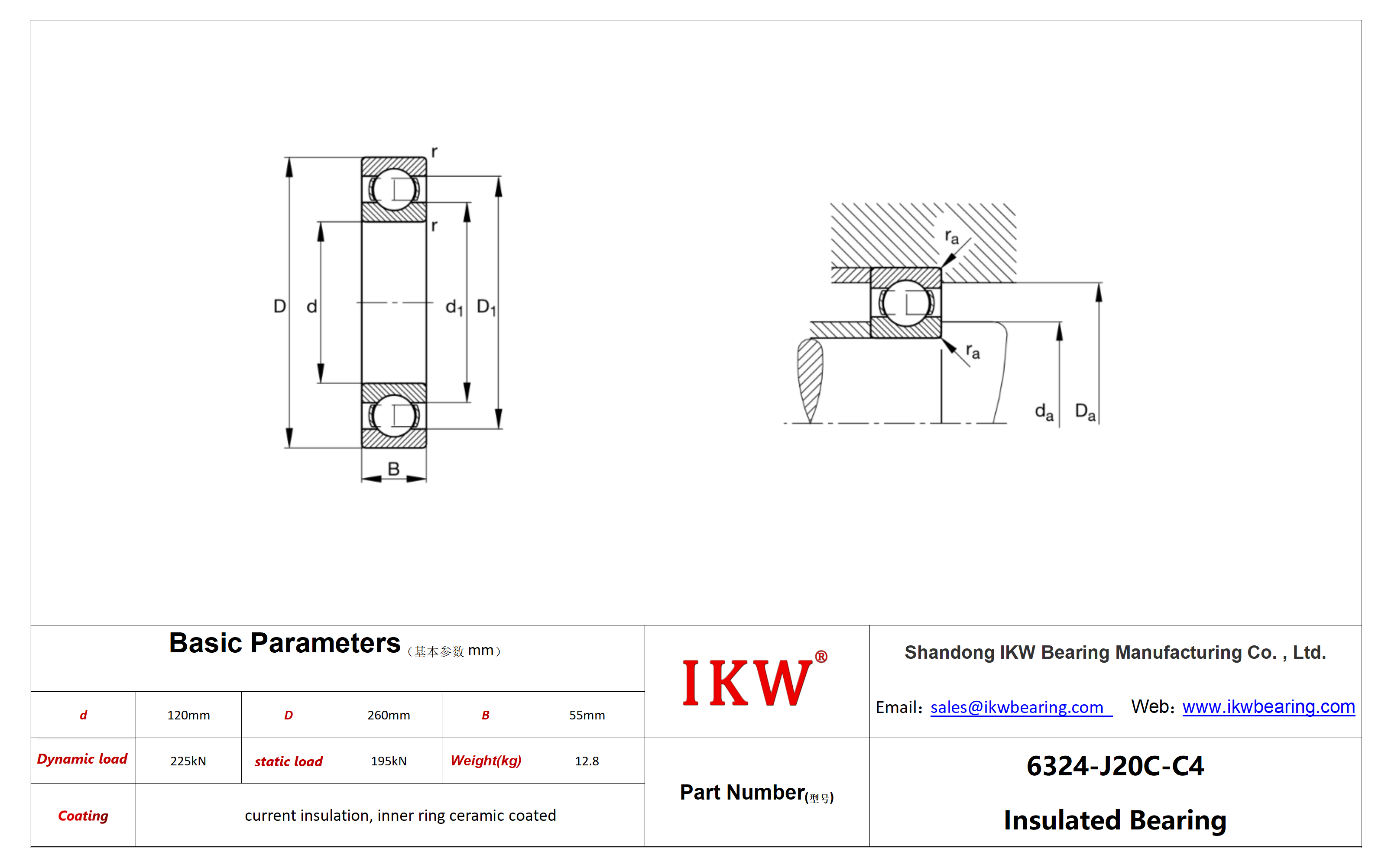

| Product Number | 6324-J20C-C4 Bearing |
| Bore diameter(d) | 120 mm |
| Outside diameter(D) | 260 mm |
| Width(B) | 55 mm |
| Basic dynamic load rating(Cr) | 225.000 N |
| Basic static load rating(Cor) | 195.000 N |
| Limiting speed(nG) | 3.500 1/min |
| Reference speed(nϑr) | 3.800 1/min |
| Weight(mass) | 12,8 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20C |
| da | 134 mm |
| Da | 246 mm |
6324-J20C-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6324.J20C.C4 Bearing
