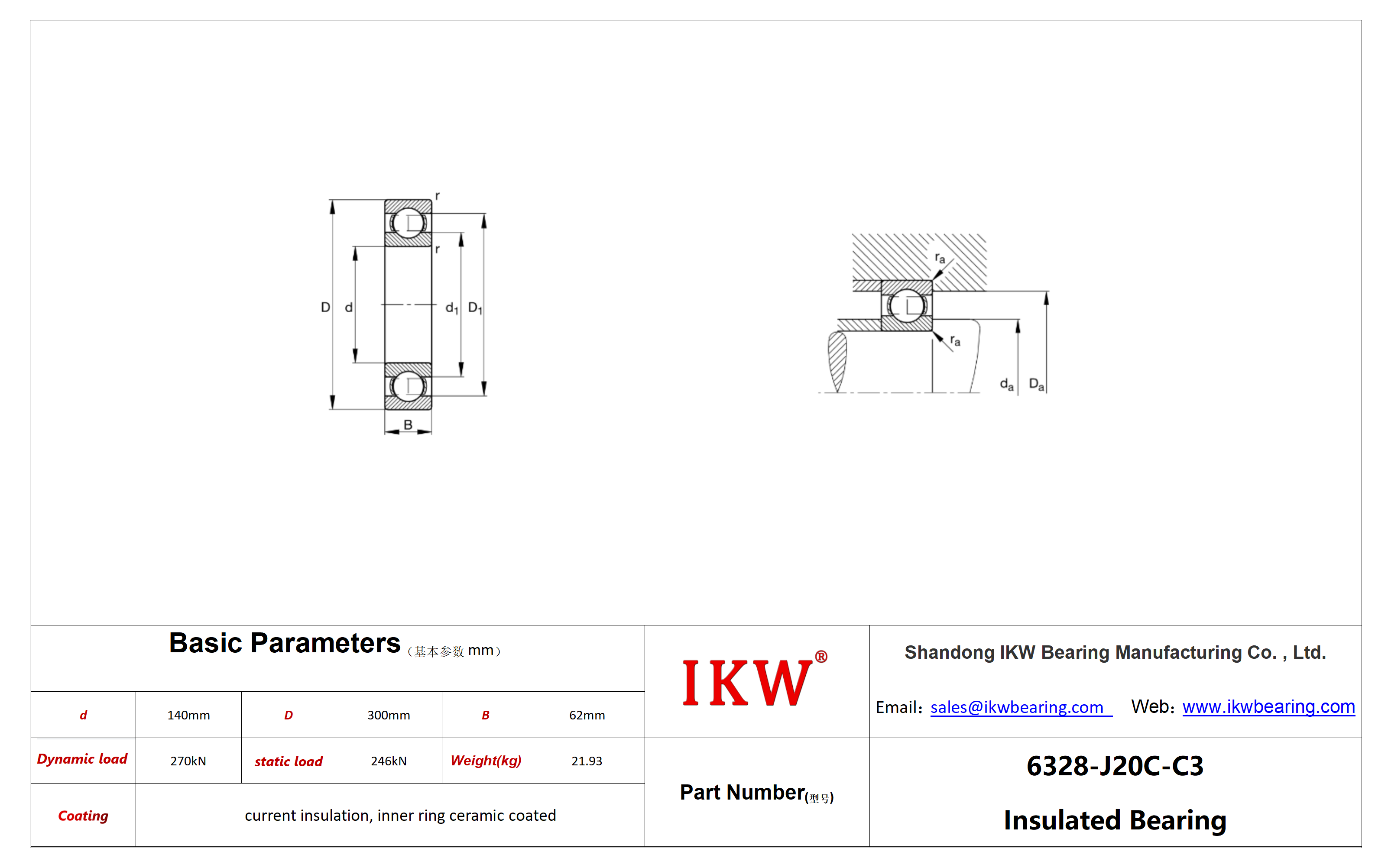

| Product Number | 6328-J20C-C3 Bearing |
| Bore diameter(d) | 140 mm |
| Outside diameter(D) | 300 mm |
| Width(B) | 62 mm |
| Basic dynamic load rating(Cr) | 270.000 N |
| Basic static load rating(Cor) | 246.000 N |
| Limiting speed(nG) | 2.950 1/min |
| Reference speed(nϑr) | 3.250 1/min |
| Weight(mass) | 18,6 kg |
| Cage | JN |
| Lubricant | without |
| Radial internal clearance | C3 |
| Coating | J20C |
| da | 157 mm |
| Da | 283 mm |
6328-J20C-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6328.J20C.C3 Bearing
