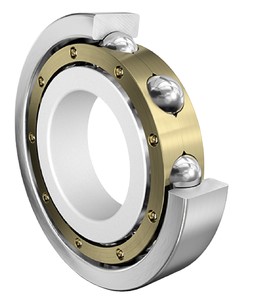

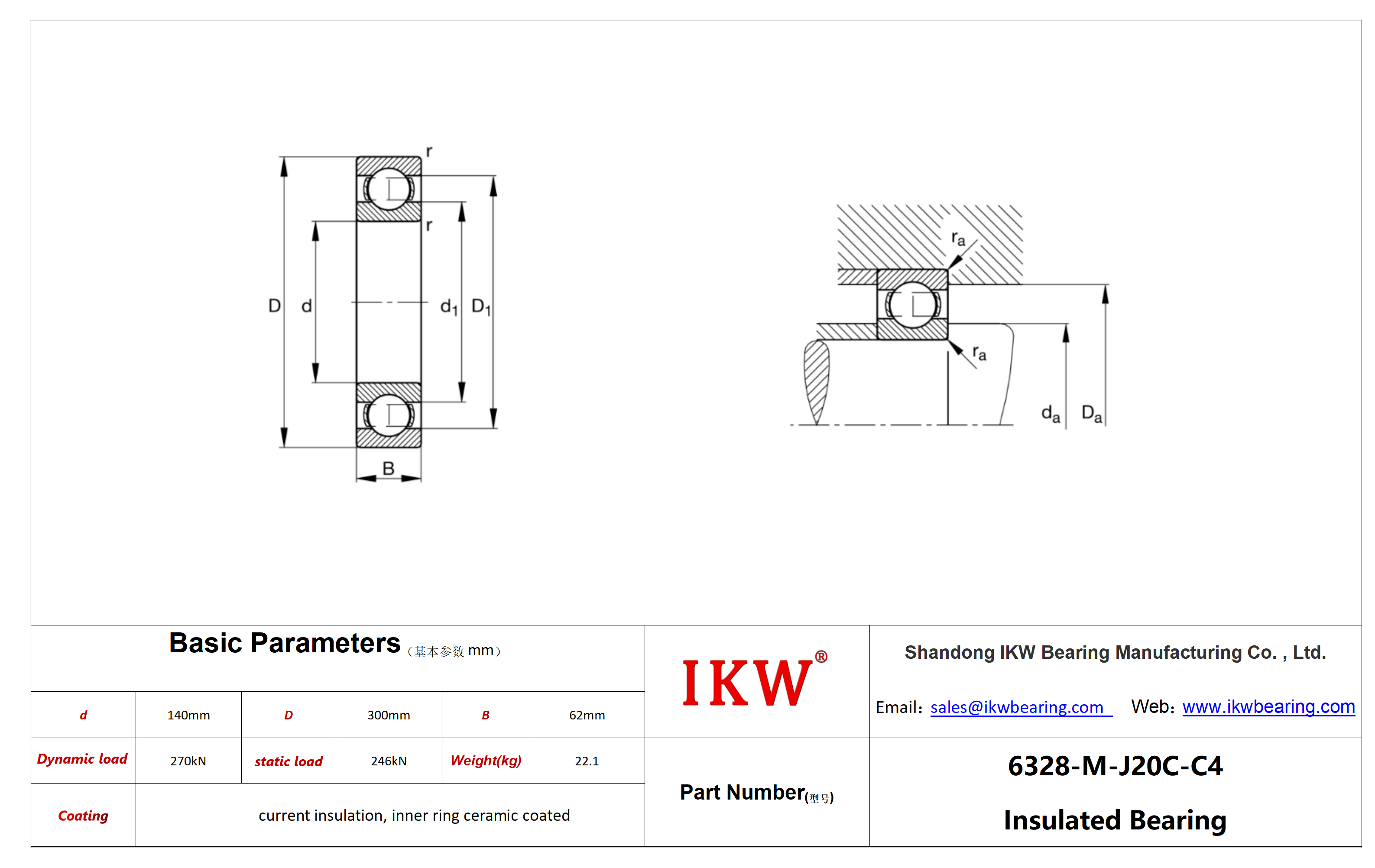

| Product Number | 6328-M-J20C-C4 Bearing |
| Bore diameter(d) | 140 mm |
| Outside diameter(D) | 300 mm |
| Width(B) | 62 mm |
| Basic dynamic load rating(Cr) | 270.000 N |
| Basic static load rating(Cor) | 246.000 N |
| Limiting speed(nG) | 3.850 1/min |
| Reference speed(nϑr) | 3.250 1/min |
| Weight(mass) | 22,1 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | C4 |
| Coating | J20C |
| da | 157 mm |
| Da | 283 mm |
6328-M-J20C-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6328.M.J20C.C4 Bearing
