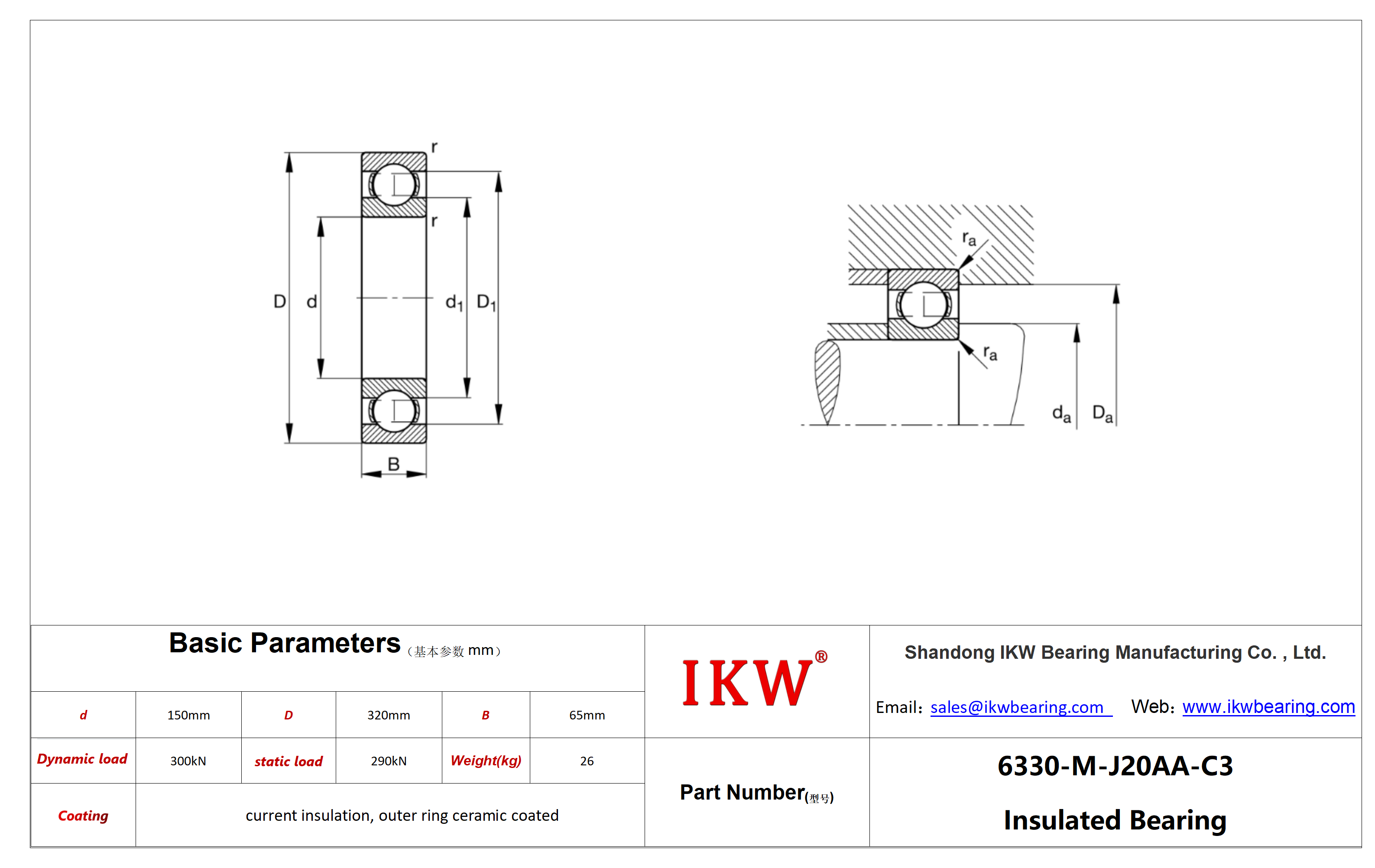

| Product Number | 6330-M-J20AA-C3 Bearing |
| Bore diameter(d) | 150 mm |
| Bore diameter(d) | 150 mm |
| Outside diameter(D) | 320 mm |
| Outside diameter(D) | 320 mm |
| Width(B) | 65 mm |
| Width(B) | 65 mm |
| Basic dynamic load rating(Cr) | 300.000 N |
| Basic dynamic load rating(Cr) | 300.000 N |
| Basic static load rating(Cor) | 290.000 N |
| Basic static load rating(Cor) | 290.000 N |
| Limiting speed(nG) | 3.600 1/min |
| Limiting speed(nG) | 3.600 1/min |
| Reference speed(nϑr) | 3.000 1/min |
| Reference speed(nϑr) | 3.000 1/min |
| Weight(mass) | 26 kg |
| Weight(mass) | 26 kg |
| Cage | M |
| Cage | M |
| Lubricant | without |
| Lubricant | without |
| Radial internal clearance | C3 |
| Radial internal clearance | C3 |
| Coating | J20AA |
| Coating | J20AA |
| da | 167 mm |
| da | 167 mm |
| Da | 303 mm |
| Da | 303 mm |
6330-M-J20AA-C3 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6330.M.J20AA.C3 Bearing
