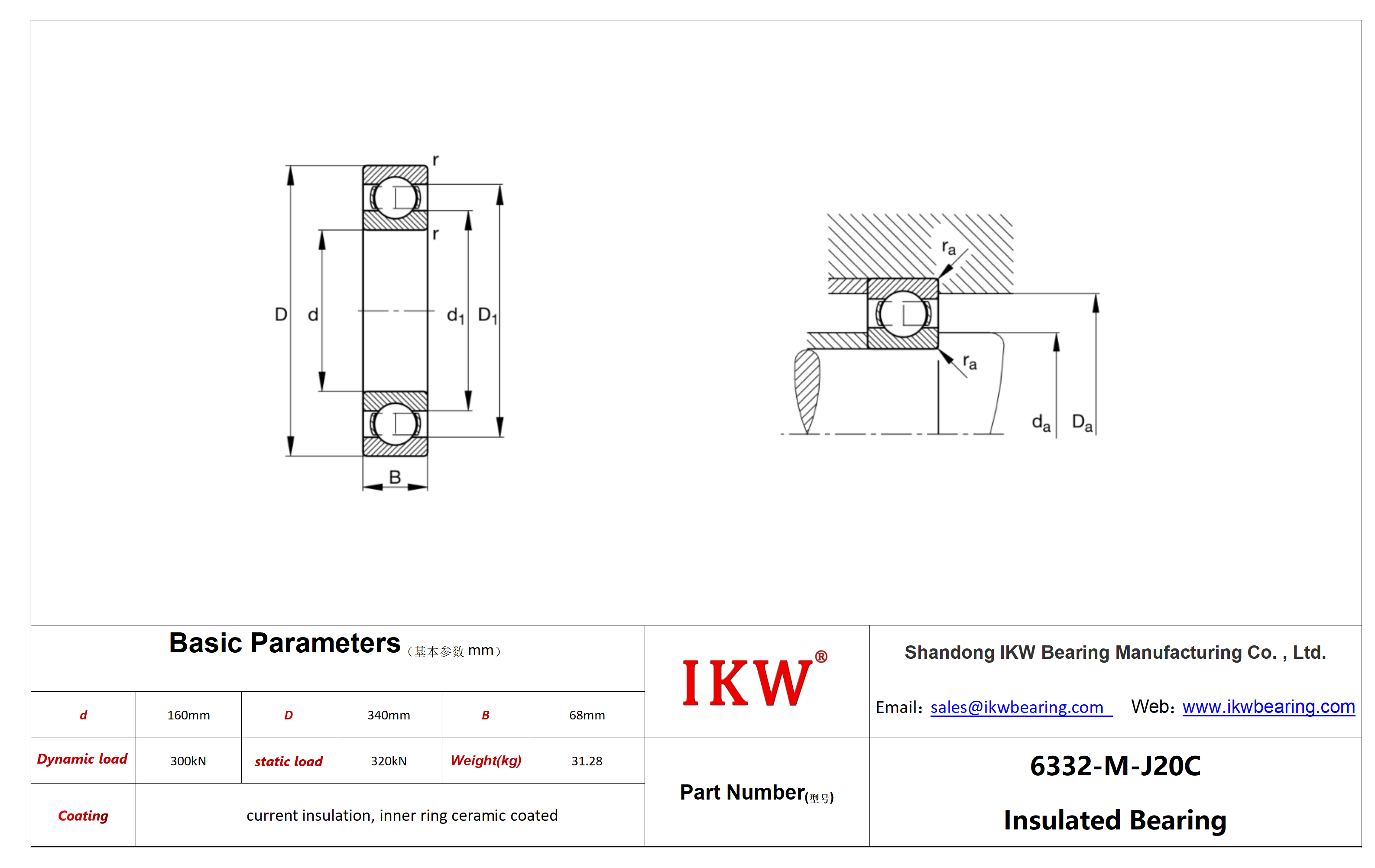

| Product Number | 6332-M-J20C Bearing |
| Bore diameter(d) | 160 mm |
| Outside diameter(D) | 340 mm |
| Width(B) | 68 mm |
| Basic dynamic load rating(Cr) | 300.000 N |
| Basic static load rating(Cor) | 320.000 N |
| Limiting speed(nG) | 3.400 1/min |
| Reference speed(nϑr) | 2.800 1/min |
| Weight(mass) | 31,28 kg |
| Cage | M |
| Lubricant | without |
| Radial internal clearance | CN |
| Coating | J20C |
| da | 177 mm |
| Da | 323 mm |
6332-M-J20C Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| 6332.M.J20C bearing
