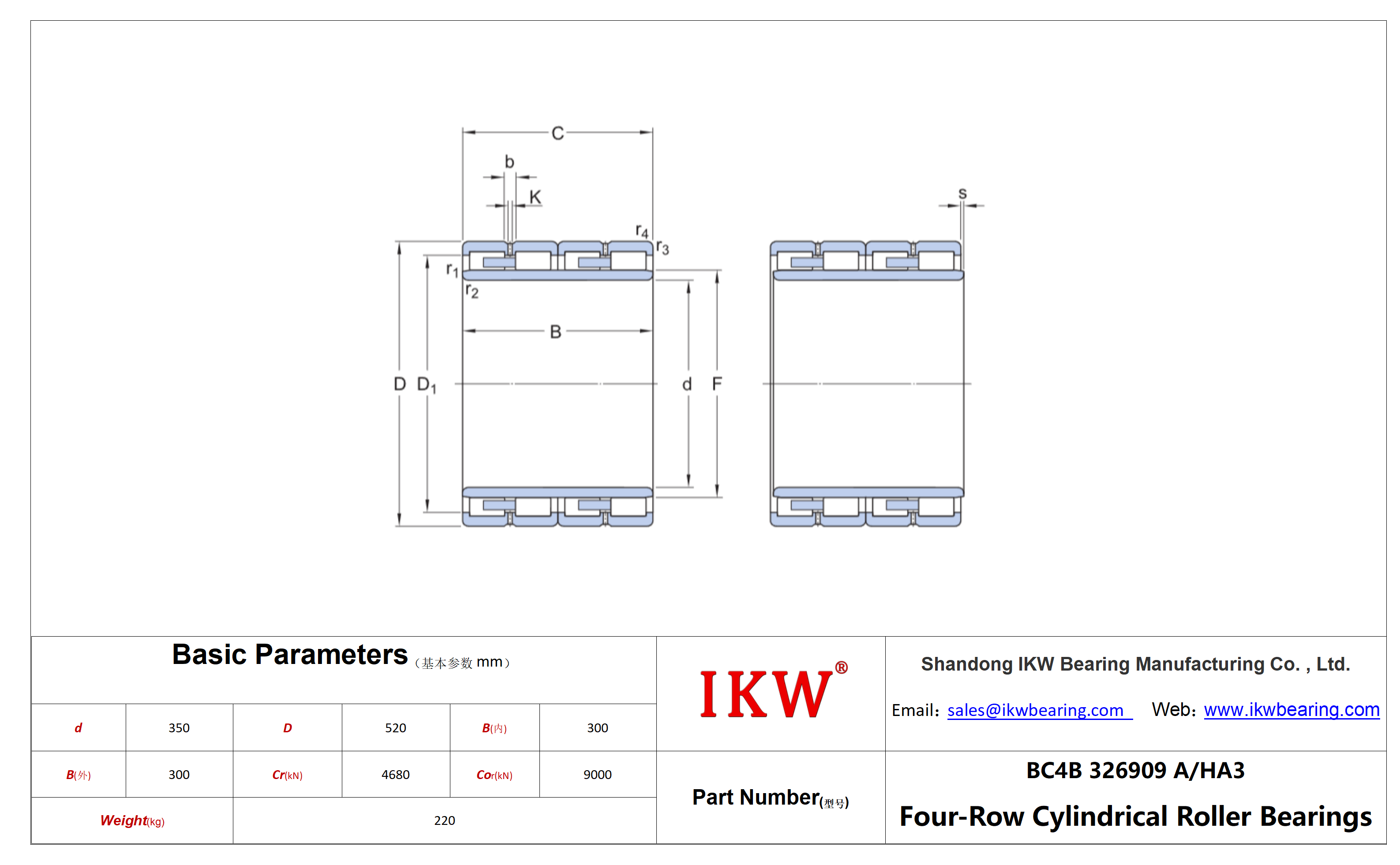

| Product Number | BC4B 326909 A/HA3 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 350 mm |
| Outer Dia (D) | 520 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 300 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 300 mm |
| Dynamic Radial Load | 4680 kN |
| Static Radial Load | 9000 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 10 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 5 mm |
| Dynamic Load Rating | 4680 kN |
| Static Load Rating | 9000 kN |
| Fatigue Load Limit(Pu) | 800 kN |
| Static Load Rating | 9000~10000 kN |
| Calculation Factor(Kr) | 220 kg |
| Mass Bearing | 401 mm |
| Raceway Diameter Inner Ring(F) | 485 mm |
| Design Variant/Feature | BC4.1/W33GWI |
| Width of Annular Groove(B) | 11.6 mm |
| Chamfer Angle Inner Ring(α) | 20 ° |
| Diameter Lubrication Hole(Outer Ring)(K) | 6 mm |
| Outer Ring Shoulder Diameter(D1) | 467.95 mm |
BC4B 326909 A/HA3 Bearing|Rolling mill bearings|Four row cylindrical roller bearings|Cylindrical roller bearings|BC4B 326909 A/HA3_Bearing
