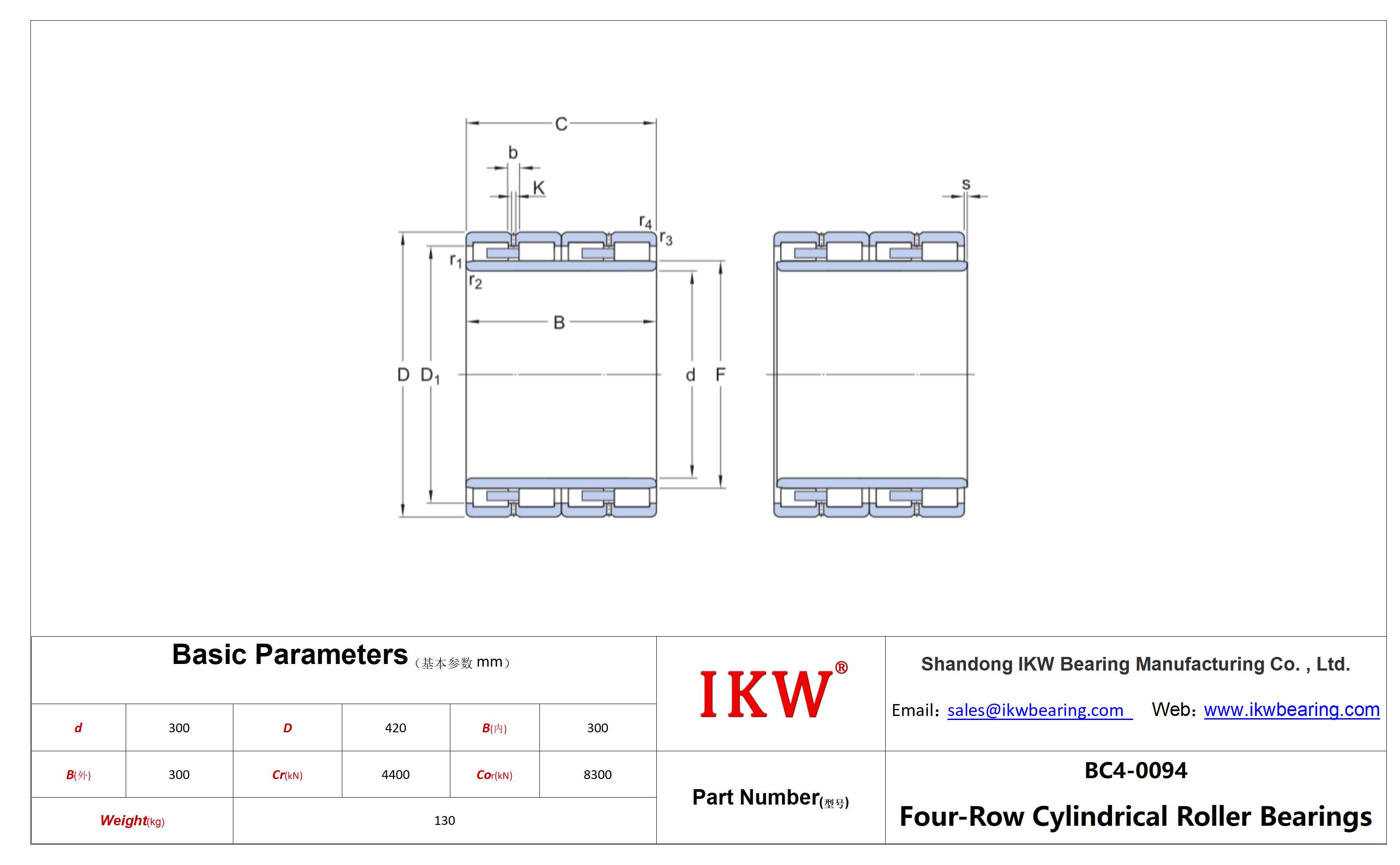

| Product Number | BC4-0094 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 300 mm |
| Outer Dia (D) | 420 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 300 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 300 mm |
| Dynamic Radial Load | 4400 kN |
| Static Radial Load | 8300 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 1.5 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 6.4 mm |
| Dynamic Load Rating | 4400 kN |
| Static Load Rating | 8300 kN |
| Fatigue Load Limit(Pu) | 800 kN |
| Static Load Rating | 8000~9000 kN |
| Calculation Factor(Kr) | |
| Mass Bearing | 130 kg |
| Raceway Diameter Inner Ring(F) | 332 mm |
| Design Variant/Feature | BC4.8/W33WO |
| Width of Annular Groove(B) | 11.1 mm |
| Chamfer Angle Inner Ring(α) | 20 ° |
| Diameter Lubrication Hole(Outer Ring)(K) | 6 mm |
| This Bearing Can Replace | 314484 D |
| Outer Ring Shoulder Diameter(D1) | 378.2 mm |
| Bearing Ring With Roller And Cage Assembly | |
| Separable Bearing Ring | LBC4RBC4-0094-0094 |
| Permissible Axial Displacement(S) | 3 mm |
