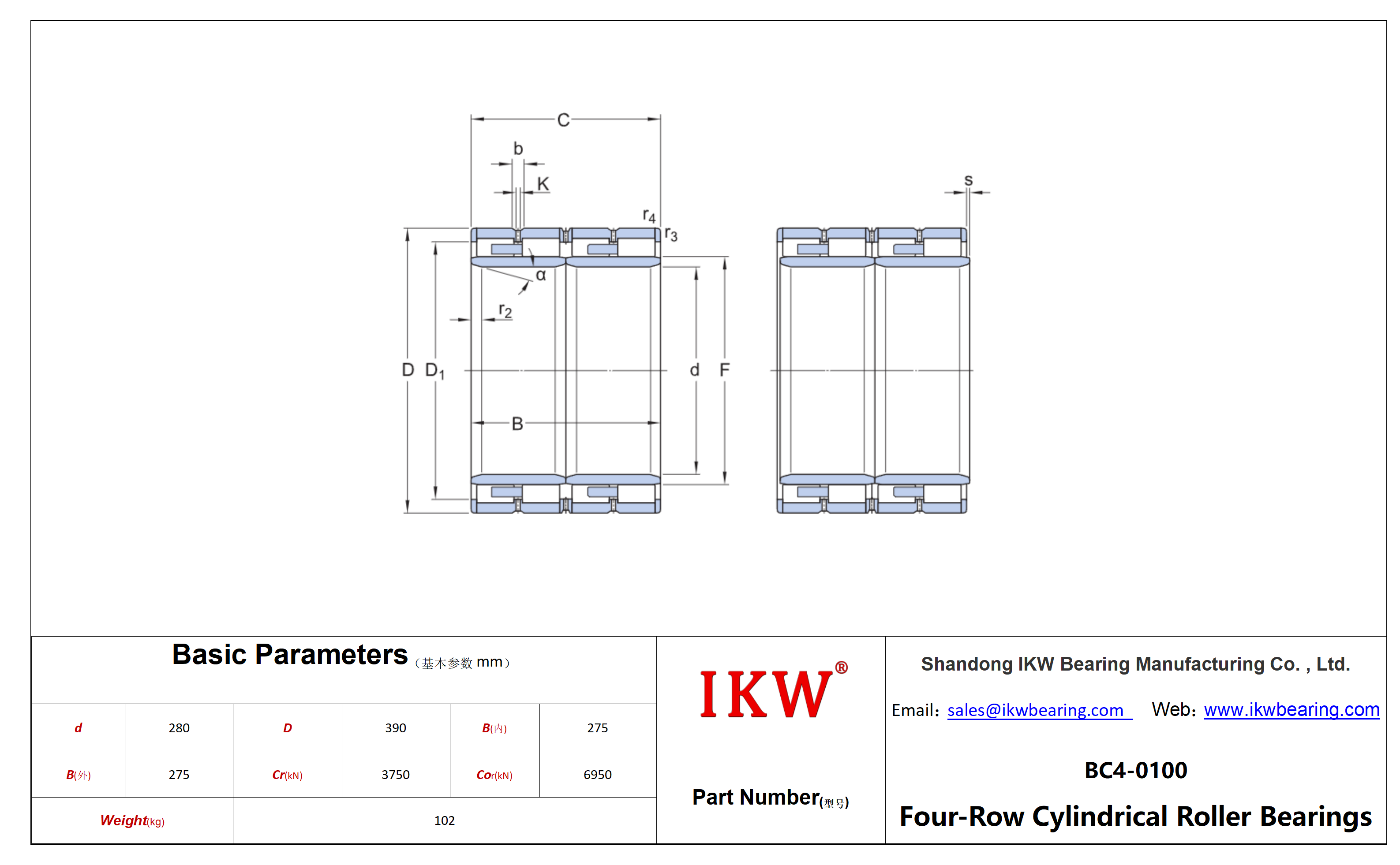

| Product Number | BC4-0100 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 280 mm |
| Outer Dia (D) | 390 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 275 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 275 mm |
| Dynamic Radial Load | 3750 kN |
| Static Radial Load | 6950 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 1.1 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 8.08 mm |
| Dynamic Load Rating | 3750 kN |
| Static Load Rating | 6950 kN |
| Fatigue Load Limit(Pu) | 670 kN |
| Static Load Rating | 6000~7000 kN |
| Calculation Factor(Kr) | |
| Mass Bearing | 102 kg |
| Raceway Diameter Inner Ring(F) | 308 mm |
| Design Variant/Feature | BC4.8/W33 |
| Width of Annular Groove(B) | 11.1 mm |
| Chamfer Angle Inner Ring(α) | 20 ° |
| Diameter Lubrication Hole(Outer Ring)(K) | 6 mm |
| This Bearing Can Replace | 314719 C |
| Outer Ring Shoulder Diameter(D1) | 353 mm |
| Permissible Axial Displacement(S) | 3 mm |
| Bearing Ring With Roller And Cage Assembly | RBC4-0100 |
| Separable Bearing Ring | LBC4-0100 |
