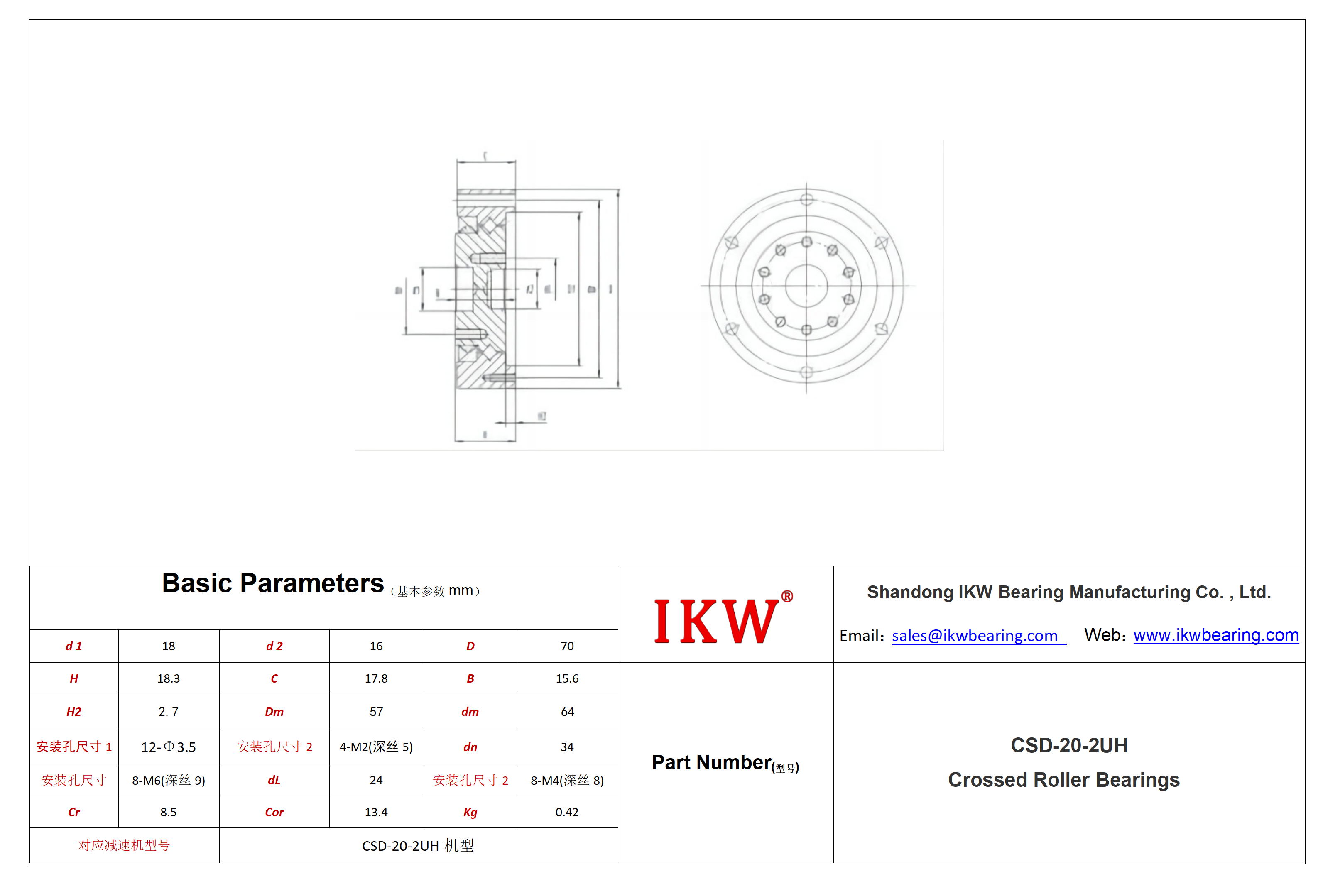

| Product Number | CSD-20-2UH Bearing |
| d | |
| d3 | |
| D | 70 |
| H | 18.3 |
| C | 17.8 |
| C1 | |
| T | |
| B | 15.6 |
| B1 | |
| H2 | 2.7 |
| D1 | |
| D2 | |
| d1 | 18 |
| d2 | 16 |
| Dm | 57 |
| dm | 64 |
| 外安装孔尺寸1 | 12-Φ3.5 |
| 外安装孔尺寸2 | 4-M2(深丝5) |
| 中安装孔尺寸 | |
| dn | 34 |
| 内安装孔尺寸1 | 8-M6(深丝9) |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | 24 |
| 内安装孔尺寸2 | 8-M4(深丝8） |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 8.5 |
| Cor(kN) | 13.4 |
| Kg | 0.42 |
| 对应减速机型号 | CSD-20-2UH 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
