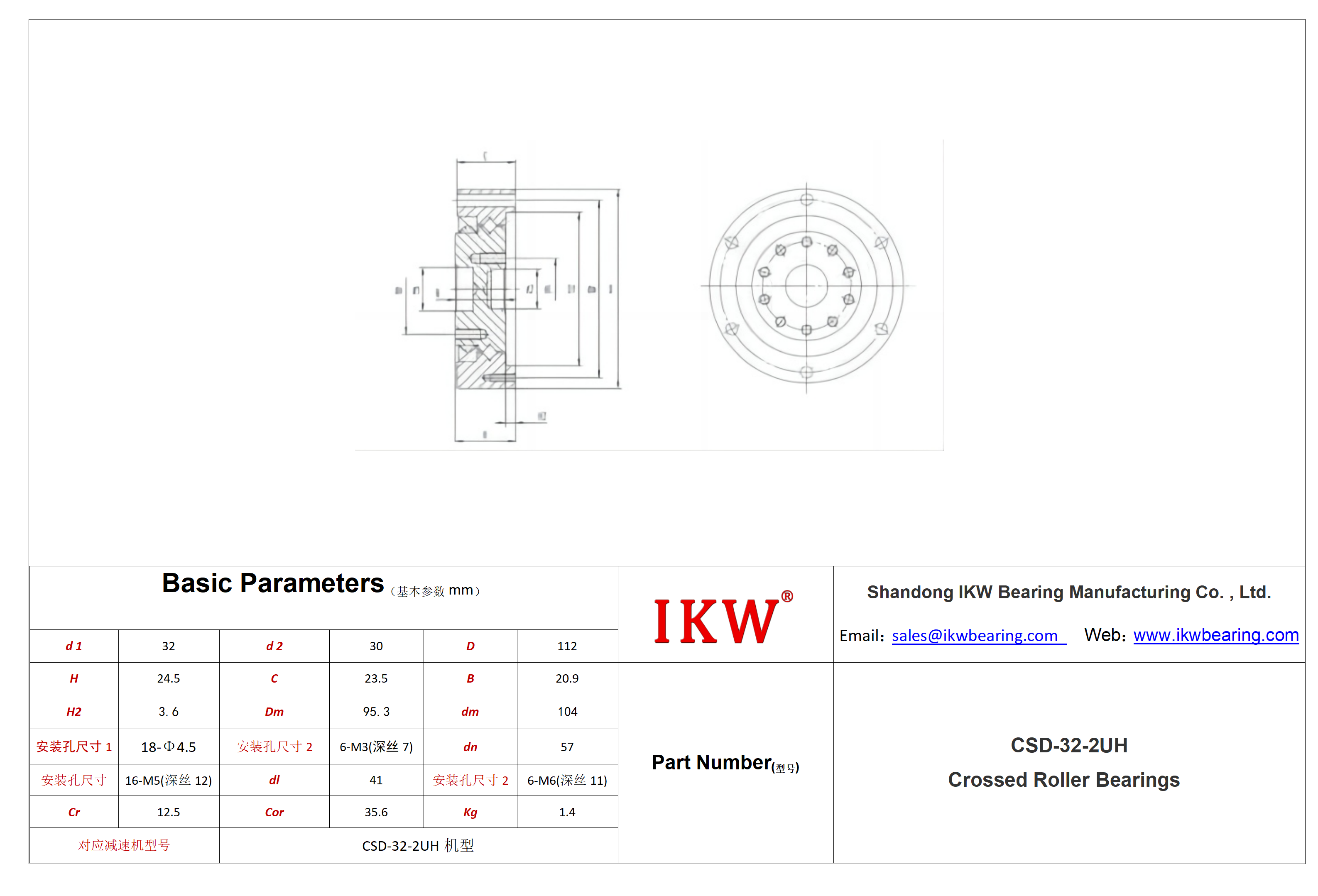

| Product Number | CSD-32-2UH Bearing |
| d | |
| d3 | |
| D | 112 |
| H | 24.5 |
| C | 23.5 |
| C1 | |
| T | |
| B | 20.9 |
| B1 | |
| H2 | 3.6 |
| D1 | |
| D2 | |
| d1 | 32 |
| d2 | 30 |
| Dm | 95.3 |
| dm | |
| 外安装孔尺寸1 | 18-Φ4.5 |
| 外安装孔尺寸2 | 6-M3(深丝7) |
| 中安装孔尺寸 | |
| dn | 57 |
| 内安装孔尺寸1 | 16-M5(深丝12) |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | 41 |
| 内安装孔尺寸2 | 6-M6(深丝11) |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 12.5 |
| Cor(kN) | 35.6 |
| Kg | 1.4 |
| 对应减速机型号 | CSD-32-2UH 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
CSD-32-2UH Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers | CSD seriesCSD-32-2UH_Bearing
