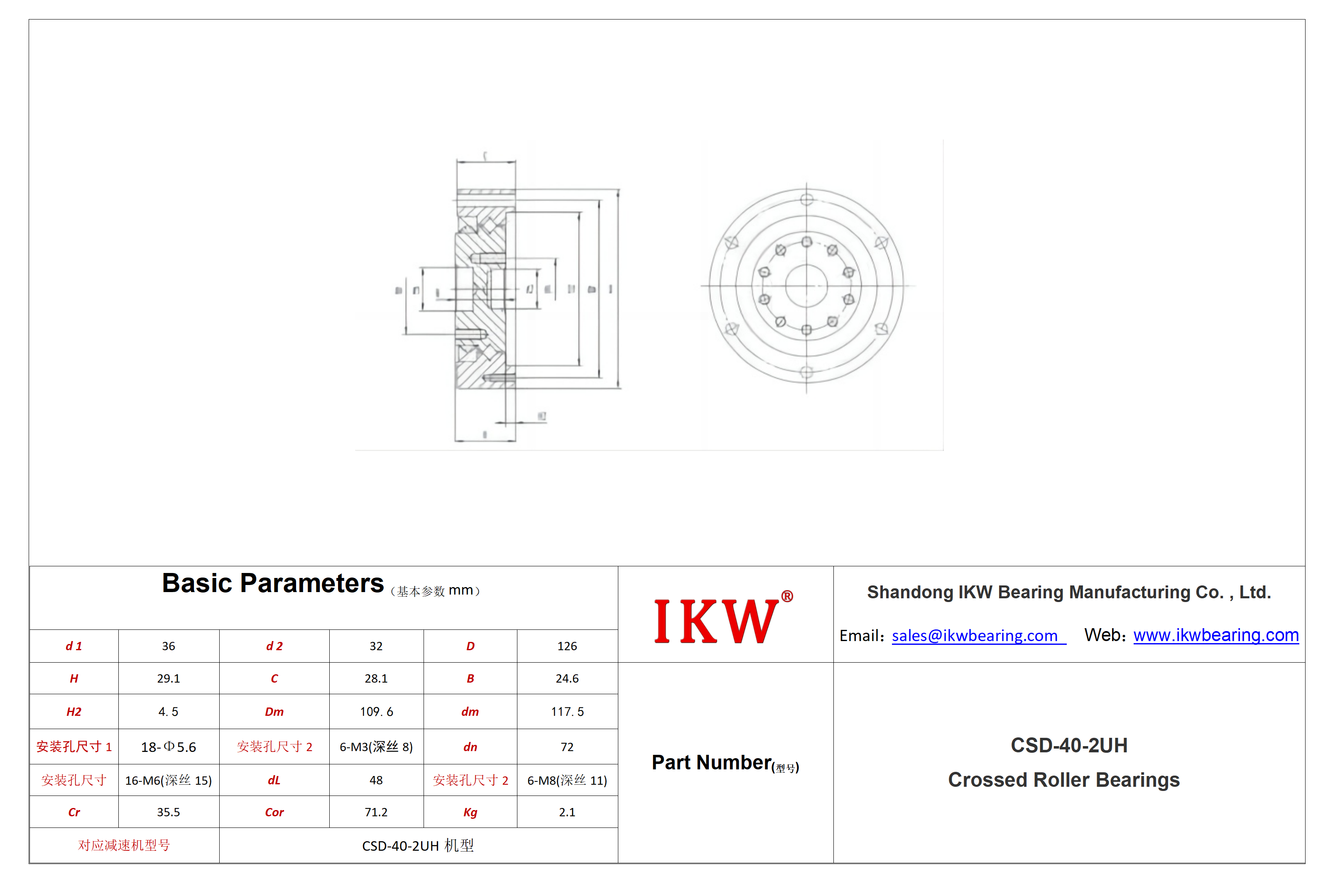

| Product Number | CSD-40-2UH Bearing |
| d | |
| d3 | |
| D | 126 |
| H | 29.1 |
| C | 28.1 |
| C1 | |
| T | |
| B | 24.6 |
| B1 | |
| H2 | 4.5 |
| D1 | |
| D2 | |
| d1 | 36 |
| d2 | 32 |
| Dm | 109.6 |
| dm | 117.5 |
| 外安装孔尺寸1 | 18-Φ5.6 |
| 外安装孔尺寸2 | 6-M3(深丝8) |
| 中安装孔尺寸 | |
| dn | 72 |
| 内安装孔尺寸1 | 16-M6(深丝15) |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | 48 |
| 内安装孔尺寸2 | 6-M8(深丝11) |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 35.5 |
| Cor(kN) | 71.2 |
| Kg | 2.1 |
| 对应减速机型号 | CSD-40-2UH 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
CSD-40-2UH Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers | CSD seriesCSD-40-2UH_Bearing
