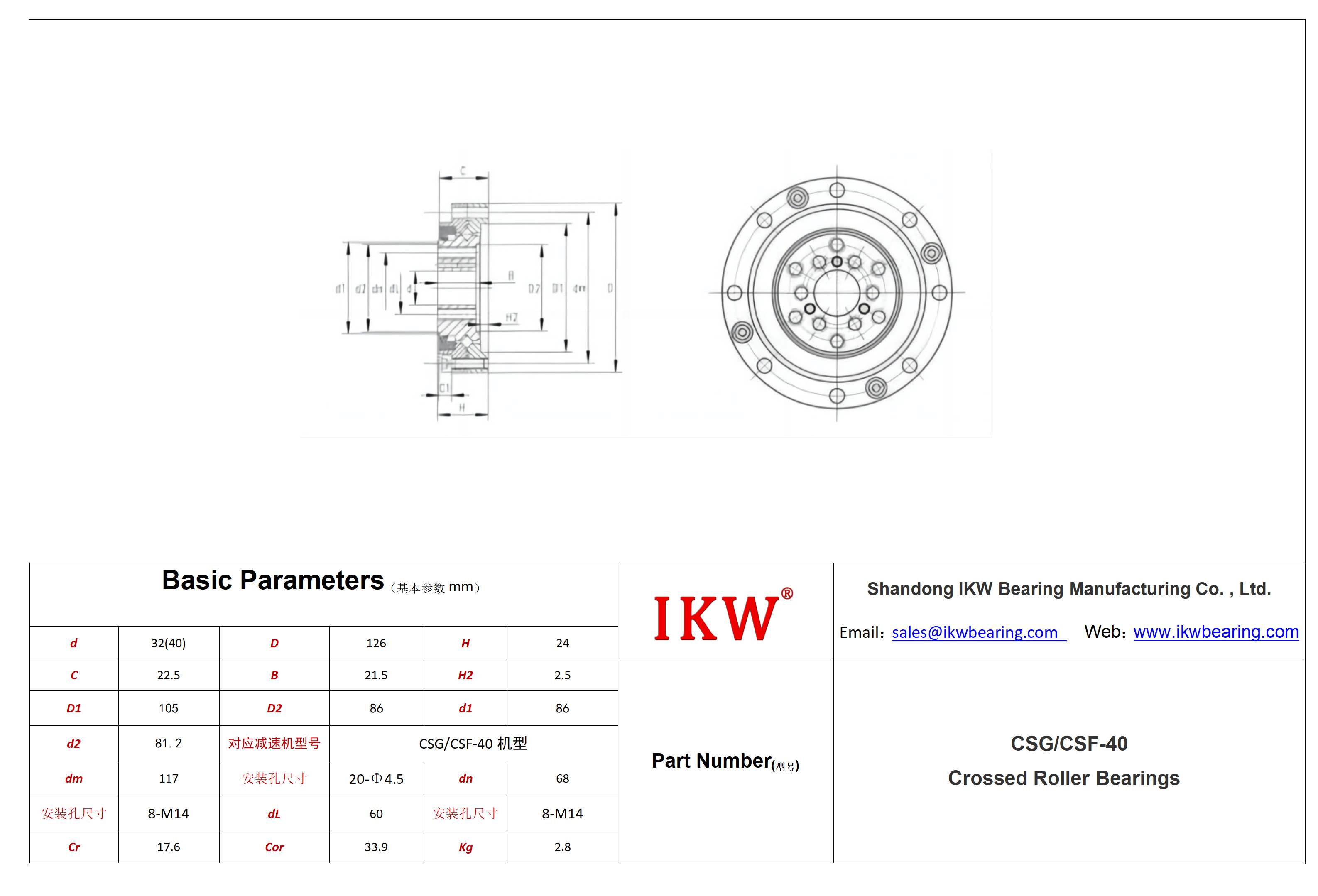

| Product Number | CSG/CSF-40 Bearing |
| d | 32(24) |
| d3 | |
| D | 126 |
| H | 24 |
| C | 22.5 |
| C1 | |
| T | |
| B | 21.5 |
| B1 | |
| H2 | 2.5 |
| D1 | 105 |
| D2 | 86 |
| d1 | 86 |
| d2 | 81.2 |
| Dm | |
| dm | 117 |
| 外安装孔尺寸1 | 20-Φ4.5 |
| 外安装孔尺寸2 | |
| 中安装孔尺寸 | |
| dn | 68 |
| 内安装孔尺寸1 | 8-M14 |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | 60 |
| 内安装孔尺寸2 | 8-M14 |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 17.6 |
| Cor(kN) | 33.9 |
| Kg | 2.8 |
| 对应减速机型号 | CSG/CSF-40 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
CSG/CSF-40 Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers | CSD seriesCSG/CSF-40_Bearing
