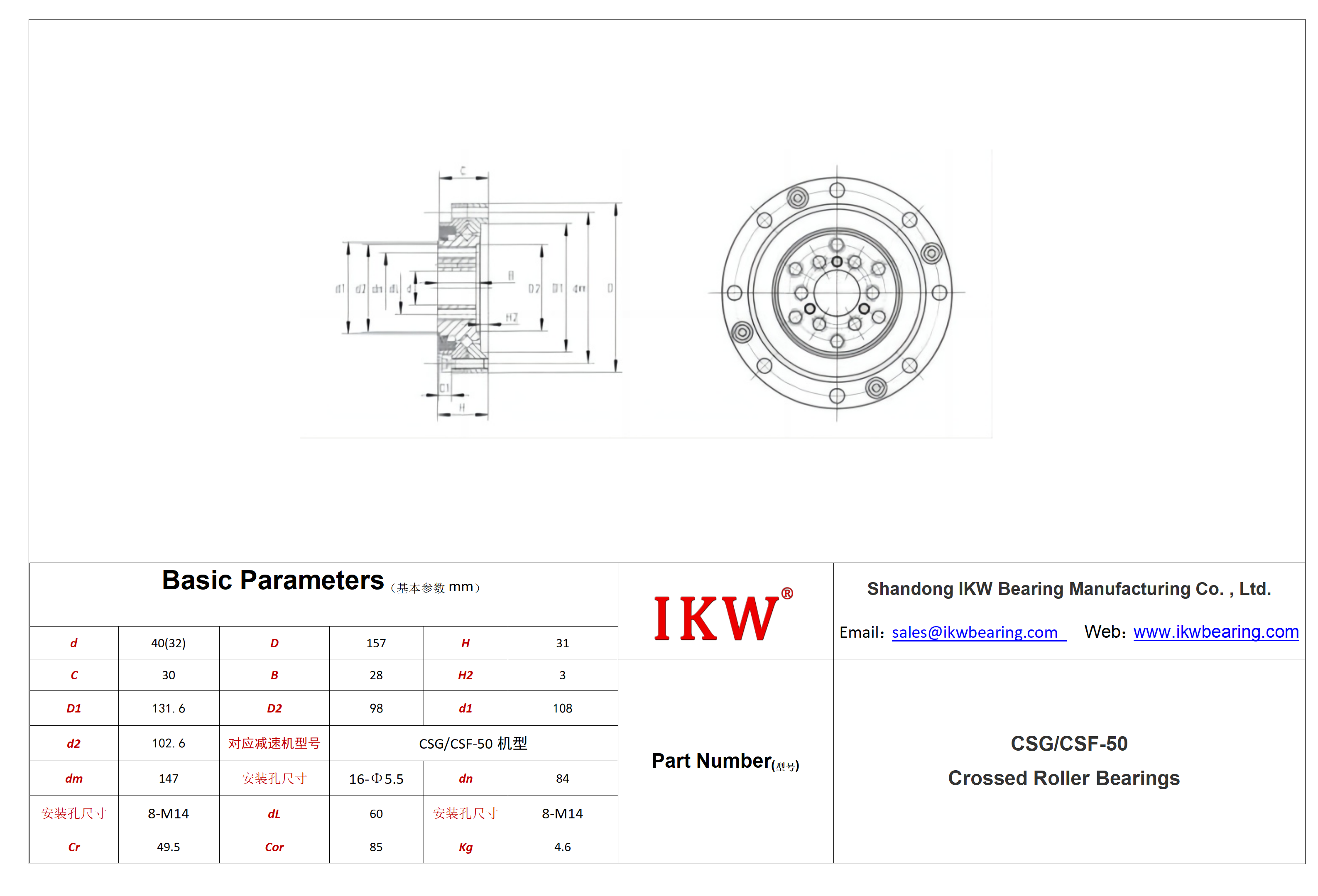

| Product Number | CSG/CSF-50 Bearing |
| d | 40(32) |
| d3 | |
| D | 157 |
| H | 31 |
| C | 30 |
| C1 | |
| T | |
| B | 28` |
| B1 | |
| H2 | 3 |
| D1 | 131.6 |
| D2 | 98 |
| d1 | 108 |
| d2 | 102.6 |
| Dm | |
| dm | 147 |
| 外安装孔尺寸1 | 16-Φ5.5 |
| 外安装孔尺寸2 | |
| 中安装孔尺寸 | |
| dn | 84 |
| 内安装孔尺寸1 | 8-M14 |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | 60 |
| 内安装孔尺寸2 | 8-M14 |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 49.5 |
| Cor(kN) | 85 |
| Kg | 4.6 |
| 对应减速机型号 | CSG/CSF-50 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
CSG/CSF-50 Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers | CSD seriesCSG/CSF-50_Bearing
