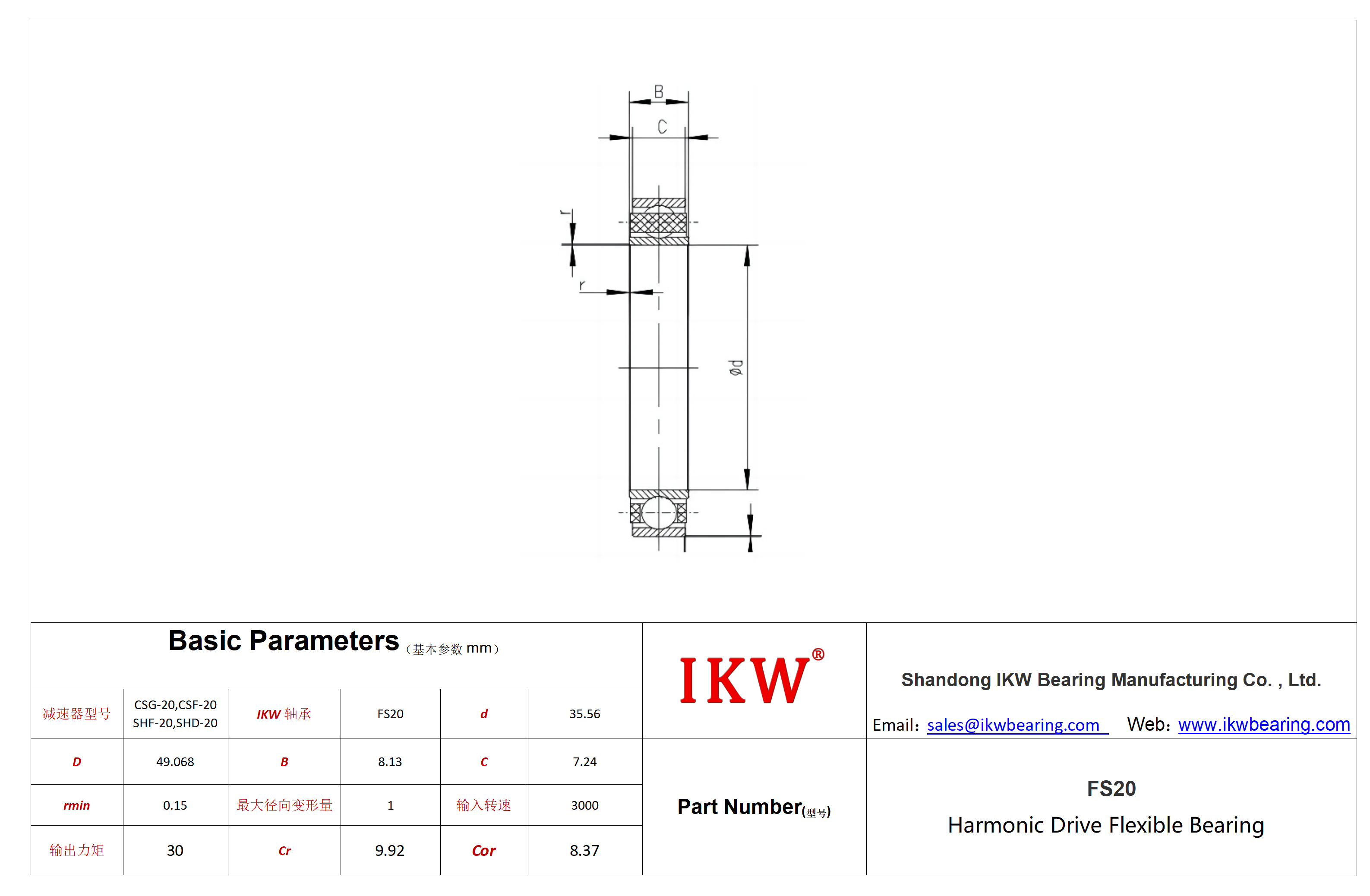

| Product Number | FS20 Bearing |
| d | 35.56 |
| d3 | |
| D | 49.068 |
| H | |
| C | 7.24 |
| C1 | |
| T | |
| B | 8.13 |
| B1 | |
| H2 | |
| D1 | |
| D2 | |
| d1 | |
| d2 | |
| Dm | |
| dm | |
| 外安装孔尺寸1 | |
| 外安装孔尺寸2 | |
| 中安装孔尺寸 | |
| dn | |
| 内安装孔尺寸1 | |
| 中安装孔尺寸 | |
| 中安装孔尺寸 | |
| dL | |
| 内安装孔尺寸2 | |
| rmin | 0.15 |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 9.92 |
| Cor(kN) | 8.37 |
| Kg | |
| 对应减速机型号 | |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | 1 |
| 输入转速 | 3000 |
| 输出力矩 | 30 |
| 谐波减速器型号 | CSG-20,CSF-20,SHF-20,SHD-20 |
FS20 Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers |617 British harmonic reducer flexible bearings|FS20_Bearing
