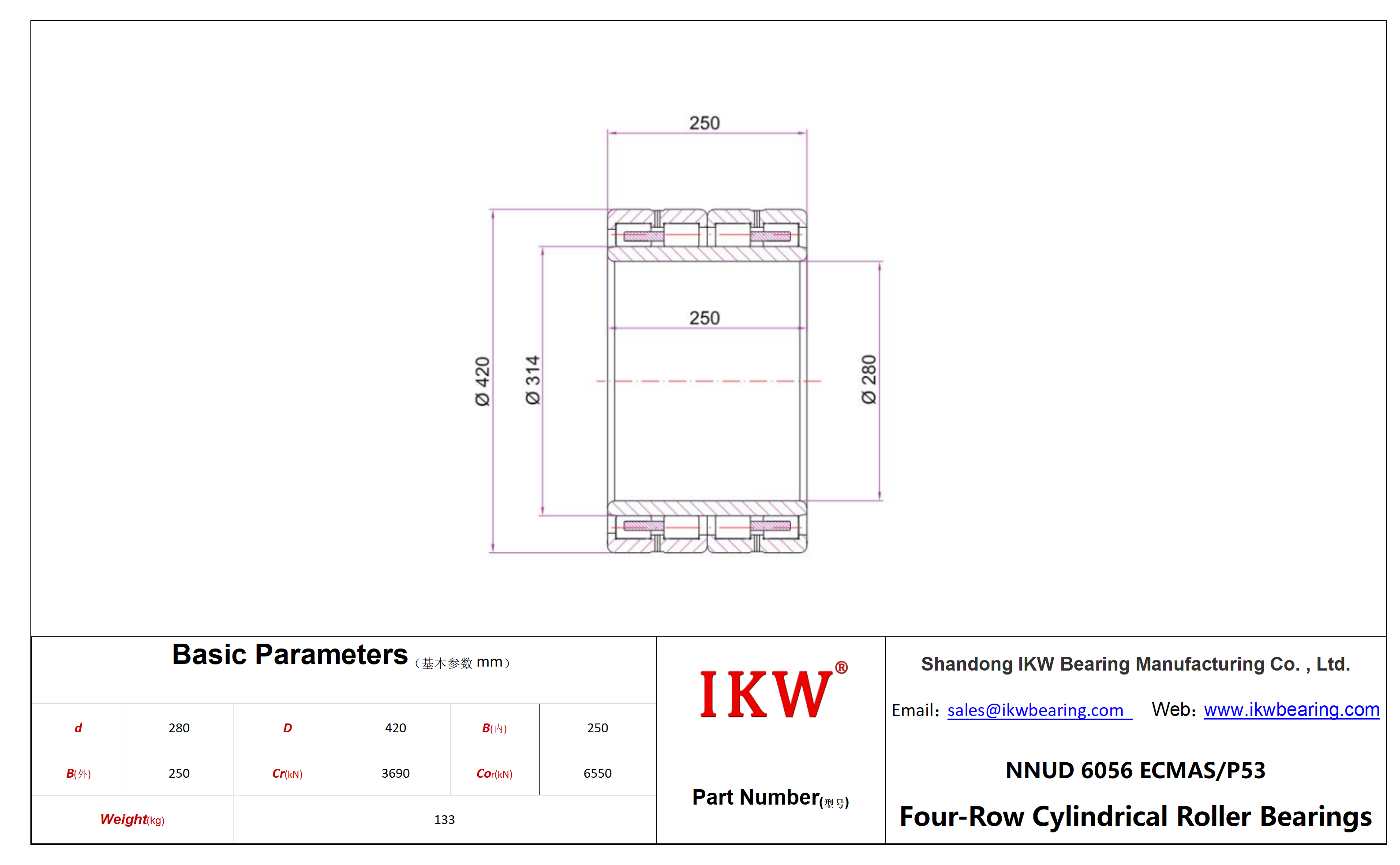

| Product Number | NNUD 6056 ECMAS/P53 Bearing |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined Radial and Thrust |
| Bore Dia (d) | 280 mm |
| Outer Dia (D) | 420 mm |
| Total Bearing Width Over Inner Ring(S)(B) | 250 mm |
| Total Bearing Width Over Outer Ring(S)(C) | 250 mm |
| Dynamic Radial Load | 3690 kN |
| Static Radial Load | 6550 kN |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Corner Radius/Chamfer Inner Ring(r1,2)(min#) | 4 mm |
| Chamfer Dimension On The Outer Ring(r3,4)(min#) | 4 mm |
| Dynamic Load Rating | 3690 kN |
| Static Load Rating | 6550 kN |
| Fatigue Load Limit(Pu) | 640 kN |
| Static Load Rating | 6000~7000 kN |
| Calculation Factor(Kr) | |
| Mass Bearing | 133 kg |
| Raceway Diameter Inner Ring(F) | |
| Design Variant/Feature | BC4.13/W |
| Width of Annular Groove(B) | |
| Chamfer Angle Inner Ring(α) | |
| Diameter Lubrication Hole(Outer Ring)(K) | |
| Outer Ring Shoulder Diameter(D1) | 377.8 mm |
| Permissible Axial Displacement(S) | 3 mm |
