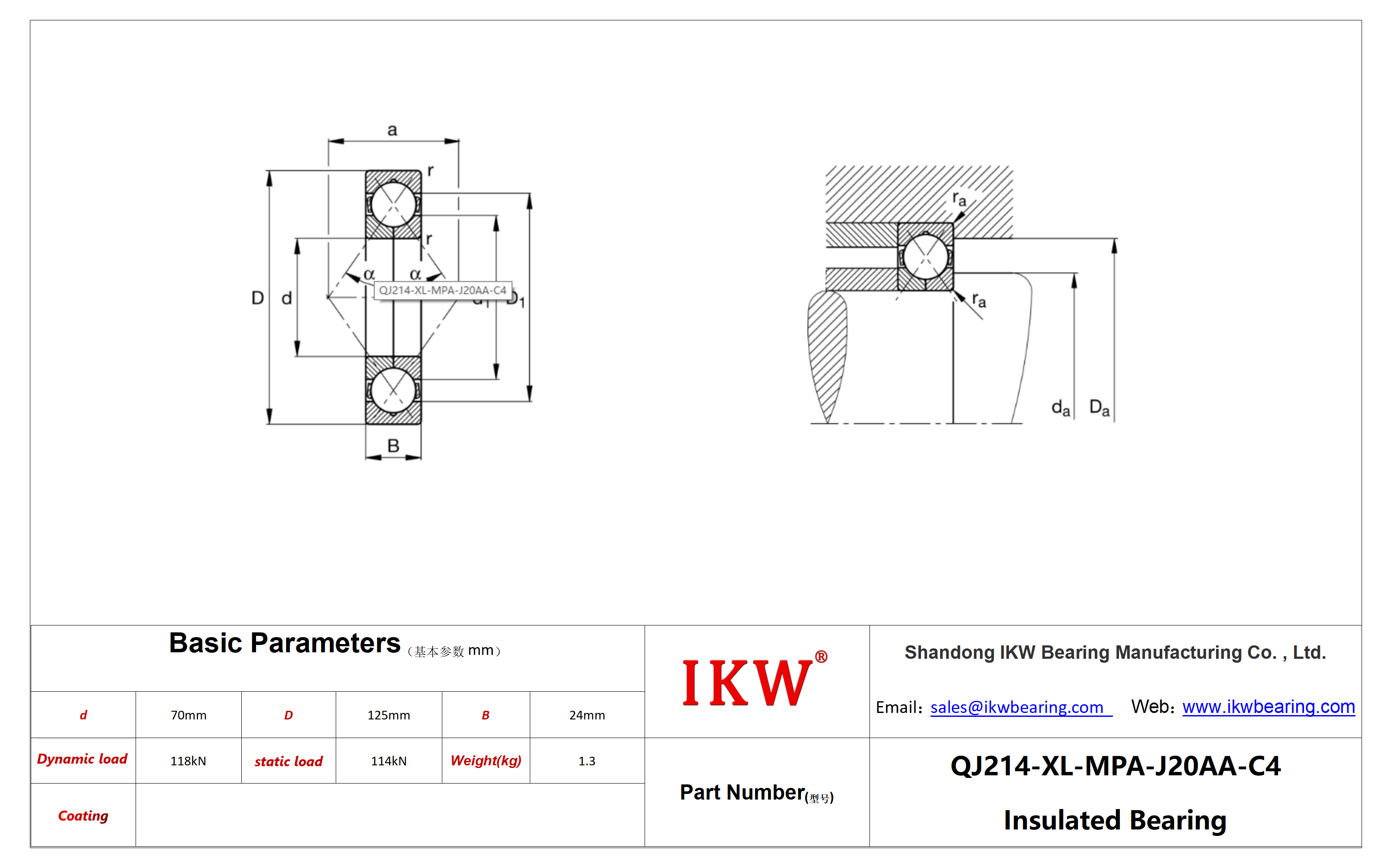

| Product Number | QJ214-XL-MPA-J20AA-C4 Bearing |
| Bore diameter(d) | 70 mm |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 125 mm |
| Outside diameter(D) | 125 mm |
| Width(B) | 24 mm |
| Width(B) | 24 mm |
| Basic dynamic load rating(Cr) | 118.000 N |
| Basic dynamic load rating(Cr) | 118.000 N |
| Basic static load rating(Cor) | 114.000 N |
| Basic static load rating(Cor) | 114.000 N |
| Limiting speed(nG) | 10.700 1/min |
| Limiting speed(nG) | 10.700 1/min |
| Reference speed(nϑr) | 4.700 1/min |
| Reference speed(nϑr) | 4.700 1/min |
| Weight(mass) | 1,3 kg |
| Weight(mass) | 1,3 kg |
| Cage | MPA |
| Cage | MPA |
| Coating | J20AA |
| Coating | J20AA |
| da | 79 mm |
| da | 79 mm |
| Da | 116 mm |
| Da | 116 mm |
QJ214-XL-MPA-J20AA-C4 Bearing|Insulated deep groove ball bearings|deep groove ball bearings|Insulated bearing|current insulation bearing| QJ214.XL.MPA.J20AA.C4 Bearing
