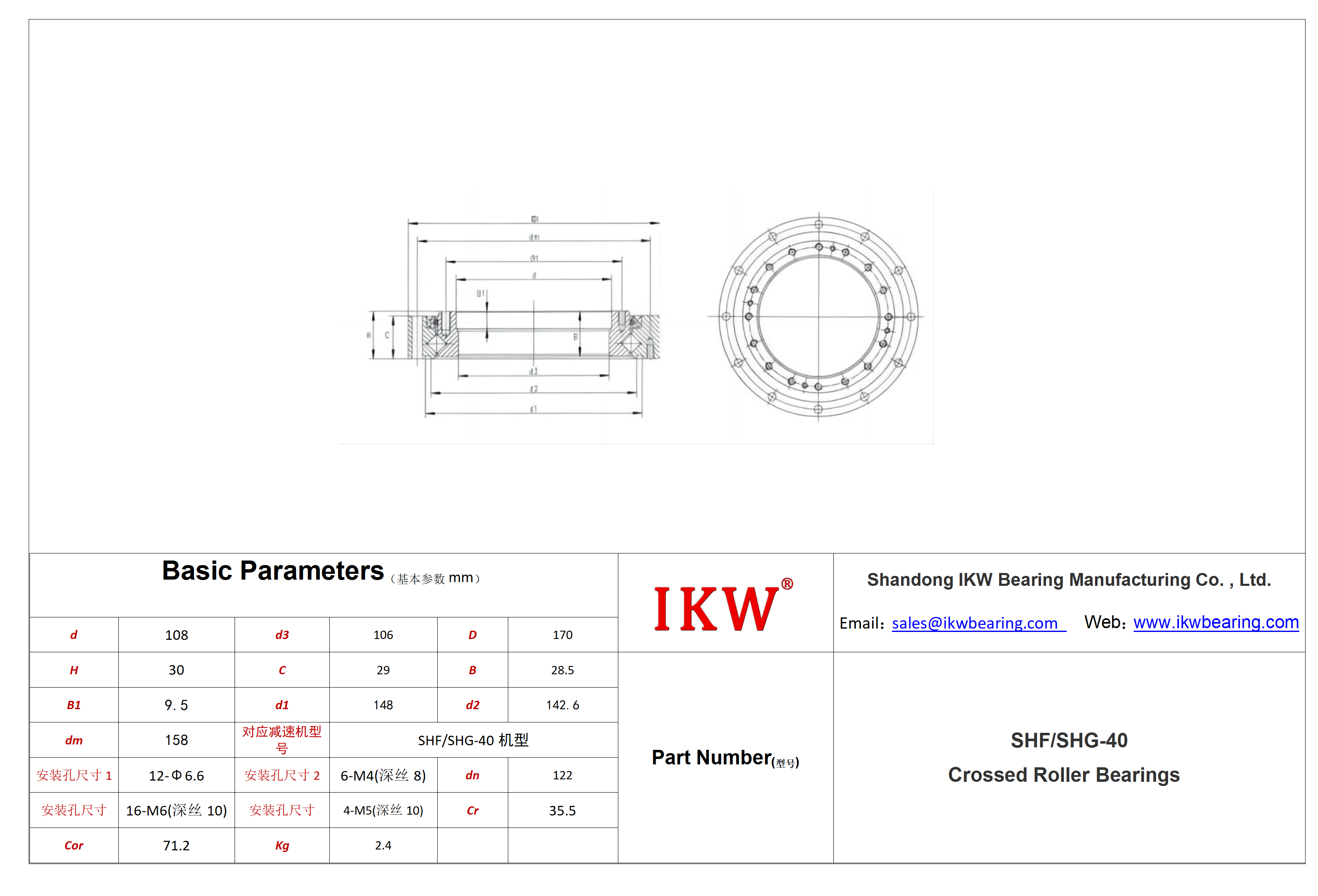

| Product Number | SHF/SHG-40 Bearing |
| d | 108 |
| d3 | 106 |
| D | 170 |
| H | 30 |
| C | 29 |
| C1 | |
| T | |
| B | 28.5 |
| B1 | 9.5 |
| H2 | |
| D1 | |
| D2 | |
| d1 | 148 |
| d2 | 142.6 |
| Dm | |
| dm | 158 |
| 外安装孔尺寸1 | 12-Φ6.6 |
| 外安装孔尺寸2 | |
| 中安装孔尺寸 | 6-M4(深丝8) |
| dn | 122 |
| 内安装孔尺寸1 | |
| 中安装孔尺寸 | 16-M6(深丝10) |
| 中安装孔尺寸 | 4-M5(深丝10) |
| dL | |
| 内安装孔尺寸2 | |
| rmin | |
| rmin(内) | |
| rmin(外） | |
| Dwp | |
| Z-Dw | |
| Cr(kN) | 35.5 |
| Cor(kN) | 71.2 |
| Kg | 2.4 |
| 对应减速机型号 | SHF/SHG-40 机型 |
| Fw | |
| Ew | |
| Bc | |
| Rsmin | |
| RV减速器型号 | |
| GB轴承型号 | |
| 最大径向变形量 | |
| 输入转速 | |
| 输出力矩 | |
| 谐波减速器型号 |
SHF/SHG-40 Bearing|Precision Cross Bearing|Special Bearings For Robot Harmonic Reducers | CSD seriesSHF/SHG-40_Bearing
