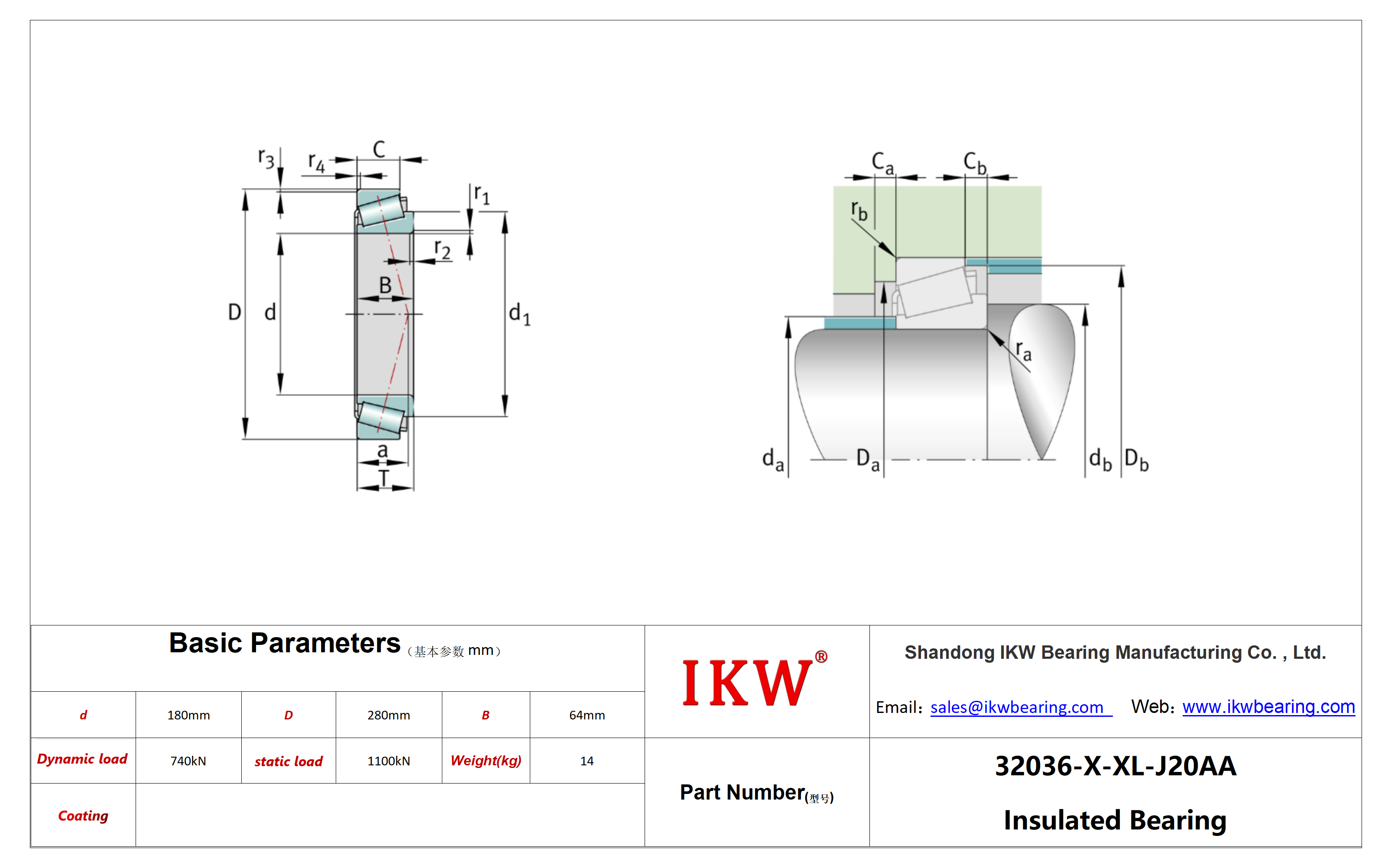

| Product Number | 32036-X-XL-J20AA Bearing |
| Bore diameter(d) | 180 mm |
| Outside diameter(D) | 280 mm |
| Width(B) | 64 mm |
| Cage | Standard |
| Basic dynamic load rating(Cr) | 740.000 N |
| Basic static load rating(Cor) | 1.100.000 N |
| Limiting speed(nG) | 2.800 1/min |
| Da max | 268 mm |
| ra max | 3 mm |
| Weight(mass) | 14 kg |
| d1 | 228 mm |
| Reference speed(nϑr) | 1.510 1/min |
| Tmin | -30 °C |
| Tmax | 200 °C |
32036-X-XL-J20AA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|32036.X.XL.J20AA Bearing
