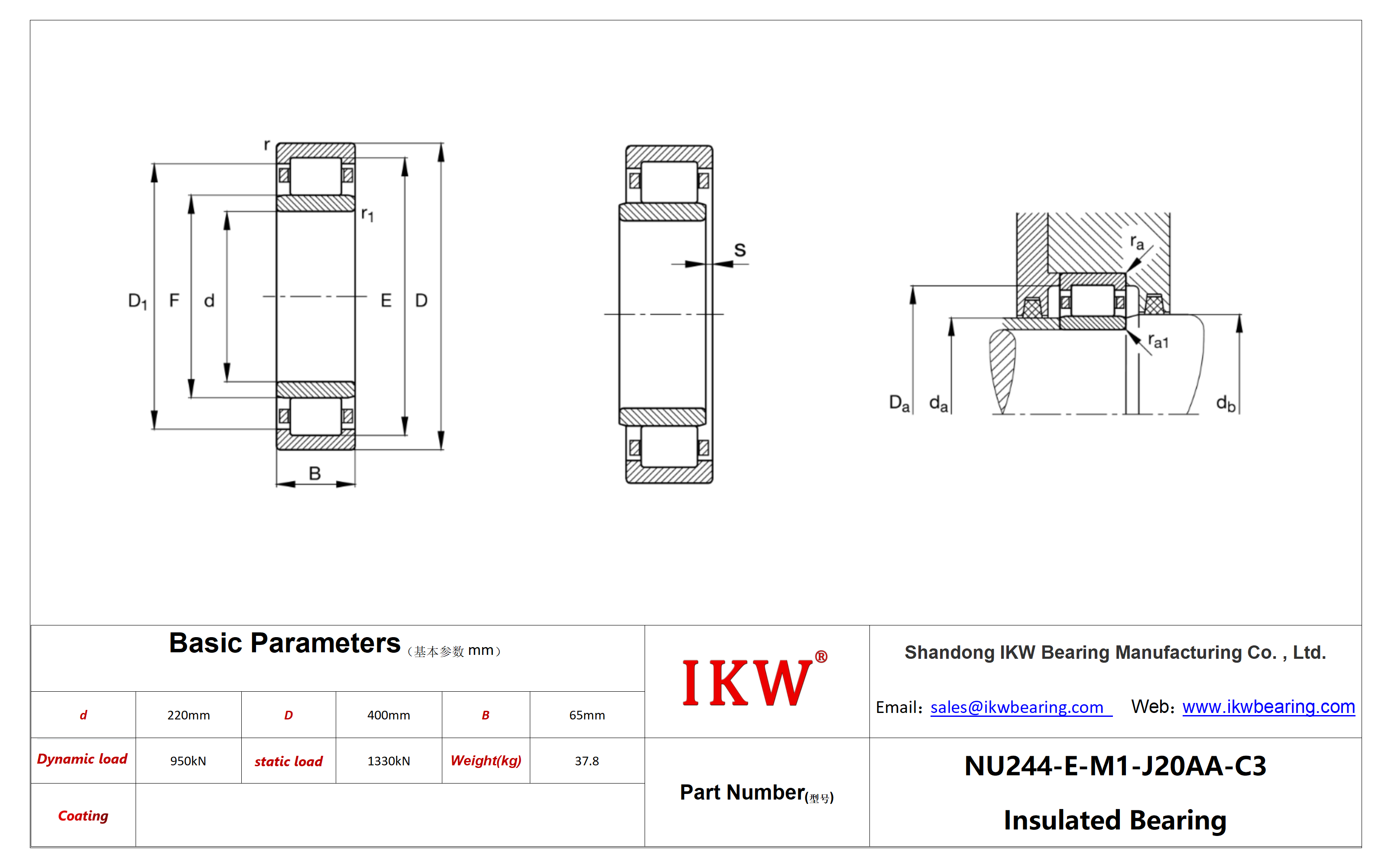

| Product Number | NU244-E-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 220 mm |
| Outside diameter(D) | 400 mm |
| Width(B) | 65 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 950.000 N |
| Basic static load rating(Cor) | 1.330.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 2.600 1/min |
| da min | 237 mm |
| Da max | 383 mm |
| ra max | 3 mm |
| Weight(mass) | 37,8 kg |
| rmin | 4 mm |
| D1 | 344,9 mm |
| Reference speed(nϑr) | 1.380 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU244-E-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU244.E.M1.J20AA.C3 Bearing
