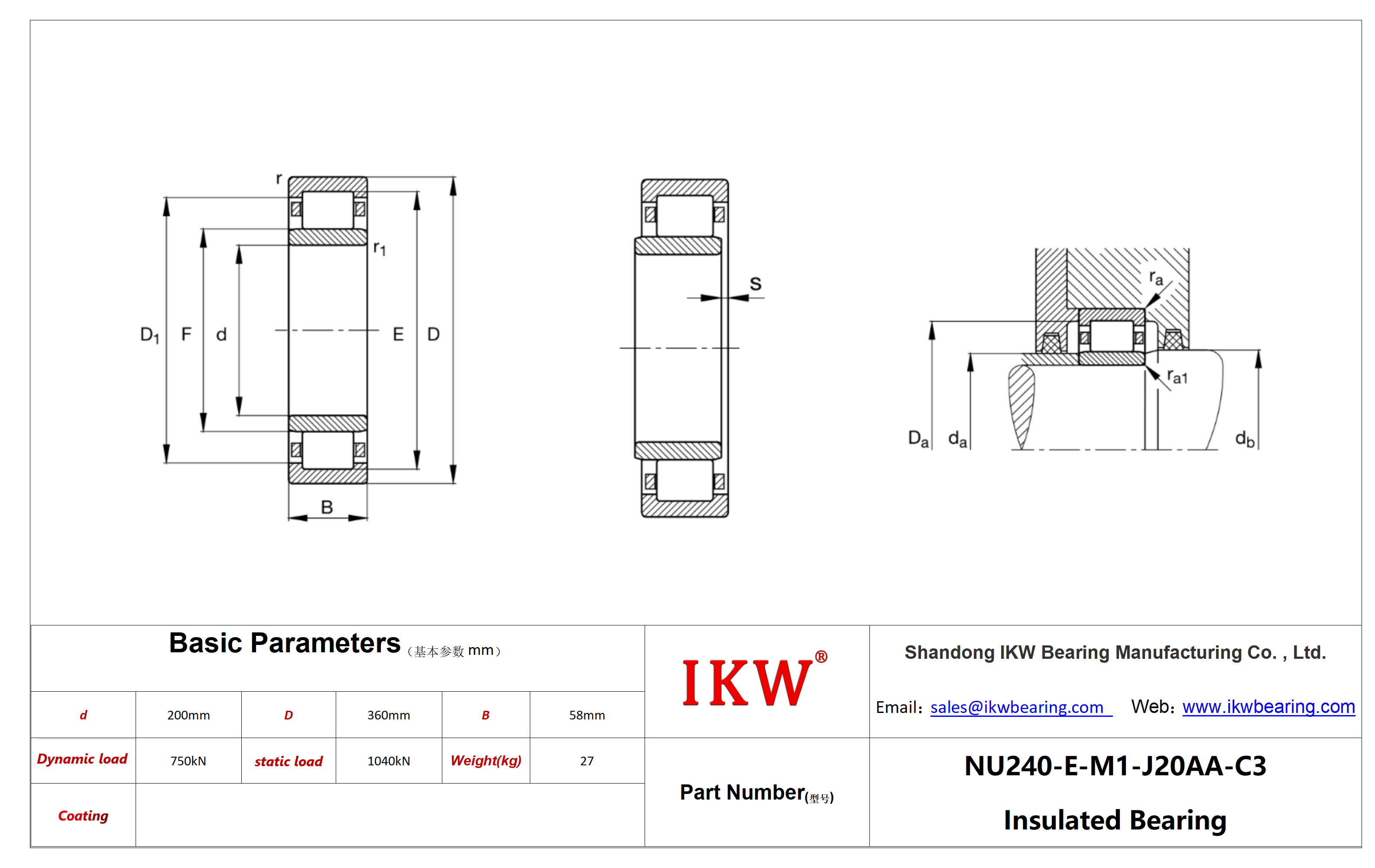

| Product Number | NU240-E-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 200 mm |
| Outside diameter(D) | 360 mm |
| Width(B) | 58 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 750.000 N |
| Basic static load rating(Cor) | 1.040.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 2.900 1/min |
| da min | 217 mm |
| Da max | 343 mm |
| ra max | 3 mm |
| Weight(mass) | 27 kg |
| rmin | 4 mm |
| D1 | 311,5 mm |
| Reference speed(nϑr) | 1.600 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU240-E-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU240.E.M1.J20AA.C3 Bearing
