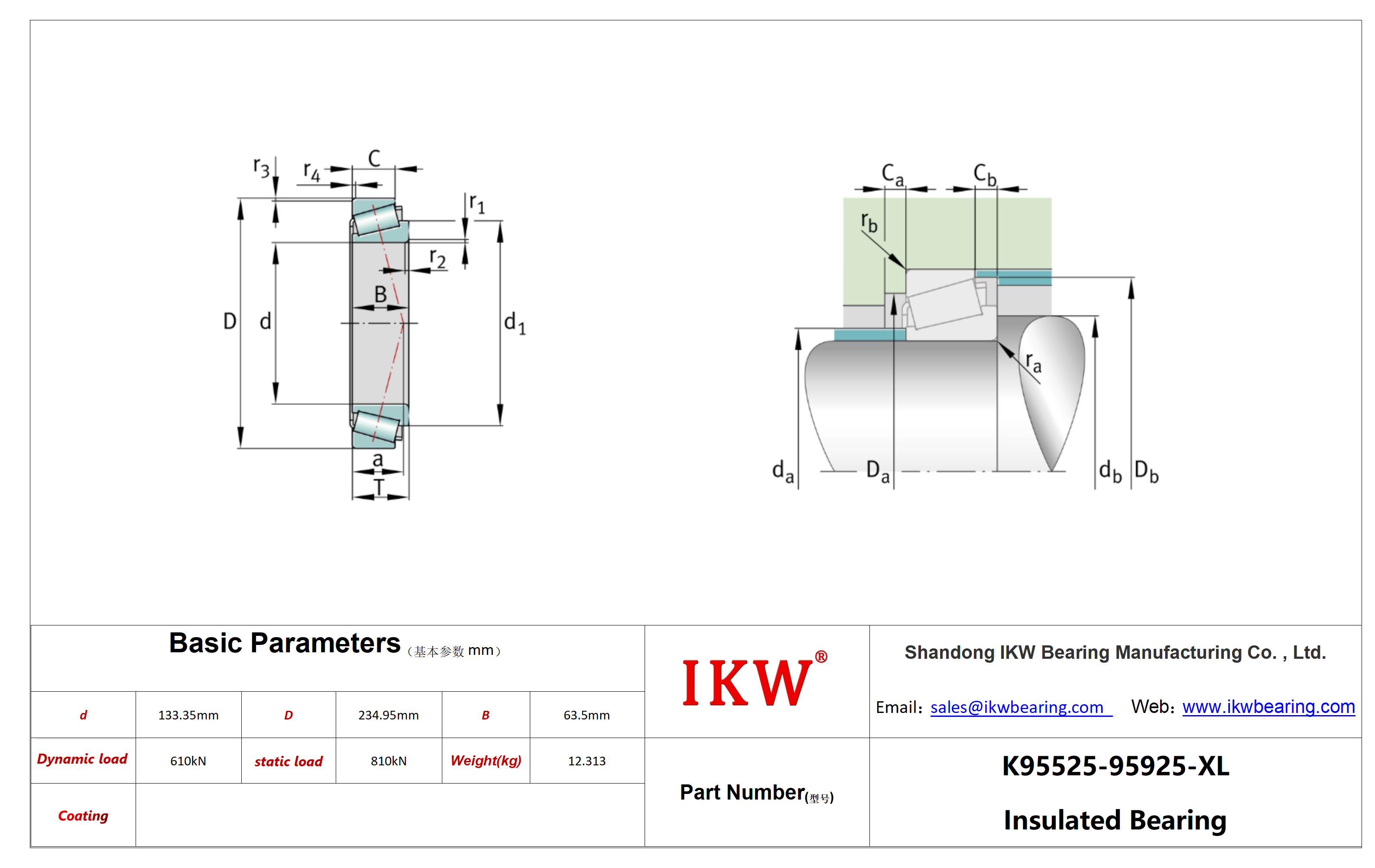

| Product Number | K95525-95925-XL Bearing |
| Bore diameter(d) | 133,35 mm |
| Outside diameter(D) | 234,95 mm |
| Width(B) | 63,5 mm |
| Cage | Standard |
| Basic dynamic load rating(Cr) | 610.000 N |
| Basic static load rating(Cor) | 810.000 N |
| Da max | 221 mm |
| ra max | 9,7 mm |
| Weight(mass) | 11 kg |
| d1 | 178 mm |
| rmin | 9,7 mm |
| Reference speed(nϑr) | 2.180 1/min |
| Tmin | -30 °C |
| Tmax | 200 °C |
K95525-95925-XL Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|K95525.95925.XL Bearing
