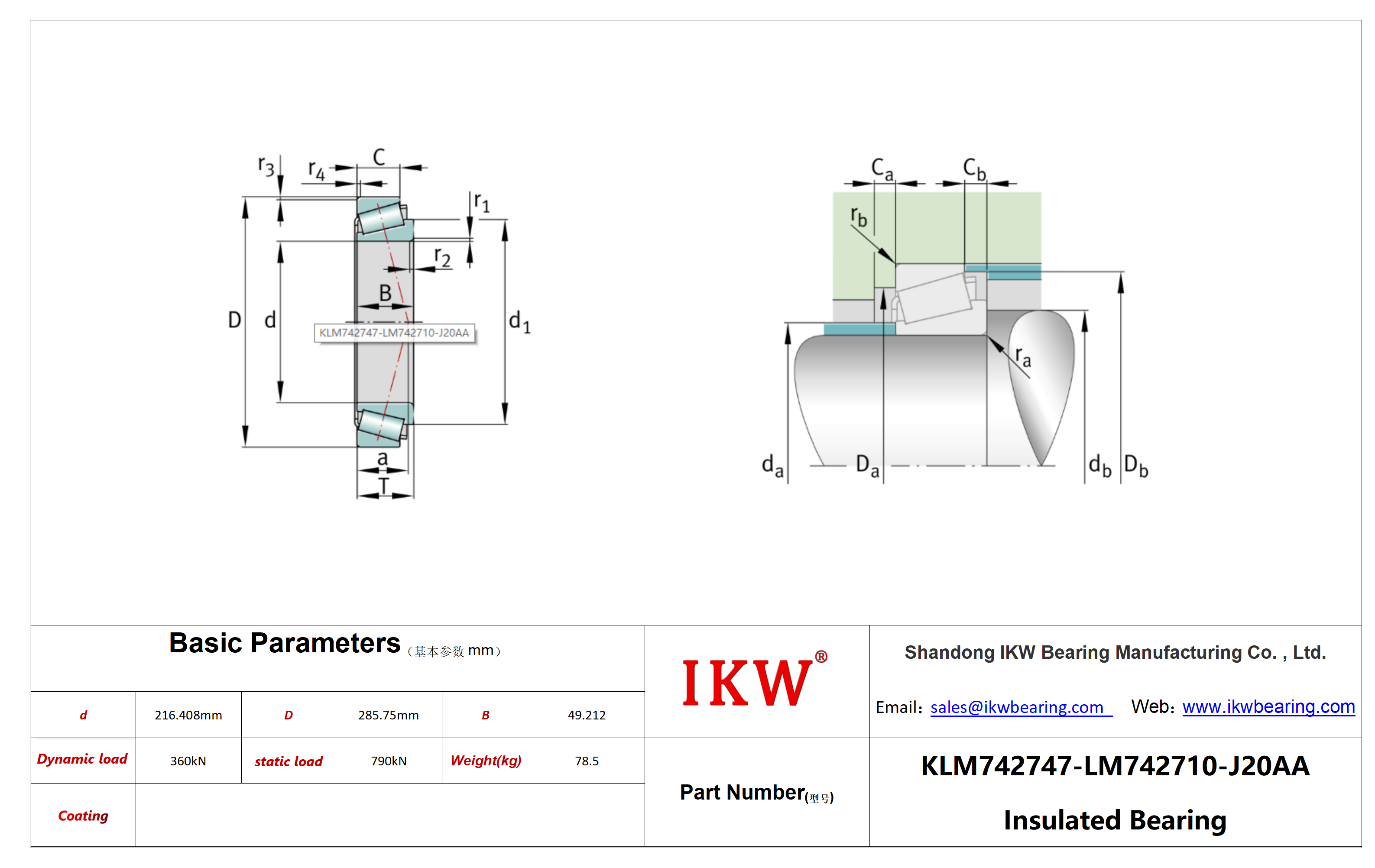

| Product Number | KLM742747-LM742710-J20AA Bearing |
| Bore diameter(d) | 216,408 mm |
| Outside diameter(D) | 285,75 mm |
| Width(B) | 49,212 mm |
| Cage | Standard |
| Basic dynamic load rating(Cr) | 360.000 N |
| Basic static load rating(Cor) | 790.000 N |
| Limiting speed(nG) | 2.240 1/min |
| Da max | 272 mm |
| ra max | 3,6 mm |
| Weight(mass) | 7,85 kg |
| d1 | 255 mm |
| rmin | 3,6 mm |
| Reference speed(nϑr) | 1.380 1/min |
| Tmin | -30 °C |
| Tmax | 200 °C |
KLM742747-LM742710-J20AA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|KLM742747.LM742710.J20AA Bearing
