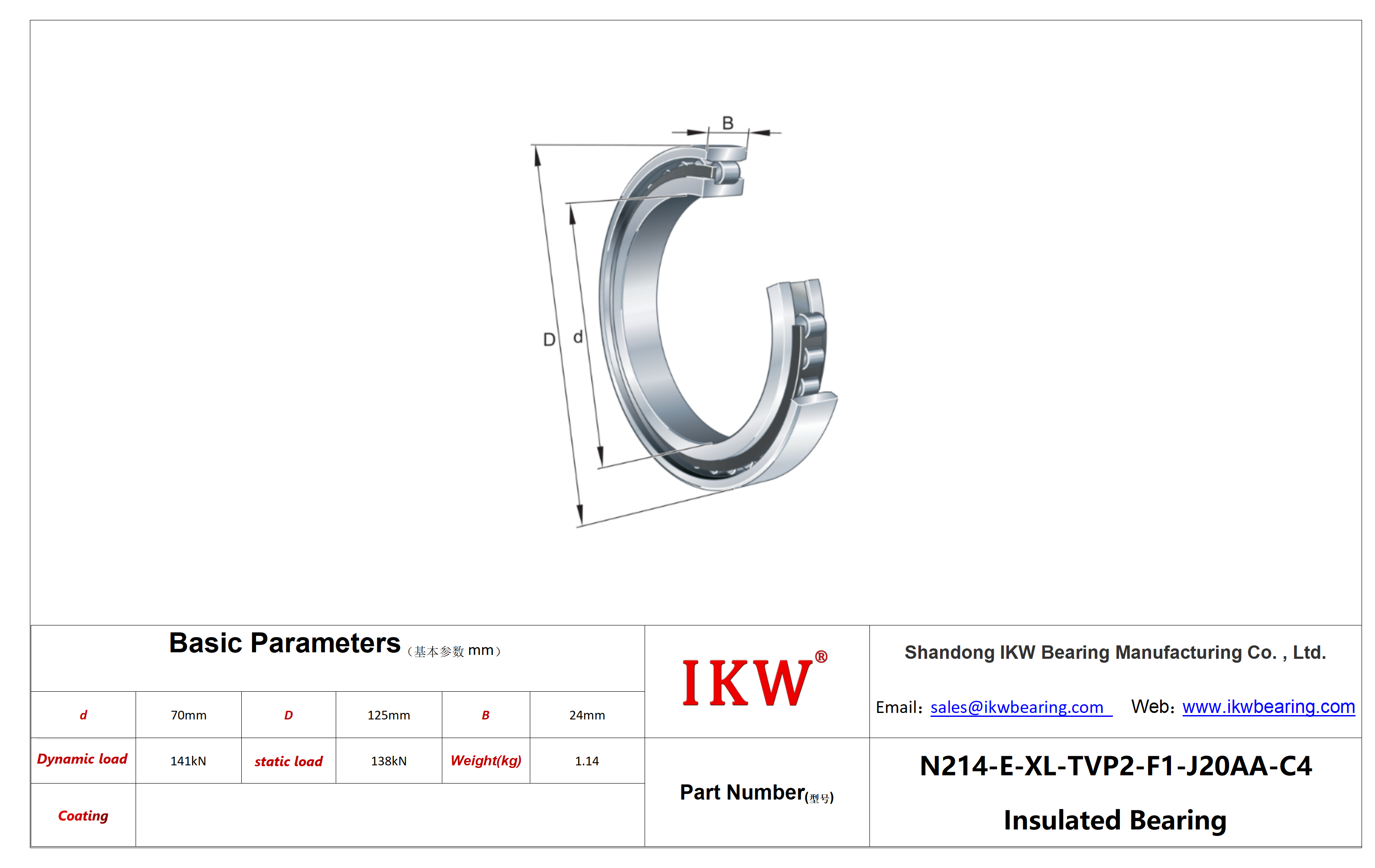

| Product Number | N214-E-XL-TVP2-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 125 mm |
| Width(B) | 24 mm |
| Cage | TVP2 |
| Basic dynamic load rating(Cr) | 141.000 N |
| Basic static load rating(Cor) | 138.000 N |
| Limiting speed(nG) | 7.800 1/min |
| Lubricant | Limiting speed for oil lubrication |
| da min | 79 mm |
| Da max | 116 mm |
| ra max | 1,5 mm |
| Weight(mass) | 1,14 kg |
| rmin | 1,5 mm |
| Tmin | -30 °C |
| Tmax | 120 °C |
N214-E-XL-TVP2-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|N214.E.XL.TVP2.F1.J20AA.C4 Bearing
