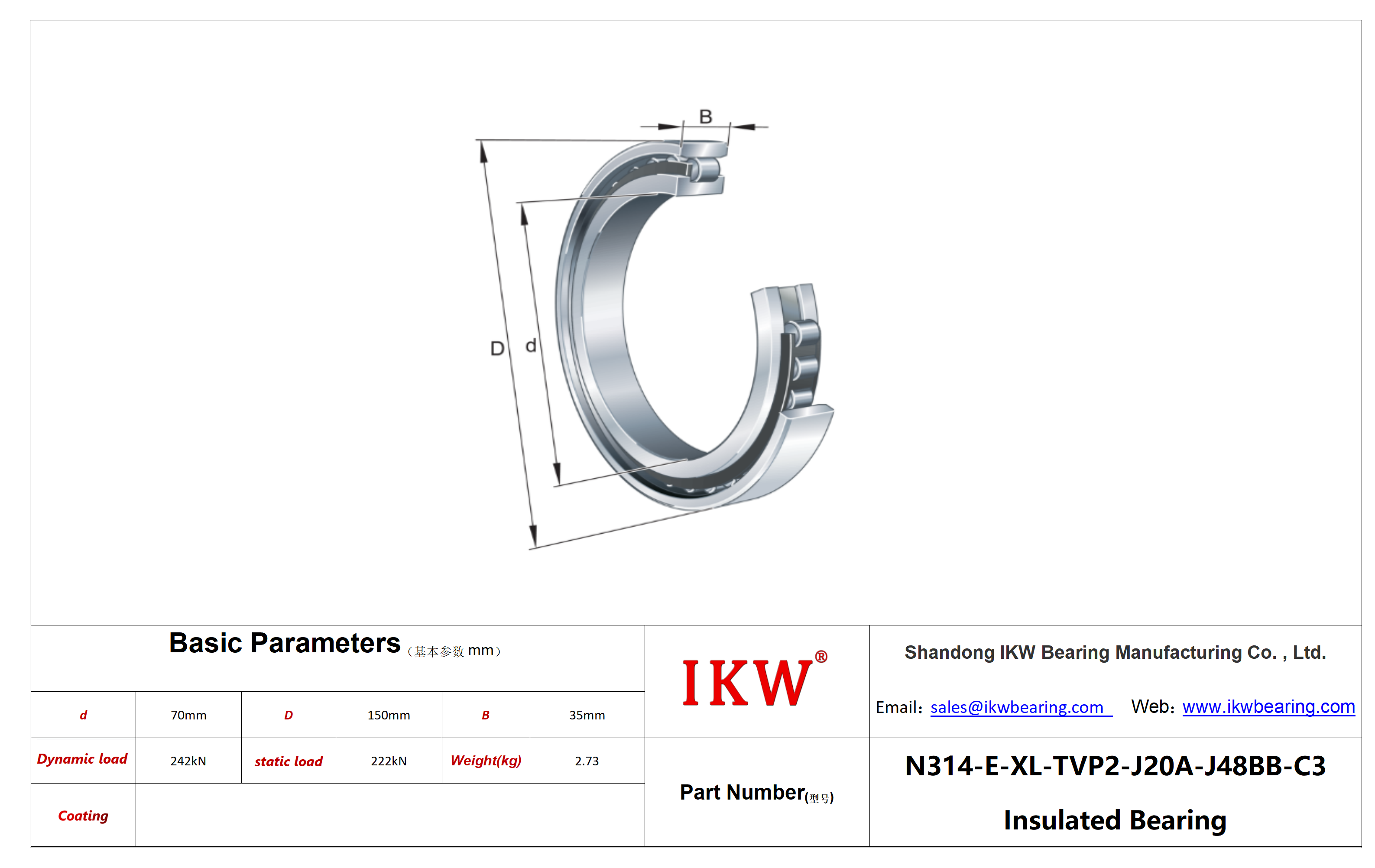

| Product Number | N314-E-XL-TVP2-J20A-J48BB-C3 Bearing |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 150 mm |
| Width(B) | 35 mm |
| Cage | TVP2 |
| Basic dynamic load rating(Cr) | 242.000 N |
| Basic static load rating(Cor) | 222.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 6.300 1/min |
| da min | 82 mm |
| Da max | 138 mm |
| ra max | 2,1 mm |
| Weight(mass) | 2,73 kg |
| rmin | 2,1 mm |
| Tmin | -30 °C |
| Tmax | 120 °C |
N314-E-XL-TVP2-J20A-J48BB-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|N314.E.XL.TVP2.J20A.J48BB.C3 Bearing
