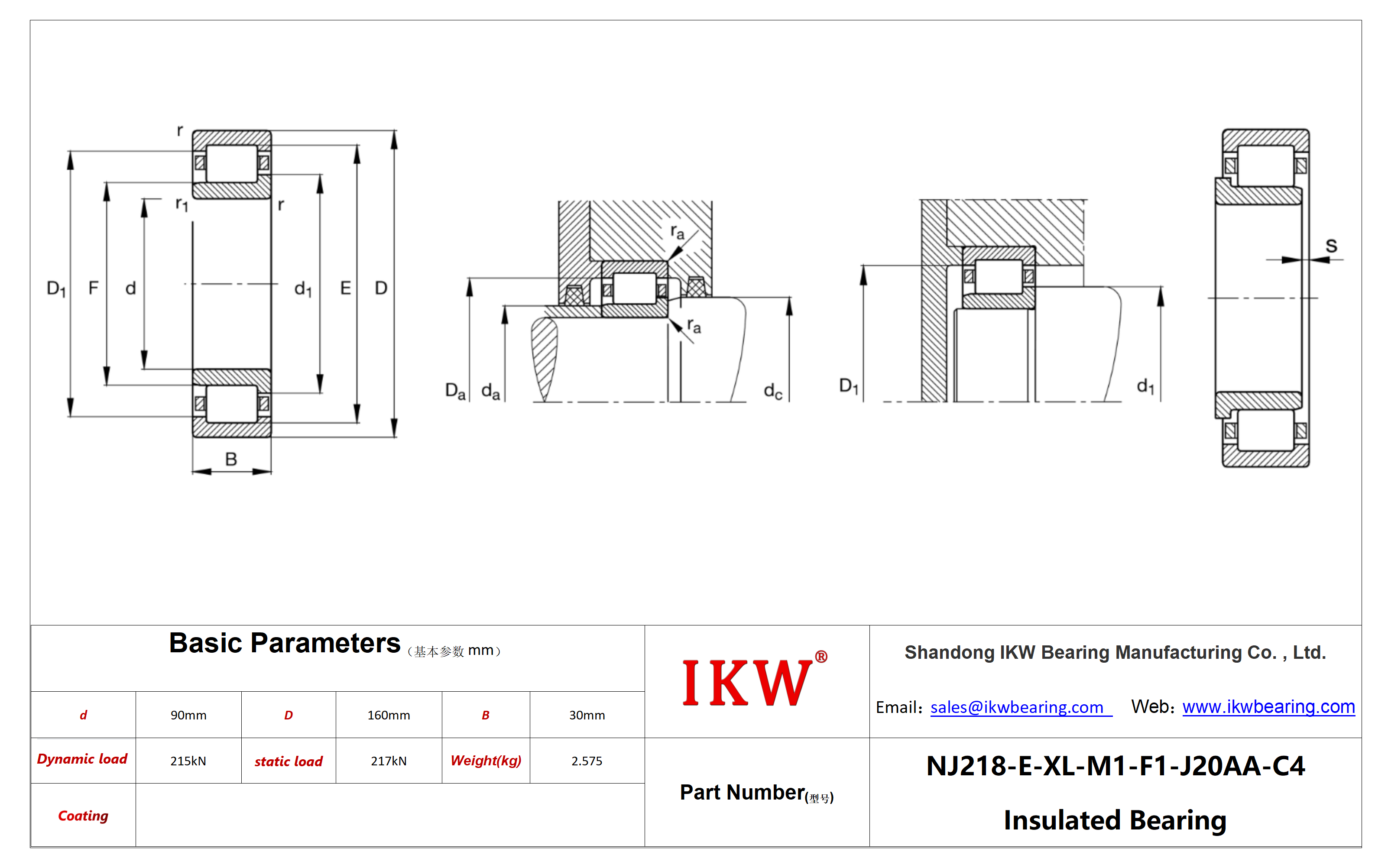

| Product Number | NJ218-E-XL-M1-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 90 mm |
| Outside diameter(D) | 160 mm |
| Width(B) | 30 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 215.000 N |
| Basic static load rating(Cor) | 217.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 7.800 1/min |
| da min | 101 mm |
| Da max | 149 mm |
| ra max | 2 mm |
| Weight(mass) | 2,575 kg |
| d1 | 114,25 mm |
| rmin | 2 mm |
| D1 | 139,72 mm |
| Reference speed(nϑr) | 3.900 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NJ218-E-XL-M1-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NJ218.E.XL.M1.F1.J20AA.C4 Bearing
