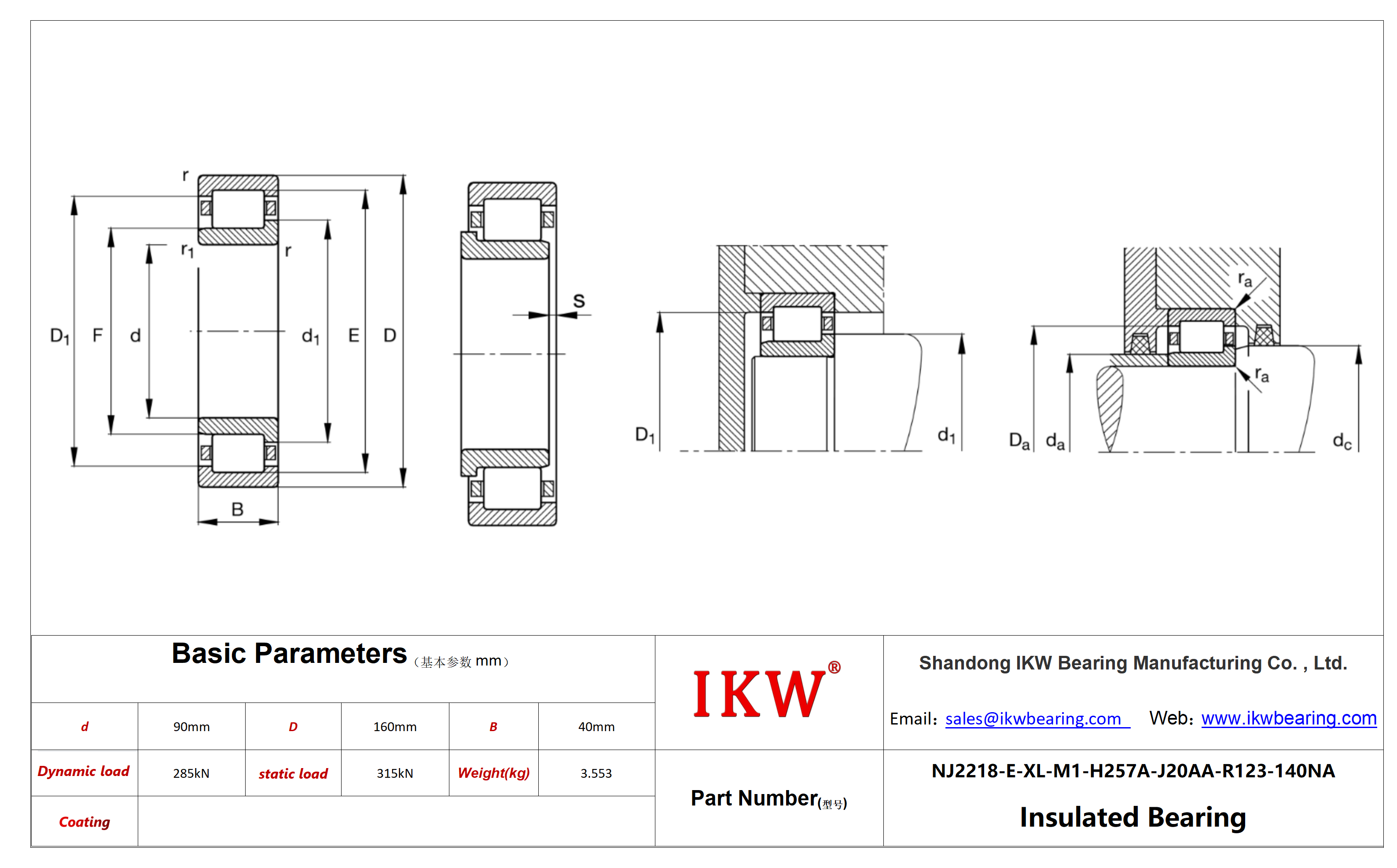

| Product Number | NJ2218-E-XL-M1-H257A-J20AA-R123-140NA Bearing |
| Bore diameter(d) | 90 mm |
| Outside diameter(D) | 160 mm |
| Width(B) | 40 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 285.000 N |
| Basic static load rating(Cor) | 315.000 N |
| Limiting speed(nG) | 7.800 1/min |
| da min | 101 mm |
| Da max | 149 mm |
| ra max | 2 mm |
| Weight(mass) | 3,553 kg |
| d1 | 114,25 mm |
| rmin | 2 mm |
| D1 | 139,72 mm |
| Reference speed(nϑr) | 3.250 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NJ2218-E-XL-M1-H257A-J20AA-R123-140NA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NJ2218.E.XL.M1.H257A.J20AA.R123.140NA Bearing
