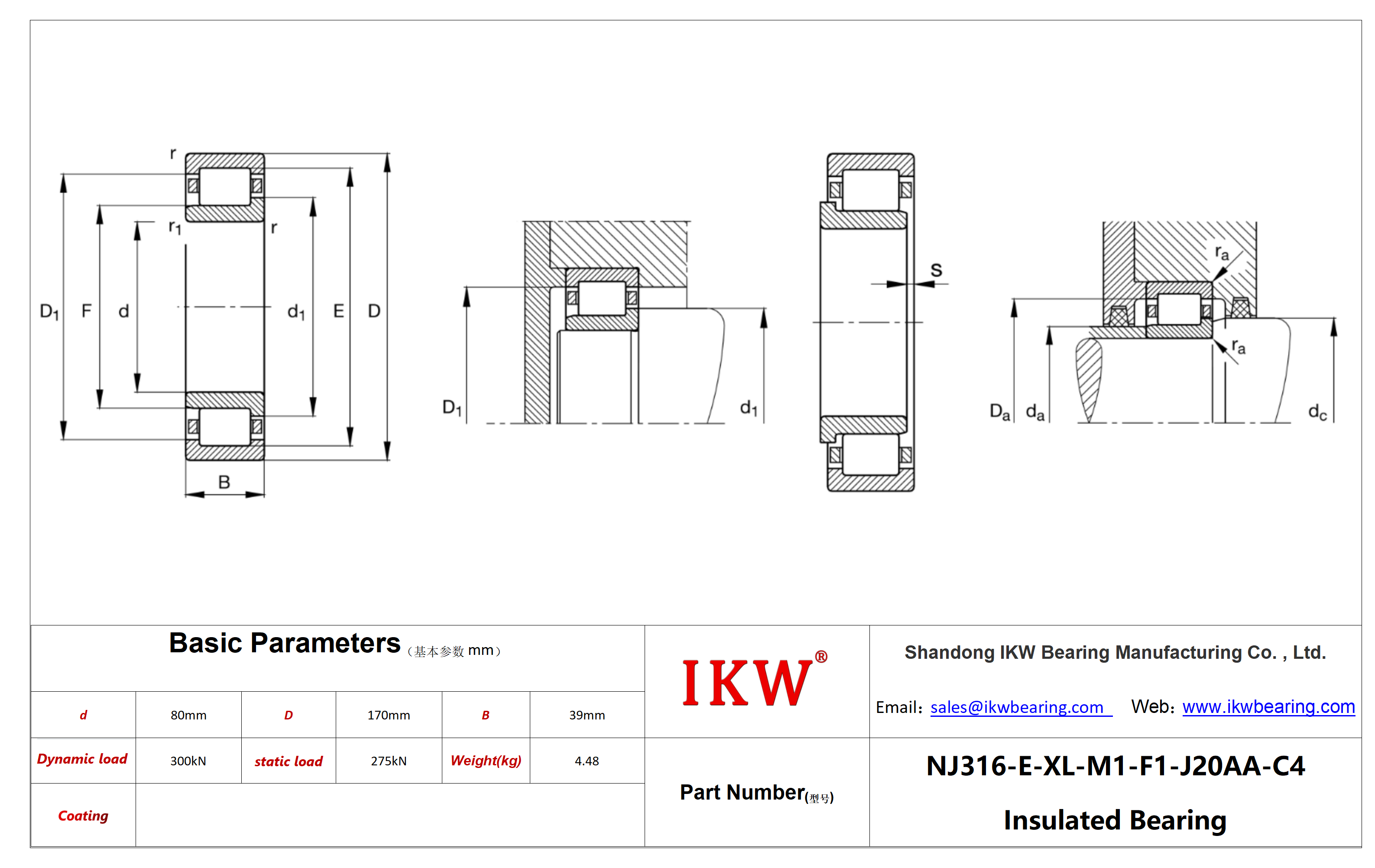

| Product Number | NJ316-E-XL-M1-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 80 mm |
| Outside diameter(D) | 170 mm |
| Width(B) | 39 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 300.000 N |
| Basic static load rating(Cor) | 275.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 7.200 1/min |
| da min | 92 mm |
| Da max | 158 mm |
| ra max | 2 mm |
| Weight(mass) | 4,48 kg |
| d1 | 110,4 mm |
| rmin | 2,1 mm |
| D1 | 143,94 mm |
| Reference speed(nϑr) | 4.100 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
