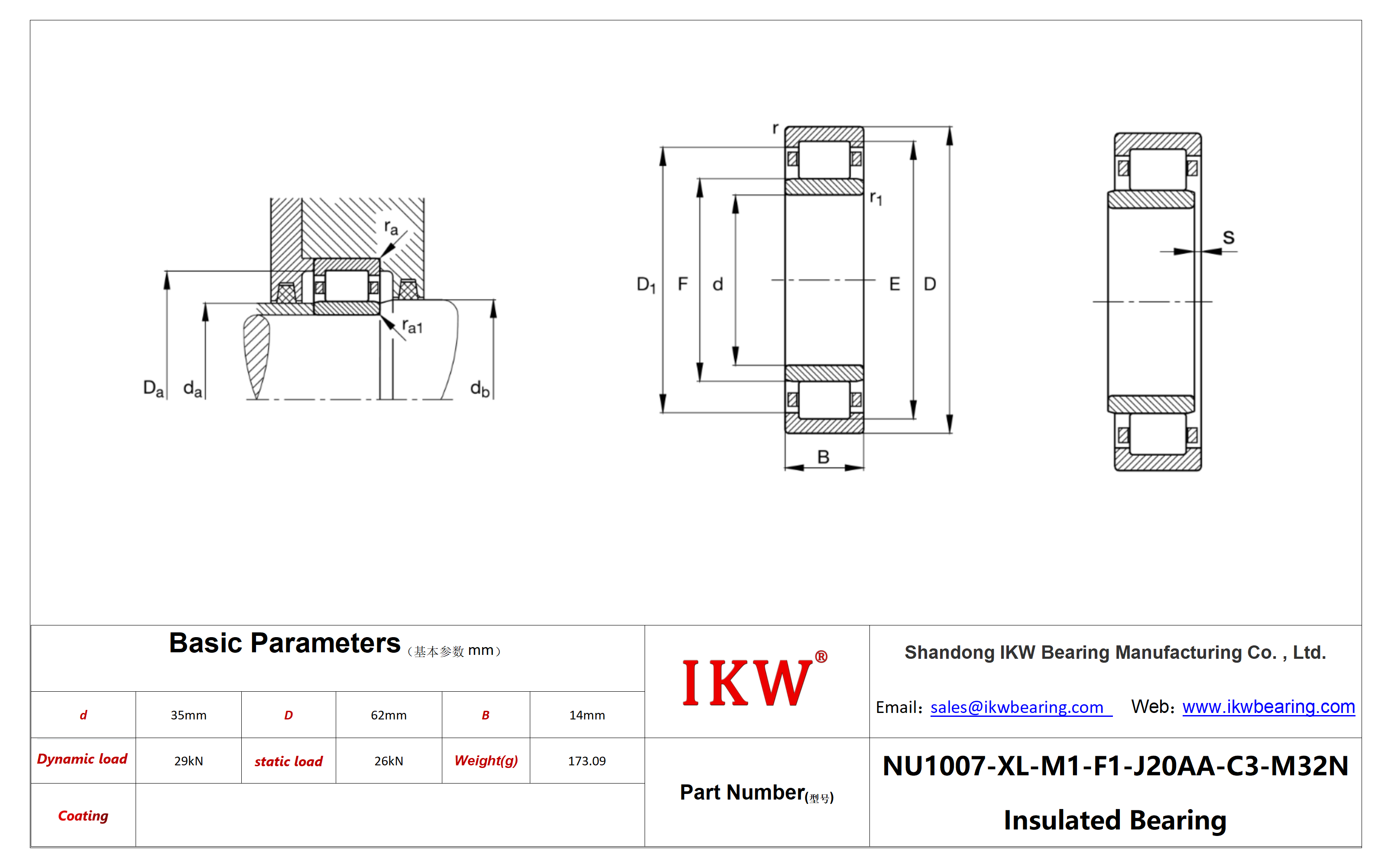

| Product Number | NU1007-XL-M1-F1-J20AA-C3-M32N Bearing |
| Bore diameter(d) | 35 mm |
| Bore diameter(d) | 35 mm |
| Outside diameter(D) | 62 mm |
| Outside diameter(D) | 62 mm |
| Width(B) | 14 mm |
| Width(B) | 14 mm |
| Cage | M1 |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 29.000 N |
| Basic dynamic load rating(Cr) | 29.000 N |
| Basic static load rating(Cor) | 26.000 N |
| Basic static load rating(Cor) | 26.000 N |
| Radial internal clearance | CN |
| Radial internal clearance | CN |
| Limiting speed(nG) | 22.700 1/min |
| Limiting speed(nG) | 22.700 1/min |
| da min | 38 mm |
| da min | 38 mm |
| Da max | 57 mm |
| Da max | 57 mm |
| ra max | 1 mm |
| ra max | 1 mm |
| Weight(mass) | 173,08 g |
| Weight(mass) | 173,08 g |
| rmin | 1 mm |
| rmin | 1 mm |
| D1 | 52,4 mm |
| D1 | 52,4 mm |
| Reference speed(nϑr) | 9.700 1/min |
| Reference speed(nϑr) | 9.700 1/min |
| Tmin | -30 °C |
| Tmin | -30 °C |
| Tmax | 150 °C |
| Tmax | 150 °C |
NU1007-XL-M1-F1-J20AA-C3-M32N Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1007.XL.M1.F1.J20AA.C3.M32N Bearing
