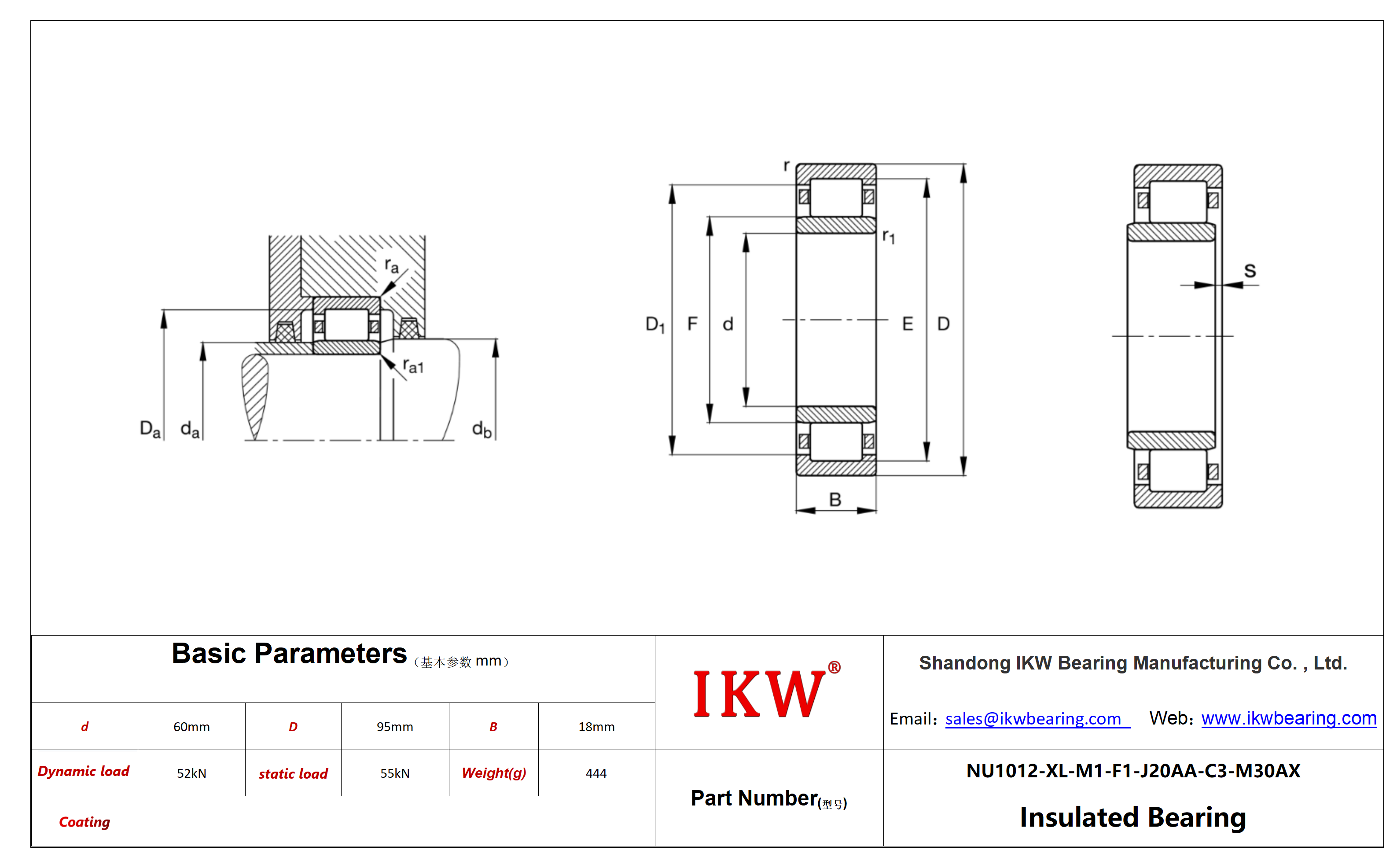

| Product Number | NU1012-XL-M1-F1-J20AA-C3-M30AX Bearing |
| Bore diameter(d) | 60 mm |
| Outside diameter(D) | 95 mm |
| Width(B) | 18 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 52.000 N |
| Basic static load rating(Cor) | 55.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 14.800 1/min |
| da min | 65 mm |
| Da max | 89 mm |
| ra max | 1,1 mm |
| Weight(mass) | 444 g |
| rmin | 1,1 mm |
| D1 | 82,3 mm |
| Reference speed(nϑr) | 6.400 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1012-XL-M1-F1-J20AA-C3-M30AX Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1012.XL.M1.F1.J20AA.C3.M30AX Bearing
