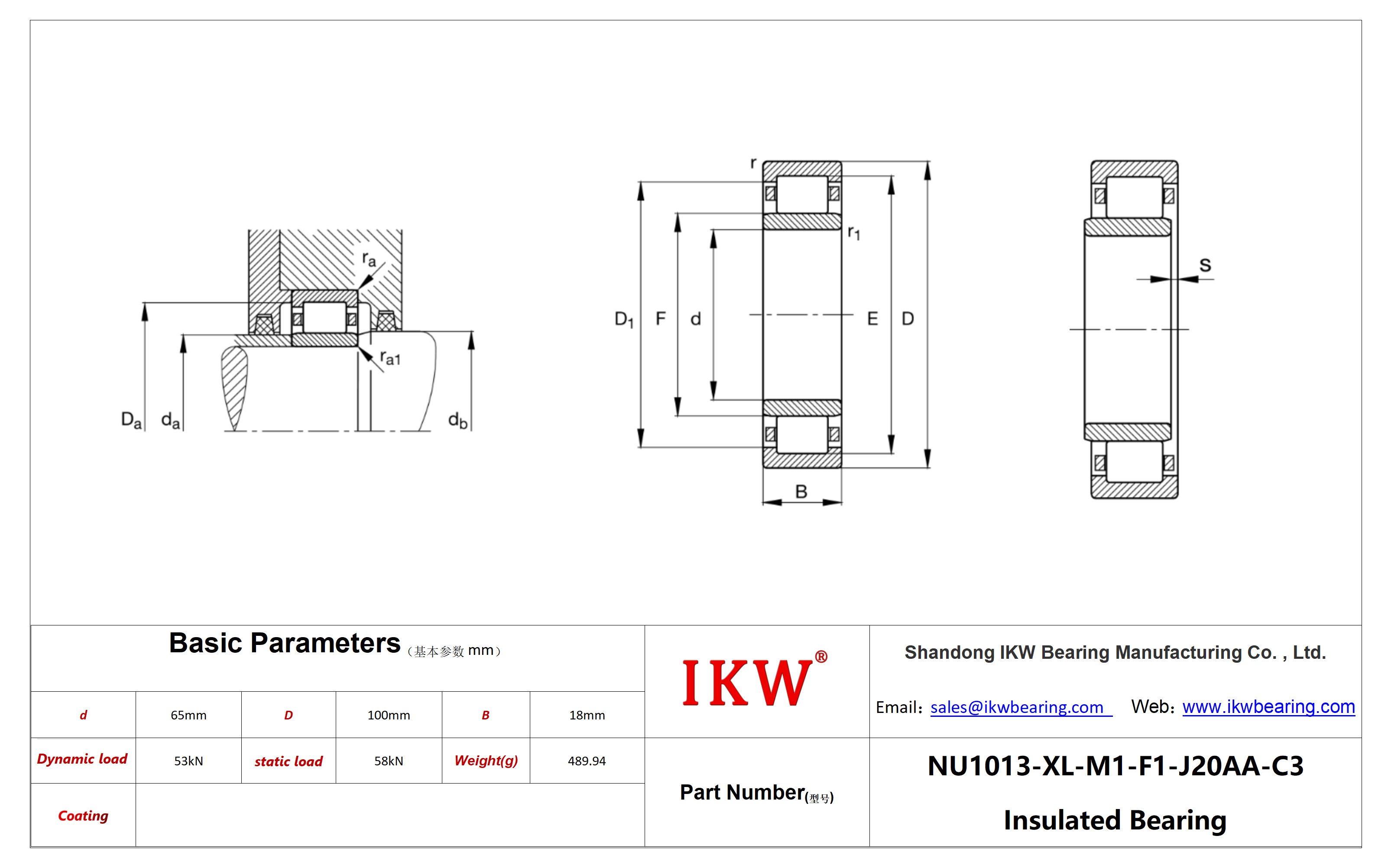

| Product Number | NU1013-XL-M1-F1-J20AA-C3 Bearing |
| Bore diameter(d) | 65 mm |
| Outside diameter(D) | 100 mm |
| Width(B) | 18 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 53.000 N |
| Basic static load rating(Cor) | 58.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 14.100 1/min |
| da min | 70 mm |
| Da max | 94 mm |
| ra max | 1,1 mm |
| Weight(mass) | 489,94 g |
| rmin | 1,1 mm |
| D1 | 87,3 mm |
| Reference speed(nϑr) | 5.900 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1013-XL-M1-F1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1013.XL.M1.F1.J20AA.C3 Bearing
