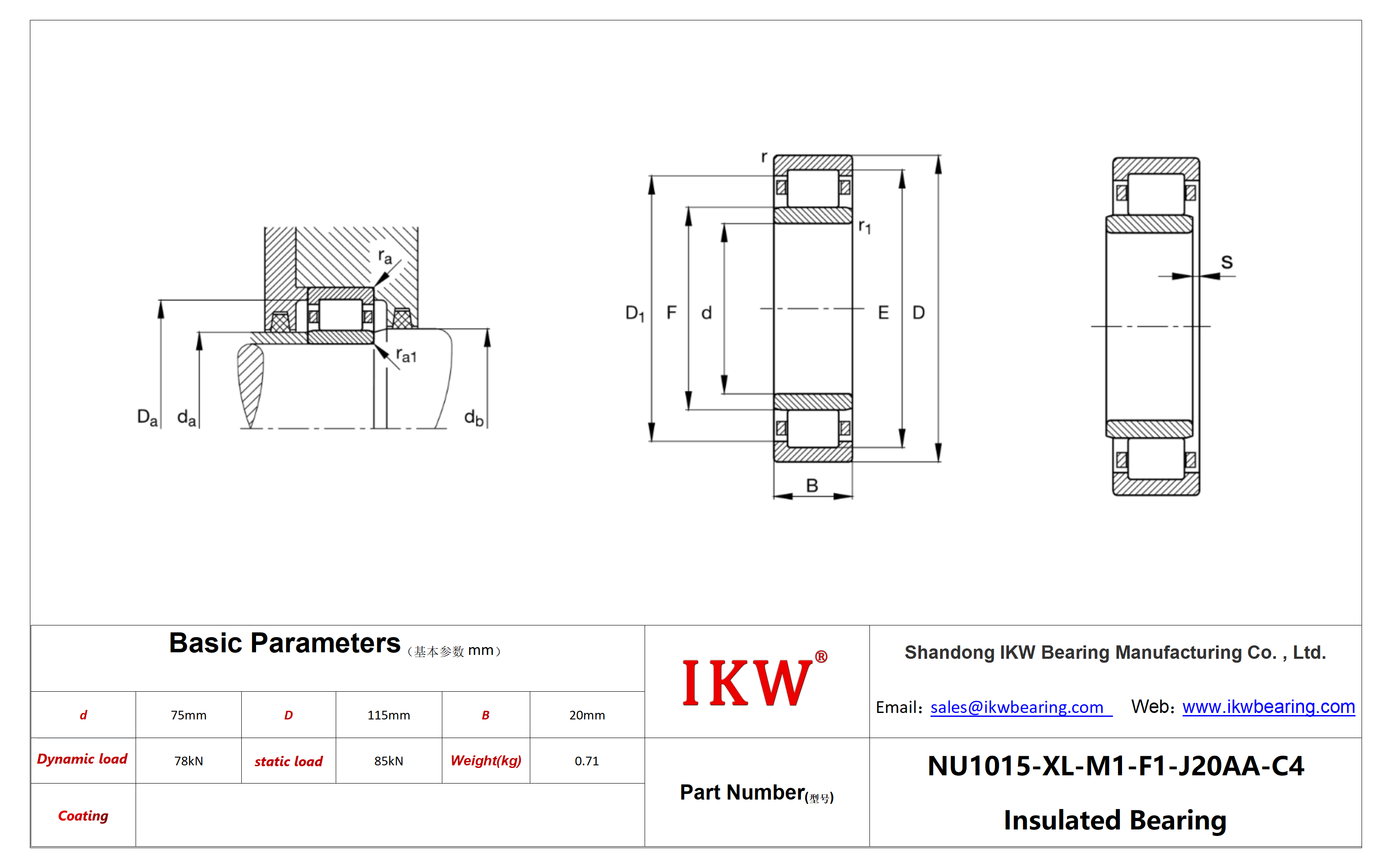

| Product Number | NU1015-XL-M1-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 75 mm |
| Outside diameter(D) | 115 mm |
| Width(B) | 20 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 78.000 N |
| Basic static load rating(Cor) | 85.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 11.800 1/min |
| da min | 80 mm |
| Da max | 109 mm |
| ra max | 1,1 mm |
| Weight(mass) | 0,71 kg |
| rmin | 1,1 mm |
| D1 | 101,7 mm |
| Reference speed(nϑr) | 5.200 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1015-XL-M1-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1015.XL.M1.F1.J20AA.C4 Bearing
