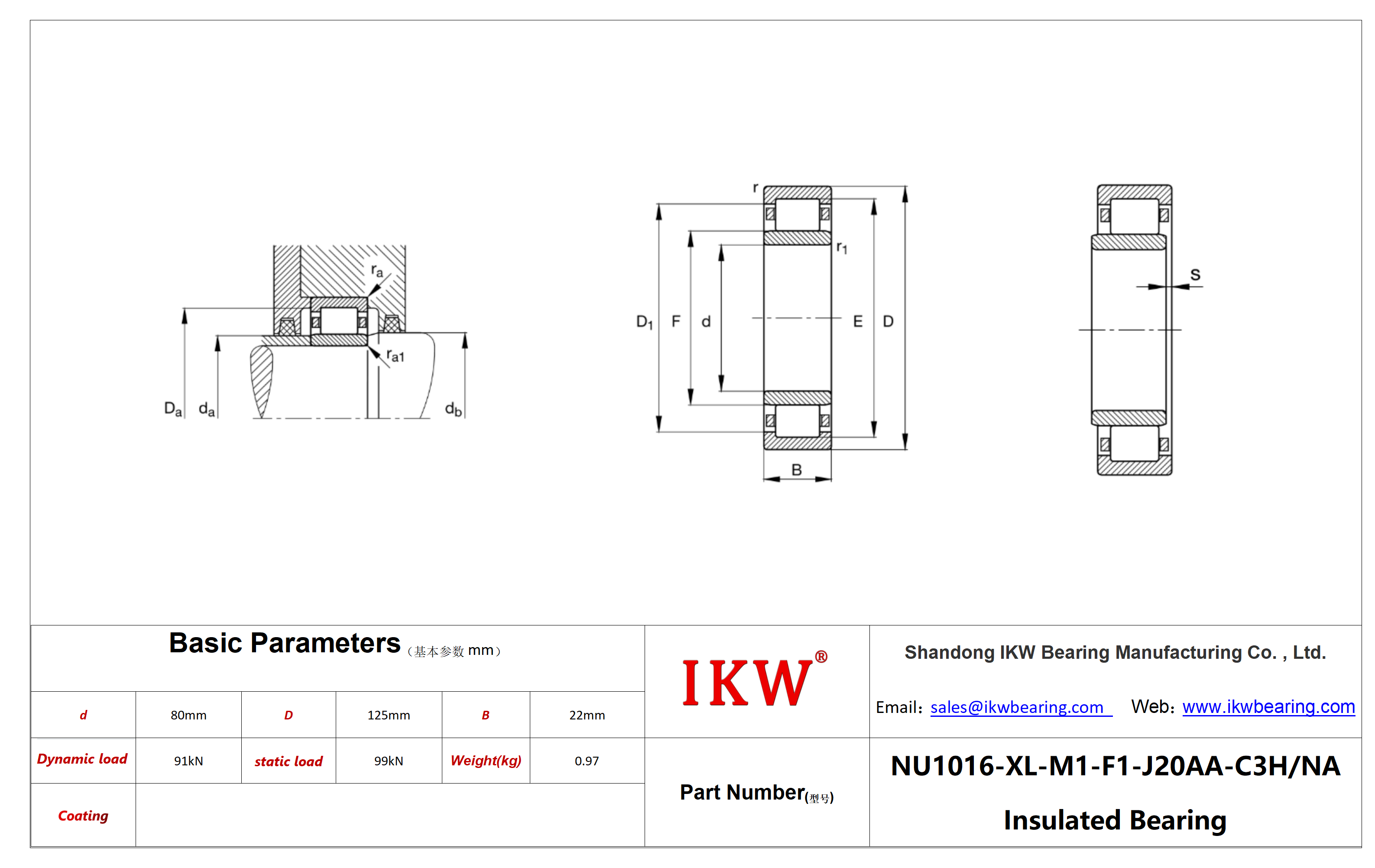

| Product Number | NU1016-XL-M1-F1-J20AA-C3H/NA Bearing |
| Bore diameter(d) | 80 mm |
| Outside diameter(D) | 125 mm |
| Width(B) | 22 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 91.000 N |
| Basic static load rating(Cor) | 99.000 N |
| Limiting speed(nG) | 10.800 1/min |
| da min | 85 mm |
| Da max | 119 mm |
| ra max | 1 mm |
| Weight(mass) | 0,97 kg |
| rmin | 1,1 mm |
| D1 | 109,8 mm |
| Reference speed(nϑr) | 5.000 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1016-XL-M1-F1-J20AA-C3H/NA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1016.XL.M1.F1.J20AA.C3H/NA Bearing
