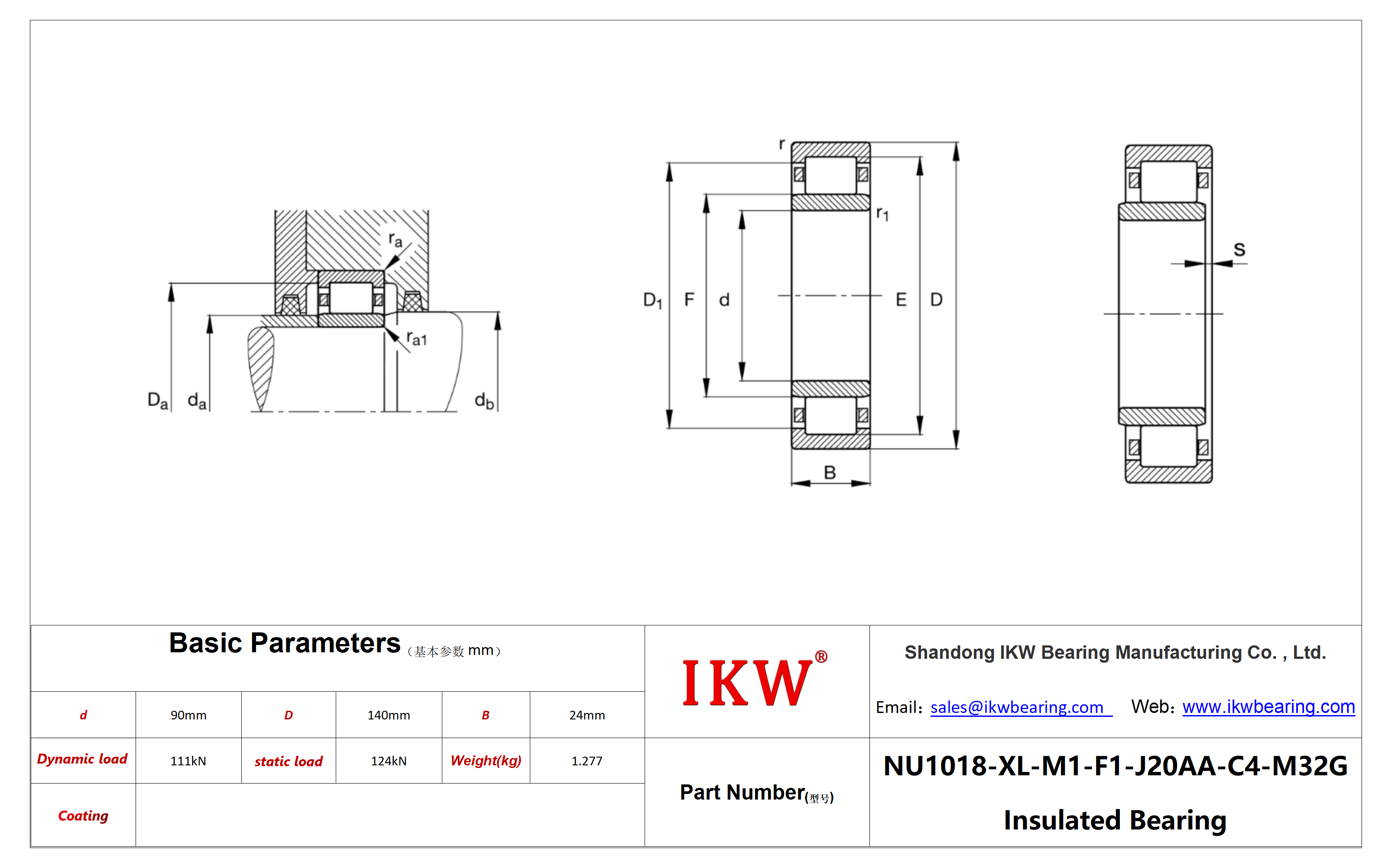

| Product Number | NU1018-XL-M1-F1-J20AA-C4-M32G Bearing |
| Bore diameter(d) | 90 mm |
| Outside diameter(D) | 140 mm |
| Width(B) | 24 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 111.000 N |
| Basic static load rating(Cor) | 124.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 9.600 1/min |
| da min | 96 mm |
| Da max | 133 mm |
| ra max | 1,5 mm |
| Weight(mass) | 1,277 kg |
| rmin | 1,5 mm |
| D1 | 122,9 mm |
| Reference speed(nϑr) | 4.550 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1018-XL-M1-F1-J20AA-C4-M32G Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1018.XL.M1.F1.J20AA.C4.M32G Bearing
