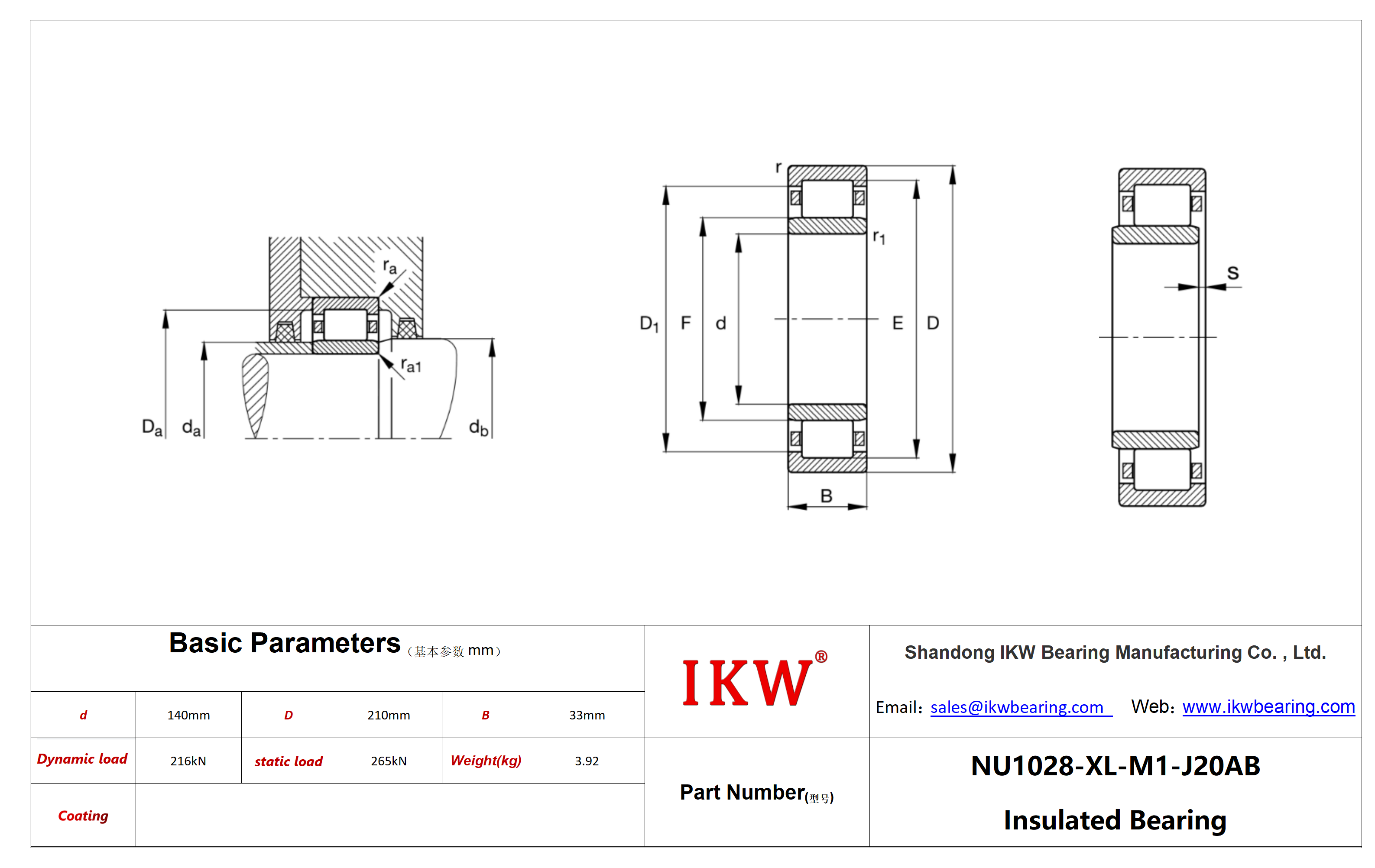

| Product Number | NU1028-XL-M1-J20AB Bearing |
| Bore diameter(d) | 140 mm |
| Outside diameter(D) | 210 mm |
| Width(B) | 33 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 216.000 N |
| Basic static load rating(Cor) | 265.000 N |
| Radial internal clearance | CN |
| Limiting speed(nG) | 6.200 1/min |
| da min | 146 mm |
| Da max | 201 mm |
| ra max | 2 mm |
| Weight(mass) | 3,92 kg |
| rmin | 2 mm |
| D1 | 185,9 mm |
| Reference speed(nϑr) | 3.250 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU1028-XL-M1-J20AB Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1028.XL.M1.J20AB Bearing
