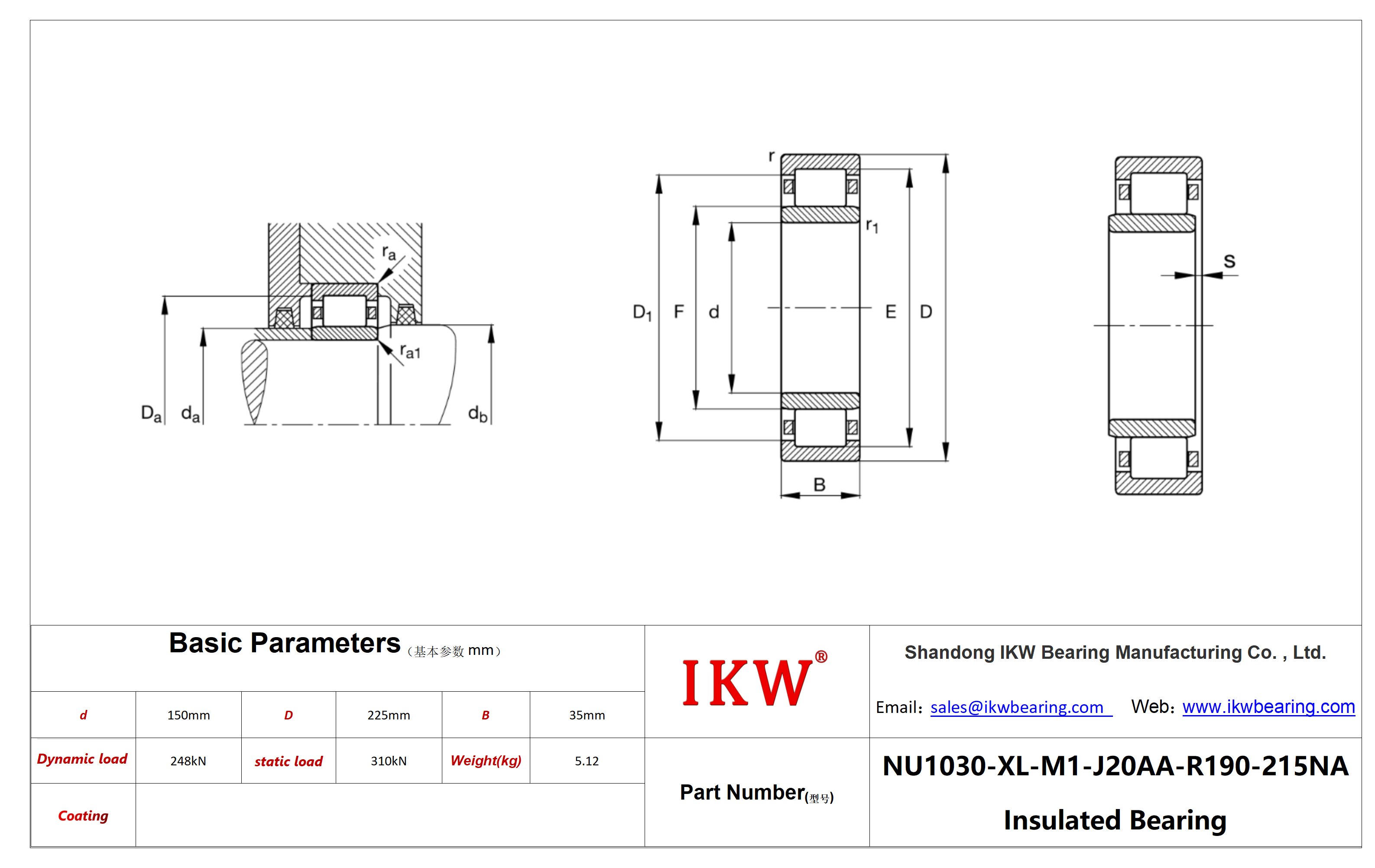

| Product Number | NU1030-XL-M1-J20AA-R190-215NA Bearing |
| Bore diameter(d) | 150 mm |
| Bore diameter(d) | 150 mm |
| Outside diameter(D) | 225 mm |
| Outside diameter(D) | 225 mm |
| Width(B) | 35 mm |
| Width(B) | 35 mm |
| Cage | M1 |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 248.000 N |
| Basic dynamic load rating(Cr) | 248.000 N |
| Basic static load rating(Cor) | 310.000 N |
| Limiting speed(nG) | 5.800 1/min |
| da min | 158 mm |
| Da max | 215 mm |
| ra max | 2,1 mm |
| Weight(mass) | 5,12 kg |
| rmin | 2,1 mm |
| D1 | 199 mm |
| Reference speed(nϑr) | 3.100 1/min |
NU1030-XL-M1-J20AA-R190-215NA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU1030.XL.M1.J20AA.R190.215NA Bearing
