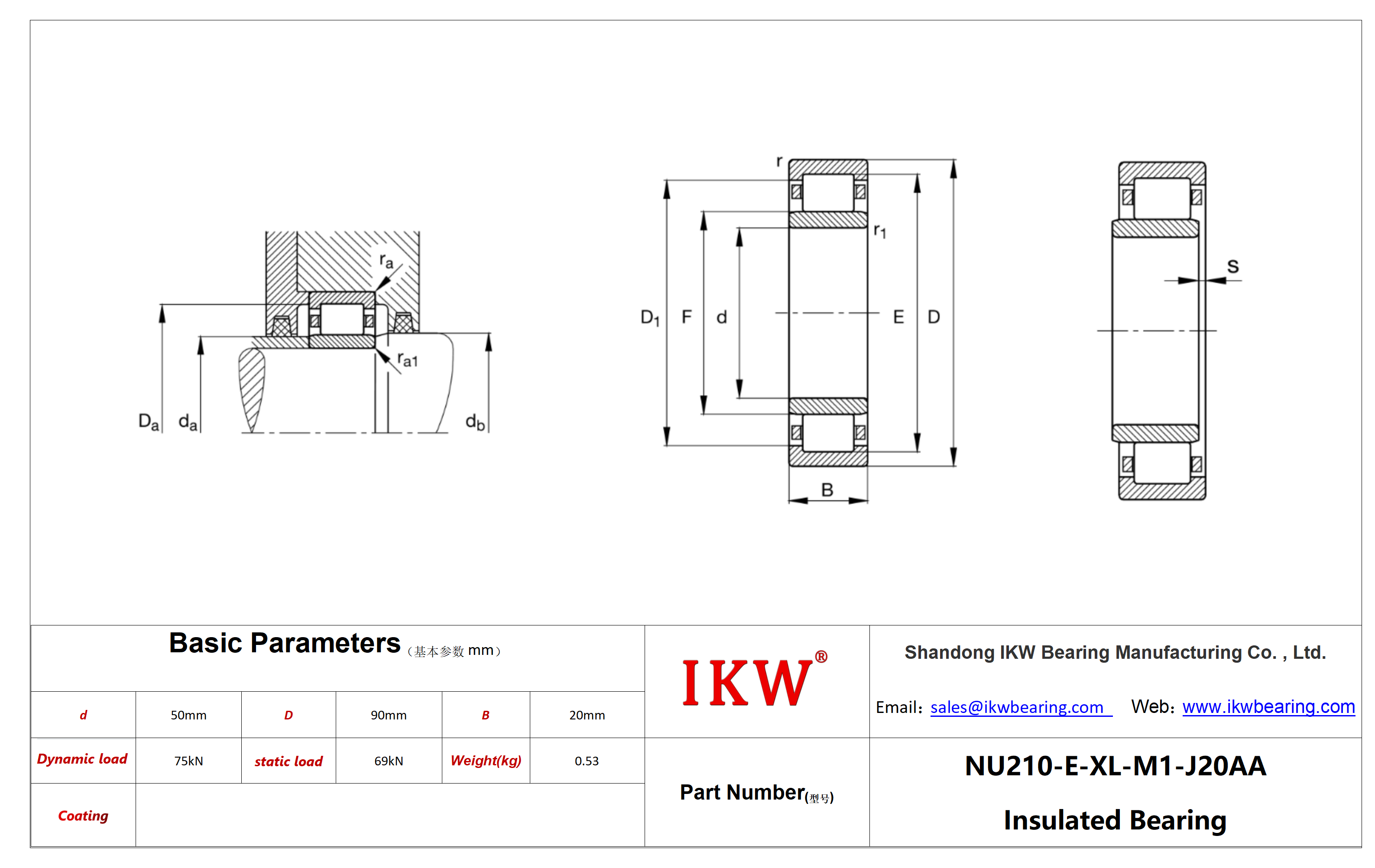

| Product Number | NU210-E-XL-M1-J20AA Bearing |
| Bore diameter(d) | 50 mm |
| Outside diameter(D) | 90 mm |
| Width(B) | 20 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 75.000 N |
| Basic static load rating(Cor) | 69.000 N |
| Radial internal clearance | CN |
| Limiting speed(nG) | 14.500 1/min |
| da min | 57 mm |
| Da max | 83 mm |
| ra max | 1 mm |
| Weight(mass) | 0,53 kg |
| rmin | 1,1 mm |
| D1 | 78,32 mm |
| Reference speed(nϑr) | 6.600 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU210-E-XL-M1-J20AA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU210.E.XL.M1.J20AA Bearing
