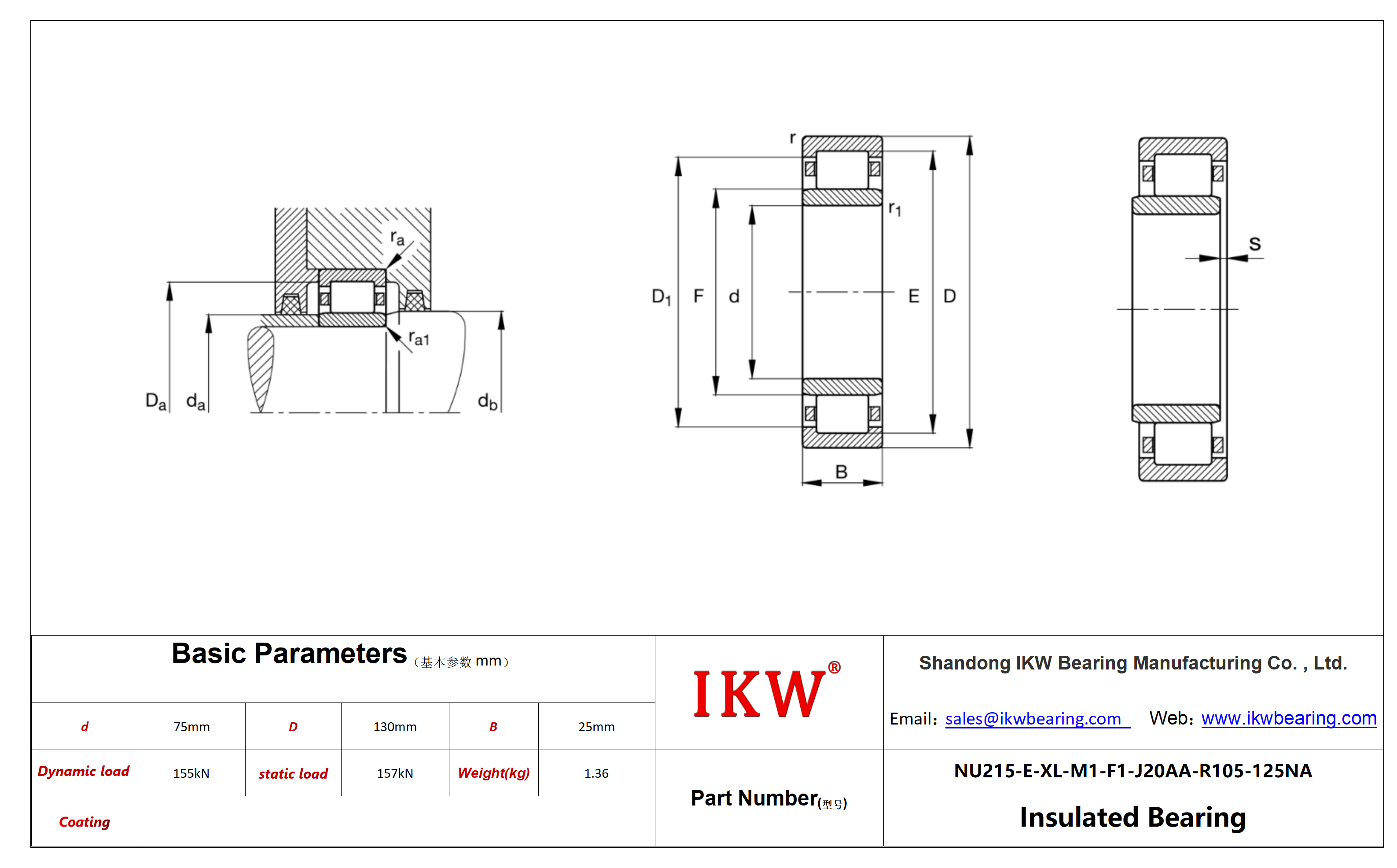

| Product Number | NU215-E-XL-M1-F1-J20AA-R105-125NA Bearing |
| Bore diameter(d) | 75 mm |
| Bore diameter(d) | 75 mm |
| Outside diameter(D) | 130 mm |
| Outside diameter(D) | 130 mm |
| Width(B) | 25 mm |
| Width(B) | 25 mm |
| Cage | M1 |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 155.000 N |
| Basic dynamic load rating(Cr) | 155.000 N |
| Basic static load rating(Cor) | 157.000 N |
| Basic static load rating(Cor) | 157.000 N |
| Limiting speed(nG) | 9.800 1/min |
| Limiting speed(nG) | 9.800 1/min |
| da min | 84 mm |
| da min | 84 mm |
| Da max | 121 mm |
| Da max | 121 mm |
| ra max | 1,5 mm |
| ra max | 1,5 mm |
| Weight(mass) | 1,36 kg |
| Weight(mass) | 1,36 kg |
| rmin | 1,5 mm |
| rmin | 1,5 mm |
| D1 | 114,36 mm |
| D1 | 114,36 mm |
| Reference speed(nϑr) | 4.400 1/min |
| Reference speed(nϑr) | 4.400 1/min |
| Tmin | -30 °C |
| Tmin | -30 °C |
| Tmax | 150 °C |
| Tmax | 150 °C |
NU215-E-XL-M1-F1-J20AA-R105-125NA Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU215.E.XL.M1.F1.J20AA.R105.125NA Bearing
