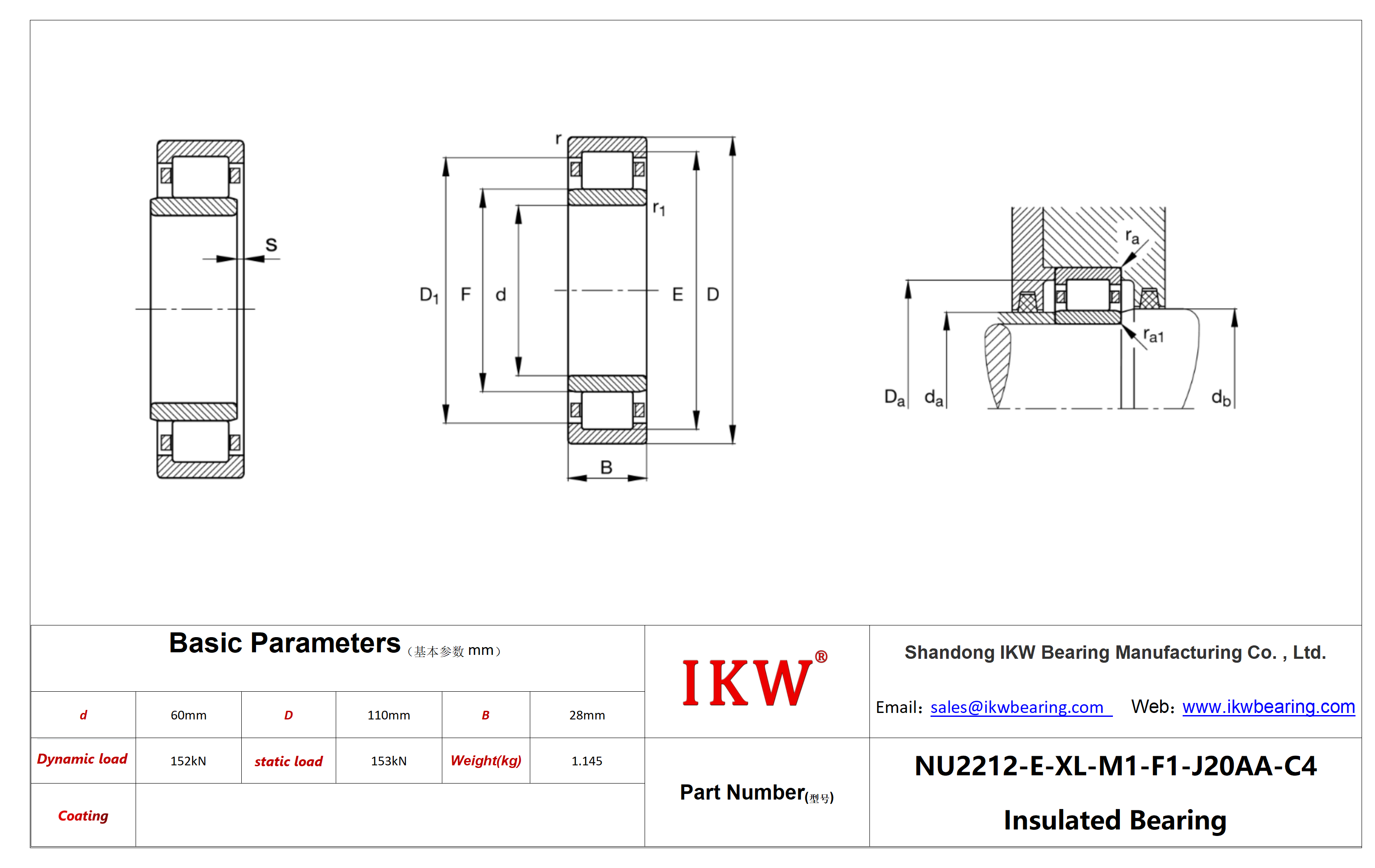

| Product Number | NU2212-E-XL-M1-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 60 mm |
| Outside diameter(D) | 110 mm |
| Width(B) | 28 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 152.000 N |
| Basic static load rating(Cor) | 153.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 11.500 1/min |
| da min | 69 mm |
| Da max | 101 mm |
| ra max | 1,5 mm |
| Weight(mass) | 1,145 kg |
| rmin | 1,5 mm |
| D1 | 96,08 mm |
| Reference speed(nϑr) | 4.300 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU2212-E-XL-M1-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU2212.E.XL.M1.F1.J20AA.C4 Bearing
