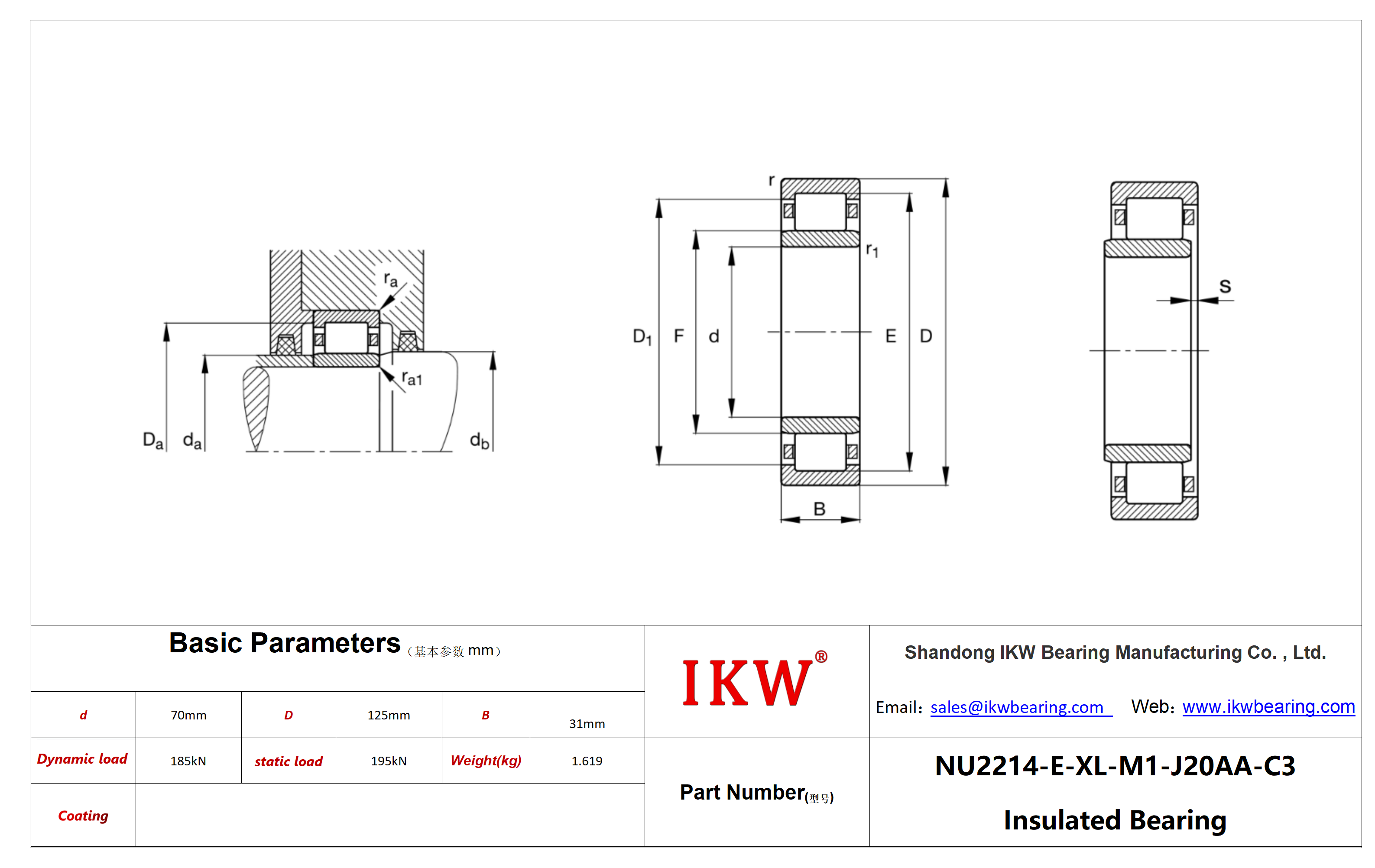

| Product Number | NU2214-E-XL-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 70 mm |
| Outside diameter(D) | 125 mm |
| Width(B) | 31 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 185.000 N |
| Basic static load rating(Cor) | 195.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 10.100 1/min |
| da min | 79 mm |
| Da max | 116 mm |
| ra max | 1,5 mm |
| Weight(mass) | 1,619 kg |
| rmin | 1,5 mm |
| D1 | 109,36 mm |
| Reference speed(nϑr) | 3.850 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU2214-E-XL-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU2214.E.XL.M1.J20AA.C3 Bearing
