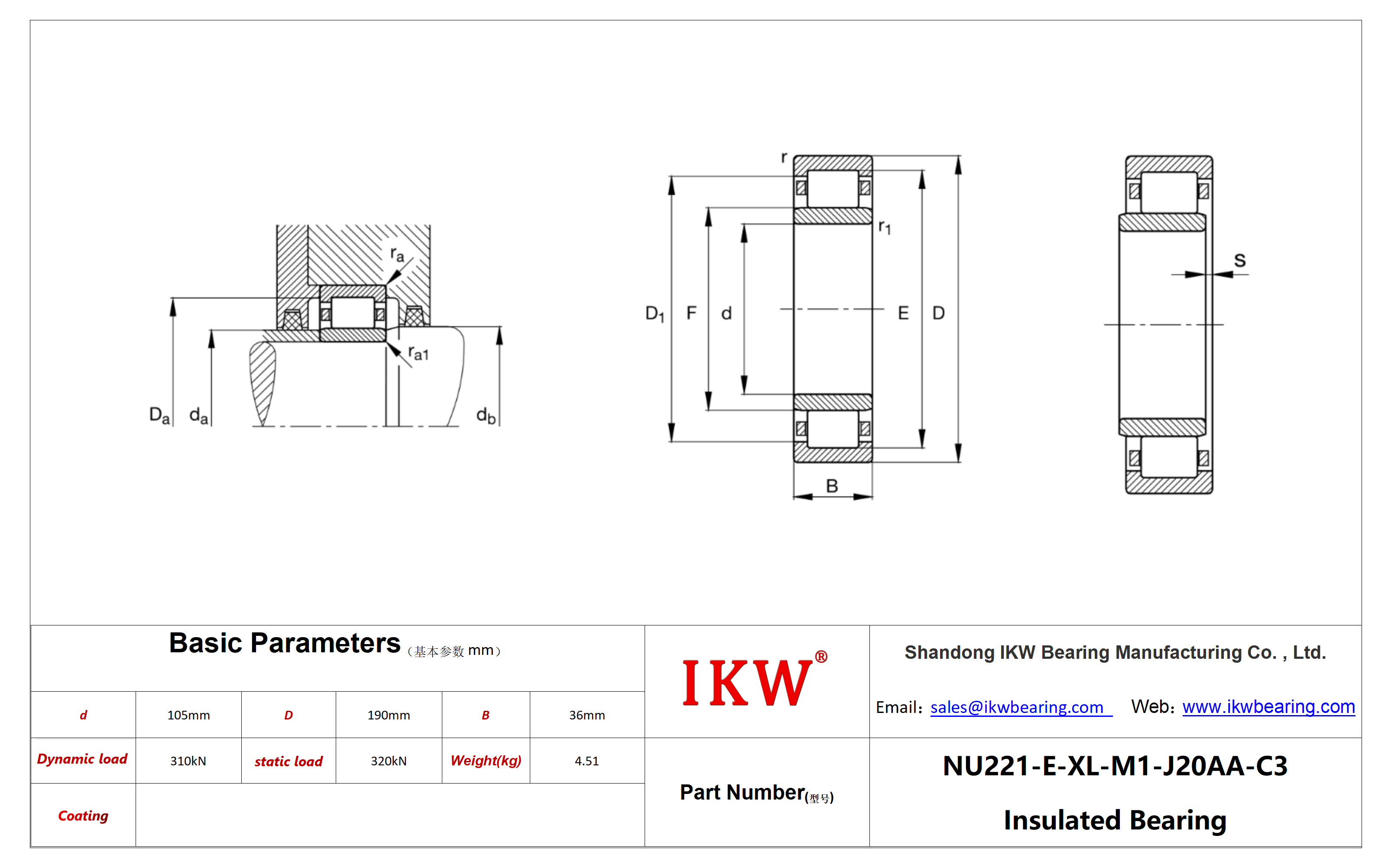

| Product Number | NU221-E-XL-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 105 mm |
| Outside diameter(D) | 190 mm |
| Width(B) | 36 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 310.000 N |
| Basic static load rating(Cor) | 320.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 6.500 1/min |
| da min | 117 mm |
| Da max | 178 mm |
| ra max | 2 mm |
| Weight(mass) | 4,51 kg |
| rmin | 2,1 mm |
| D1 | 165,12 mm |
| Reference speed(nϑr) | 3.400 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU221-E-XL-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU221.E.XL.M1.J20AA.C3 Bearing
