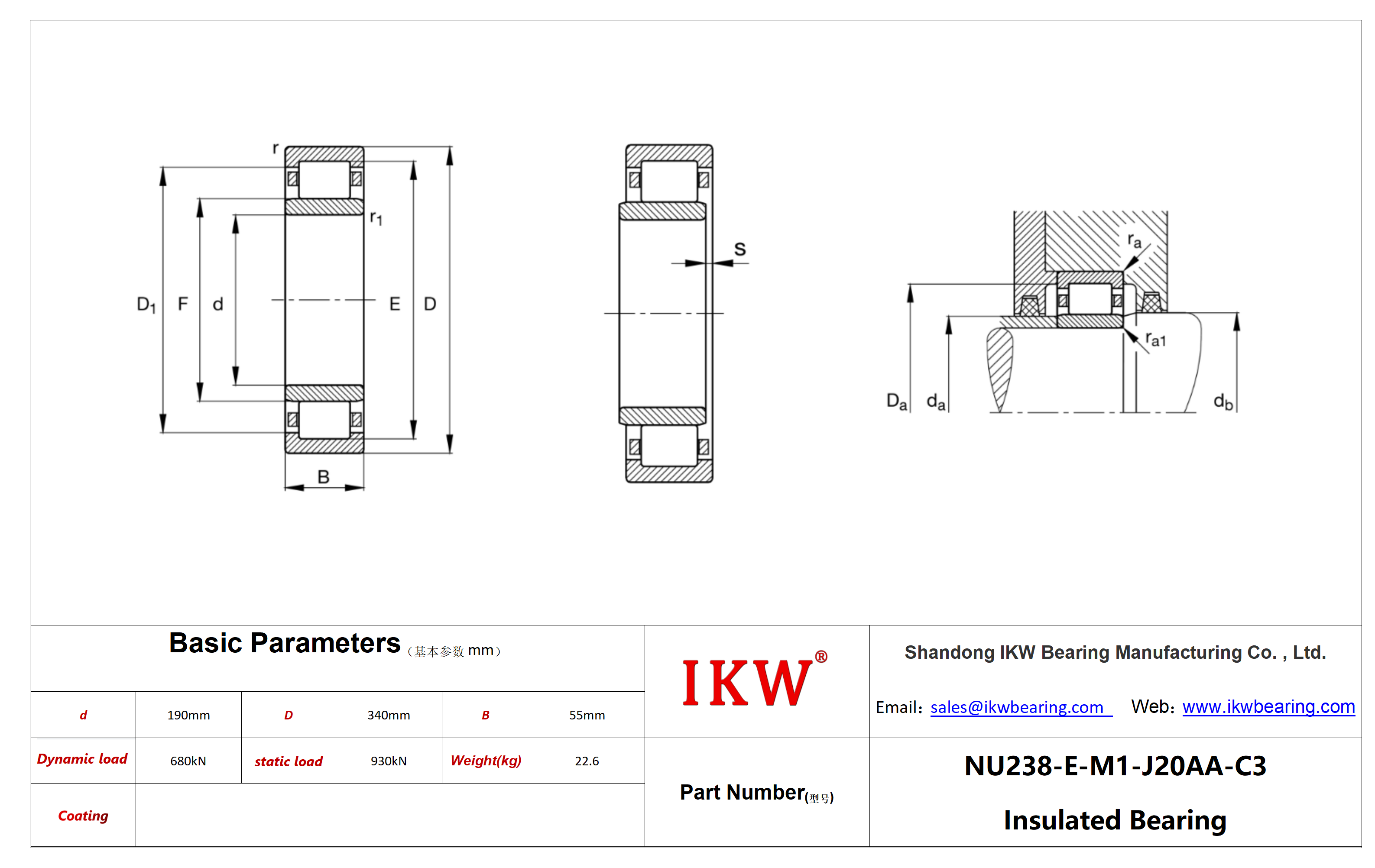

| Product Number | NU238-E-M1-J20AA-C3 Bearing |
| Bore diameter(d) | 190 mm |
| Outside diameter(D) | 340 mm |
| Width(B) | 55 mm |
| Cage | M1 |
| Basic dynamic load rating(Cr) | 680.000 N |
| Basic static load rating(Cor) | 930.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 3.050 1/min |
| da min | 207 mm |
| Da max | 323 mm |
| ra max | 3 mm |
| Weight(mass) | 22,6 kg |
| rmin | 4 mm |
| D1 | 295 mm |
| Reference speed(nϑr) | 1.720 1/min |
| Tmin | -30 °C |
| Tmax | 150 °C |
NU238-E-M1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NU238.E.M1.J20AA.C3 Bearing
