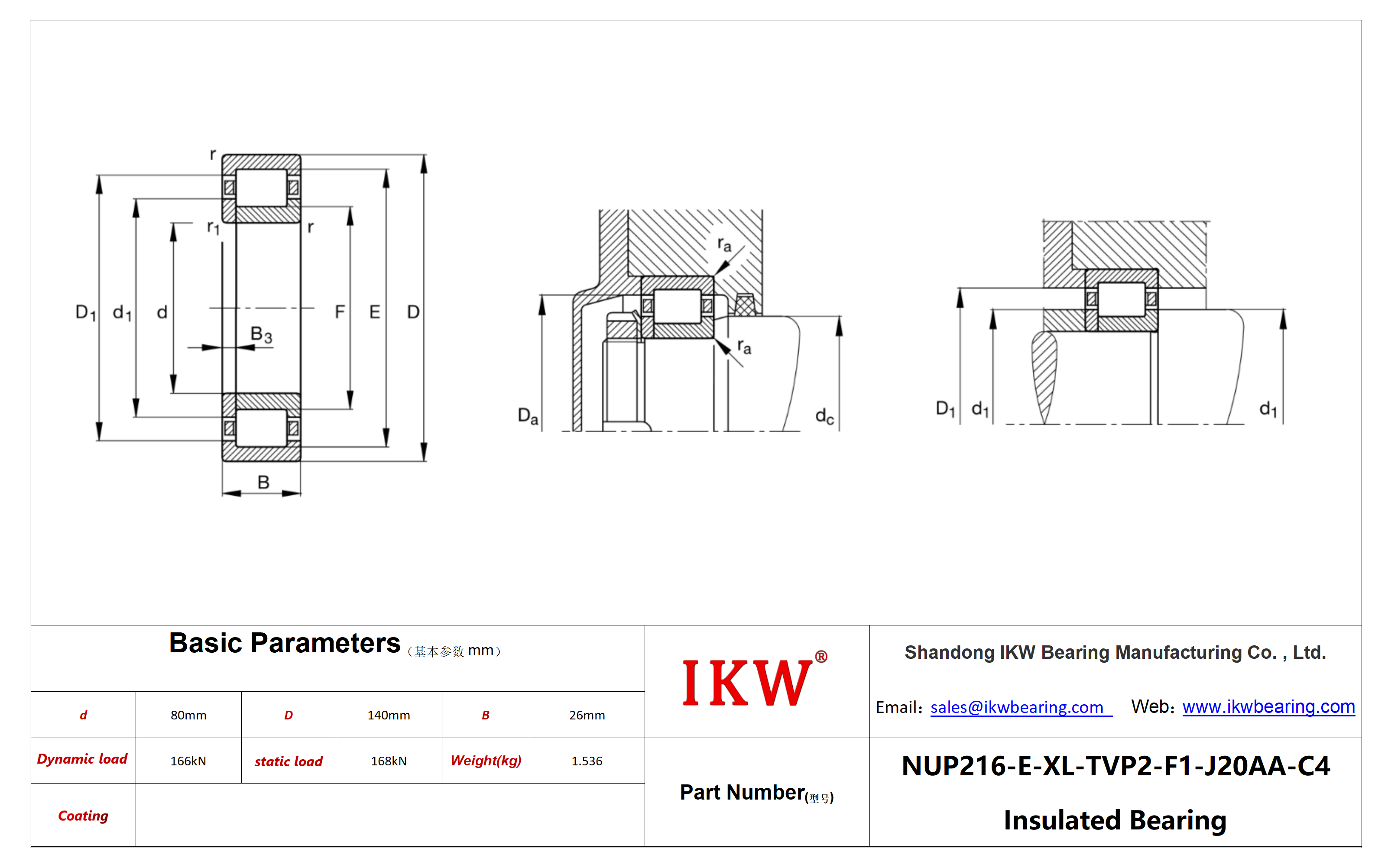

| Product Number | NUP216-E-XL-TVP2-F1-J20AA-C4 Bearing |
| Bore diameter(d) | 80 mm |
| Outside diameter(D) | 140 mm |
| Width(B) | 26 mm |
| Cage | TVP2 |
| Basic dynamic load rating(Cr) | 166.000 N |
| Basic static load rating(Cor) | 168.000 N |
| Radial internal clearance | C4 |
| Limiting speed(nG) | 7.000 1/min |
| da min | 91 mm |
| Da max | 129 mm |
| ra max | 2 mm |
| Weight(mass) | 1,536 kg |
| d1 | 101,5 mm |
| rmin | 2 mm |
| Reference speed(nϑr) | 7.000 1/min |
| Tmin | -30 °C |
| Tmax | 120 °C |
NUP216-E-XL-TVP2-F1-J20AA-C4 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NUP216.E.XL.TVP2.F1.J20AA.C4 Bearing
