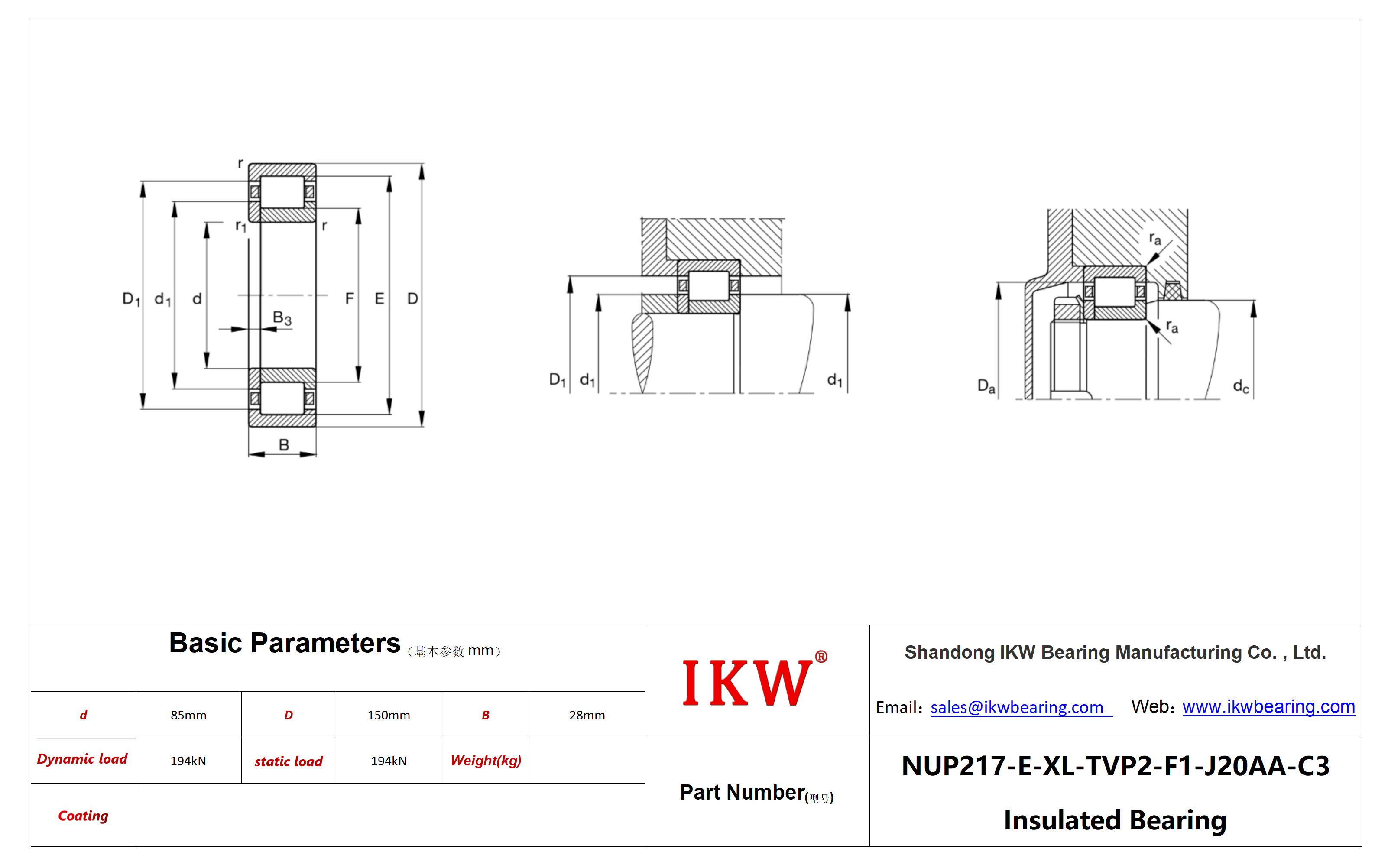

| Product Number | NUP217-E-XL-TVP2-F1-J20AA-C3 Bearing |
| Bore diameter(d) | 85 mm |
| Outside diameter(D) | 150 mm |
| Width(B) | 28 mm |
| Cage | TVP2 |
| Basic dynamic load rating(Cr) | 194.000 N |
| Basic static load rating(Cor) | 194.000 N |
| Radial internal clearance | C3 |
| Limiting speed(nG) | 6.400 1/min |
| da min | 96 mm |
| Da max | 139 mm |
| ra max | 2 mm |
| Weight(mass) | 1,905 kg |
| d1 | 107,5 mm |
| rmin | 2 mm |
| Reference speed(nϑr) | 4.000 1/min |
| Tmin | -30 °C |
| Tmax | 120 °C |
NUP217-E-XL-TVP2-F1-J20AA-C3 Bearing|Insulated Cylindrical roller bearings|Cylindrical roller bearings|Insulated bearing|current insulation bearing|NUP217.E.XL.TVP2.F1.J20AA.C3 Bearing
