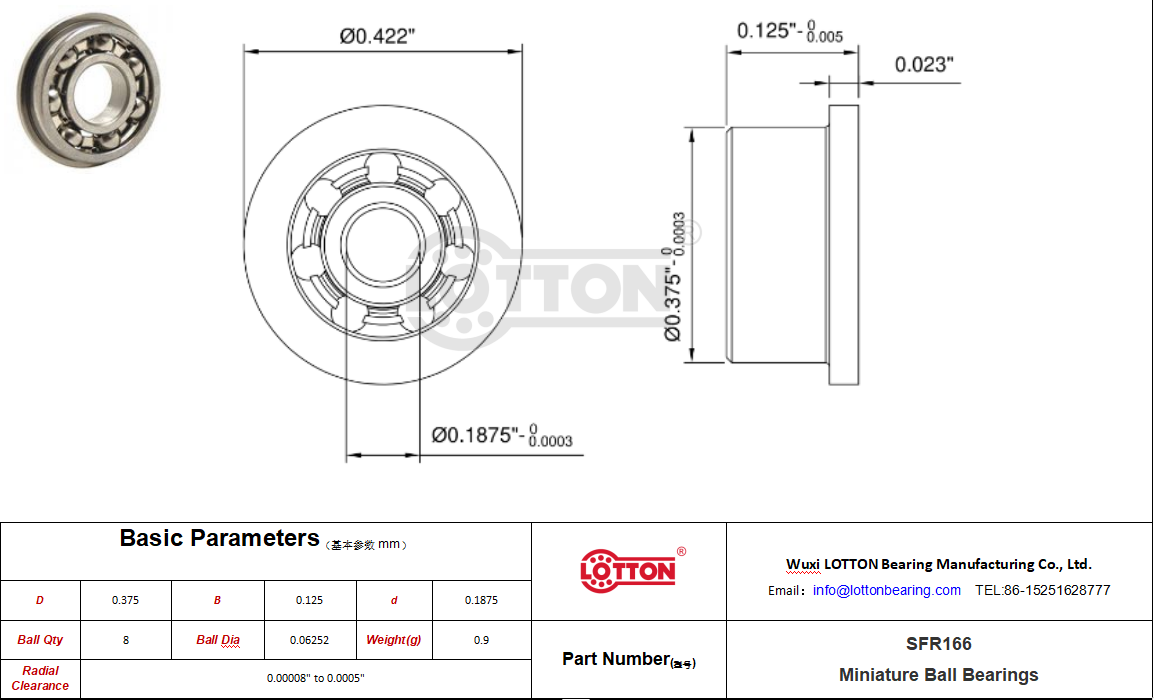

| Product Number | SFR166 Bearing |
| System of Measurement | imperial |
| Bearing Type | ball |
| For Load Direction | Radial |
| Construction | single row |
| Seal Type | open |
| Bore Dia | 0.1875" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.375" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.125" |
| Width Tolerance | -0.005" to 0" |
| Flange Outer Dia | 0.422" |
| Flange Thickness | 0.023" |
| Ring Material | 440C stainless steel |
| Ball Material | 440C stainless steel |
| Cage Material | 300 series stainless steel |
| Shield Material | |
| Dynamic Radial Load | 122 lbf |
| Static Radial Load | 44 lbf |
| Max Speed (X1000 rpm) | 45 |
| Lubrication | Lubricated |
| Shaft Mount Type | push-in |
| Temperature Range | -86 to 230°F |
| ABEC Rating | ABEC1 (ABEC3/5/7 optional) |
| Radial Clearance Trade No. | MC3 (Available in MC1/2/4/5/6) |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | conform to |
| REACH | conform to |
| Ball Dia | 0.06252" |
| Ball Qty | 8 |
| Weight | 0.9g |
| NMB | DDRIF-6632 |
| GRW | SSF4763B |
| McMaster-Carr ABEC5 | 57155K301 |
| NHBB | SSRIF-6632 |
| EZO | FR166H |
| McMaster-Carr ABEC7 | 4259T12 |
| DYNAROLL | SFR166 |
| FAG | SRF1224 |
| RMB | ULK6012X |
| MPB | S6316FC |
| LOTTON | SFR166 |
| McMaster-Carr ABEC1 | |
| BARDEN | SFR166 |
| McMaster-Carr ABEC3 |
| LOTTON | DYNAROLL | BARDEN | NMB | EZO | McMaster-Carr ABEC7 | McMaster-Carr ABEC5 | NHBB | GRW | MPB |
SFR166 | SFR166 | SFR166 | DDRIF-6632 | FR166H | 4259T12 | 57155K301 | SSRIF-6632 | SSF4763B | S6316FC |
| RMB | FAG |
| ULK6012X | SRF1224 |
